AS2047 Double Glazed Aluminium Doors & Casement Systems
AS2047 N6 Rated
Get Catalog
Precision Engineered Aluminium Architectural Door Systems
Manufactured under strict ISO 9001 protocols, our door systems incorporate structural European thermal breaks, high-performance acoustic interlayers, and multi-point security hardware designed for worldwide export.

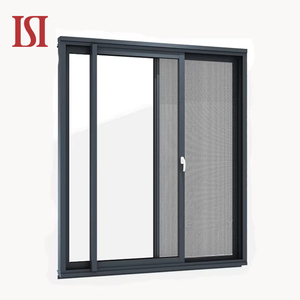

Modern Style AC100 Aluminum Alloy Frame Sliding System
Heavy Duty Track
Get Catalog

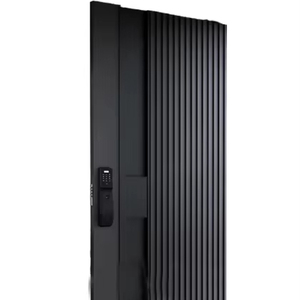

BST Modern Aluminium Anti-Theft Security Entry Doors
Multi-Lock System
Get Catalog

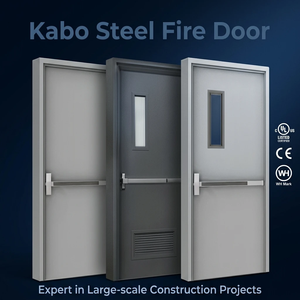

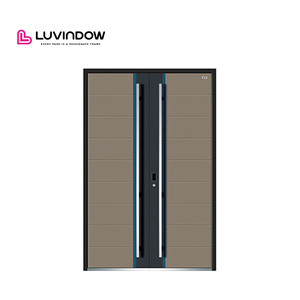

Custom Fireproof Aluminium Commercial Security Doors
Commercial Class
Get Catalog
180,000 m²
Modern Industrial Base
25+
Years Fenestration R&D
100+
Patents & Global Certs
600+
Skilled Technicians
Industry Whitepaper Analysis
Engineering Trends & Next-Generation Fenestration Procurement
Strategic analysis for facade consultants, general contractors, commercial developers, and high-volume importers navigating the 2026–2030 building envelope standards.
Evolution of Polyamide Thermal Barriers & U-Value Reductions
The global shift toward zero-energy buildings (ZEB) has fundamentally changed how CE Certified Aluminium Framed Glass Doors are engineered. Basic cold-bridge profiles are rapidly becoming obsolete in modern architectural specifications across North America and Europe.
Export-ready fenestration systems now demand multi-cavity thermal break profiles engineered with fiberglass-reinforced PA66 nylon barrier strips exceeding 24mm to 34mm in depth. Combined with triple-glazed argon or krypton-filled insulated glass units (IGUs) incorporating soft-coat Low-E layers, current overall system thermal transmittances (U-values) systematically achieve Uw ≤ 1.1 W/(m²·K). This level of insulation ensures absolute condensation resistance, structural thermal stability, and drastic carbon reductions in both residential towers and large-scale public infrastructure.
Extreme Weather Engineering: Hurricane Wind Loads & Water Tightness
With coastal urban zones encountering erratic climate cycles, specifiers are shifting baseline structural criteria from standard residential thresholds to rigorous hurricane and cyclone parameters. Doors are no longer simple entryways; they are dynamic barrier systems subjected to severe deflection tests.
Through our dedicated R&D protocols in Foshan, our aluminium profiles achieve Australian Standard AS 2047 N6 rating, denoting ultimate cyclic wind load resistance exceeding 4500 Pa to 6000 Pa. Co-extruded EPDM continuous perimeter gaskets coupled with concealed multi-chamber drainage and anti-blowback sub-sill valves ensure zero water penetration under driving rains exceeding 600 Pa dynamic pressures.
Aluminium Framed Glass Door Architectural Comparison Matrix
Comprehensive specification criteria for commercial architects, engineers, and international project builders.
| Profile Series / Typology | Alloy & Temper | Glazing System (IGU) | Air / Water / Structural Code | Recommended Applications |
|---|---|---|---|---|
| Slim-Frame Minimalist Pivot Door | 6063-T6 Architectural Billet | 10mm Tempered + 12A + 10mm Laminated | CE EN 14351-1 / AS2047 | Luxury Villa Portals, Luxury Hotels, Executive Commercial Suites |
| Heavy Duty Sliding Patio System | 6060-T66 Ultra Structural | 6mm Low-E + 16Ar + 6mm Toughened | NFRC / AS2047 Cyclonic N6 | Multi-Family Residential, Coastal Penthouses, Resort Balconies |
| Thermal Break Casement Door | 6063-T5 Multi-Cavity | 5mm + 12A + 5mm + 12A + 5mm Triple Glaze | Passive House Certified Baseline | Cold-Climate Residential (Canada/Northern US/Scandinavia) |
| Fire-Rated Glazed Entry System | Insulated Thermal Composite Core | Multi-Layer Ceramic Fireproof Glass | UL 10B/10C / BS EN 1634 | Commercial Corridors, Evacuation Stairwells, Institutional Facilities |
Procurement Forecast 2026–2030
Emerging Technologies Shaping Glass & Aluminium Procurement
Anticipate supply chain evolutions and regulatory requirements before executing your next international building envelope tender.
Electrochromic & Photovoltaic Glass
Architectural glass doors are rapidly integrating dynamic smart-tinting switchable PDLC membranes and integrated BIPV (Building-Integrated Photovoltaics), transforming entrance portals into localized clean energy harvesting surfaces that eliminate high solar heat gain without external shading louvers.
Ultra-Slim Structural Interlocks
The minimalist aesthetic trend continues to drive the reduction of vertical interlock sightlines down to 20mm. High-strength aerospace-grade aluminium alloys maintain exceptional moment of inertia (Ix), accommodating colossal glass expanses exceeding 4.5 meters in height while resisting severe wind deflection.
BIM Integration & Automated Pre-Fabrication
Modern global logistics require 100% digital fabrication accuracy. Advanced fenestration exporters now integrate direct BIM (Revit/IFC) parametric modeling with 5-axis CNC profile machining centers, ensuring precise rough-opening clearances, zero field fabrication, and rapid mechanical installation on jobsites.
Manufacturer Authority & Reliability
Why Major International Contractors Trust Guangdong Dejiyoupin Doors & Windows
Combining industrial scale with artisanal customization, we operate as the technical backbone for elite door distribution networks and commercial development firms across North America, Oceania, Southeast Asia, and Europe.
180,000 m² Consolidated Industrial Campus
Operating from Building 19, Shenke Chuangzhi Park, Shishan Town, Foshan, our full-cycle facility encompasses profile extrusion warehousing, precision CNC machining centers, specialized surface coating booths, and automated IGU glass sealing lines staffed by over 600 dedicated specialists.
Global Compliance & 100+ Patents
Our products hold CE, AS 2047, ISO 9001, and UL fire-rated certifications. With over 30 proprietary design and utility patents, our products meet or exceed the rigorous mechanical benchmarks set by legacy European brands like German Schüco.
Engineered Shop Drawings & BIM Pre-Verification
Our engineering division prepares comprehensive CAD shop drawings and 3D cross-sectional elevations before extrusion or fabrication begins. Every rough opening, sill connection, flashing detail, and anchor placement is calculated to avoid on-site delays.
Export-Grade Packaging & Ocean Logistics
Door panels and glass units are individually cushioned with high-density protective film, perimeter corner guards, water-repellent vapor wrap, and crated in fully enclosed, fumigated ISPM-15 plywood crates engineered for seamless crane or forklift handling at international ports.
Technical Q&A
Frequently Asked Questions by Global Importers & Contractors
Essential guidance addressing technical specifications, regulatory filings, quality assurance, and international shipping protocols.
What documentation confirms that your aluminium framed glass doors comply with CE and AS2047 standards?
Every export shipment is backed by accredited third-party laboratory test reports validating conformity with European Standard EN 14351-1 (Windows and Doors) and Australian Standard AS 2047. We supply official Declaration of Performance (DoP) documents, CE mark conformity labeling, structural deflection certificates (up to N6 cyclonic ratings), and glass safety compliance certificates (EN 12150 / AS 2208). Project-specific engineering calculations can also be stamped by certified structural engineers to facilitate municipal permit approvals.
How do thermally broken aluminium frames prevent condensation and energy loss in extreme climates?
Our architectural profiles feature structural polyamide (PA66 GF25) thermal isolator strips inserted between the exterior and interior extruded aluminium sections. This complete mechanical separation eliminates the natural conductive pathway of metal. When coupled with argon-filled, warm-edge spacer IGUs and Low-E glass, interior frame temperatures stay consistently close to room temperature, preventing dew point condensation formation during harsh winters (-30°C) while reducing cooling loads in hot tropical regions.
What hardware configurations and automated access control integrations are available for commercial entries?
We partner with leading global hardware manufacturers including Siegenia, Hoppe, GU, and Dormakaba, alongside our proprietary heavy-duty architectural hardware. Our systems support concealed multi-point perimeter deadbolts, heavy-duty floor-spring pivot mechanisms supporting panels up to 500kg, concealed electromagnetic locks, motorized magnetic drive sliding operators, biometric fingerprint sensors, and full integration with commercial building management systems (BMS) and smart home automation platforms.
What surface treatment options ensure long-term corrosion resistance in high-salinity coastal environments?
For coastal installations exposed to harsh marine salt-fog conditions (e.g., Florida, the Caribbean, Mediterranean, or coastal Australia), we apply Qualicoat-certified fluorocarbon (PVDF) 3-coat architectural spray finishes or deep electrolytic anodizing exceeding 20-25 microns. PVDF coatings formulated with 70% Kynar 500 resin withstand continuous UV exposure, industrial airborne acids, and ocean salt sprays without chalking, peeling, or color fading, backed by comprehensive 15-to-25-year performance warranties.
What is the standard production lead time and export crating protocol for ocean shipping?
Following final sign-off on the CAD shop drawings, production lead time typically ranges from 25 to 35 business days, depending on custom profile extrusion dies, glass complexity, and hardware specifications. All assemblies undergo rigid factory pre-assembly and functional inspection. Each unit is wrapped with PE surface films, cushioned with corner edge guards, sealed with moisture desiccant, and housed in heavy-duty, fully-enclosed solid plywood crates with integrated bottom forklift skids, ensuring safe ocean transit to North American, European, and Oceanian ports.
Ready to Engineer Your Project's Door Openings?
Connect directly with our Foshan fenestration engineering center. Receive complimentary CAD shop drawings, structural thermal calculations, and factory-direct commercial estimates.
