Featured Aluminum Ventilation Windows & Architectural Enclosures
Direct factory-tested fenestration products built to balance high condensation resistance, continuous passive ventilation, hermetic sealing, and refined modern aesthetics.

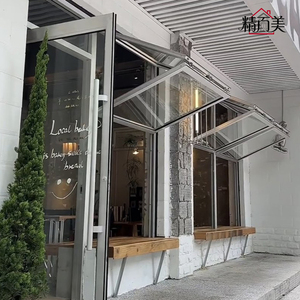

Shop Front Folding Window With Welded Aluminum Frame Glass Leaves Projecting Outward Modern Design Customized Size Wholesale
Huasin Customized Fixed Inward Aluminum Clad Wood Windows Doors Hidden Drainage Multi-Layer Protection Energy Star Qualified
EOKO CE CSA Certified Ultra Slim Aluminum Sliding Door Thermal Break 38dB Soundproof Patio Sliding Door for Mediterranean Villa

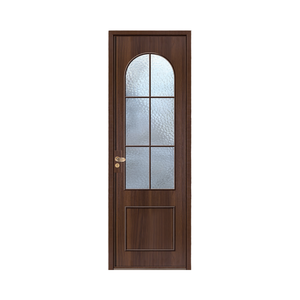

Modern Waterproof Interior Bathroom Door for Villa Bedroom and Laundry American Style Aluminium Glass Door with Customized Size
Aluminum Sliding Interior Patio Door Double Glazing Tempered Glass Balcony Door 2/3 Track Custom Size Bedroom Use Wholesale

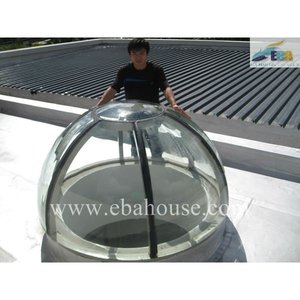

Aluminium Glass Dome Arched windows Glass Awning Window Skylight
YUDON DOOR Aluminum Glass Door Entrance with Smart Lock Anti Rust Anti Theft Fire Rated Front Doors for Houses Coastal Villas
CBMmart Wholesale Aluminum Alloy Doors Windows Exterior Dining Sliding Doors Bedroom Casement Windows Heat Insulation Waterproof
Guangdong Dejiyoupin (DERCHI) Industrial Scale & Verification
Over 25 years of engineering leadership serving North American, European, Australian, and global tier-one contractors with high-precision architectural aluminum envelope systems.
AS 2047 N6 & CE Structural Rigor
Certified to withstand extreme cyclical wind loads and high-velocity driving rain. Every ventilation sash incorporates pressure-equalized rain screen chambers tested up to Australian N6 and American AAMA performance standards.
Turnkey BIM & CAD Submittals
Eliminate site rework with free custom shop drawings, rough opening coordination, psychrometric dew point calculations, and anchor load engineering provided before fabrication release.
Time-Zone Synced Engineering
Dedicated technical sales teams align directly with North American EST/PST and European operating hours. From rapid estimating to site installation support manuals, our communication remains zero-latency.
Architectural Engineering of High-Performance Bathroom Ventilation Windows
Why high-moisture interior wet zones require specialized thermal breaks, continuous air changes, isobaric drainage channels, and anti-microbial surface metallurgy.
1. Managing Latent Heat & Psychrometric Dew Points in Wet Areas
Bathrooms, spa enclosures, and commercial shower complexes represent severe internal microclimates characterized by spikes in relative humidity (RH often exceeding 90%) and elevated temperatures. Conventional window extrusions act as thermal bridges: when warm, moisture-laden internal air meets the cold interior face of an uninsulated aluminum frame during winter cycles, moisture immediately hits the dew point. The result is rapid condensation runoff, black mold (Stachybotrys chartarum) proliferation, frame corrosion, and surrounding drywall degradation.
As an industry-leading China aluminum bathroom window manufacturer, our engineering approach integrates continuous Polyamide PA66 GF25 thermal barrier struts that isolate interior and exterior aluminum profiles. By maintaining an interior surface temperature above the psychrometric dew point, our assemblies achieve Condensation Resistance (CR) ratings exceeding 65 under NFRC testing standards, virtually eliminating frame sweating even under sustained 95% relative humidity.
2. Ventilation Typology Recommendations for Wet Enclosures
Selecting the optimal operational typology is vital to achieve required Air Changes per Hour (ACH) without compromising occupant privacy, water intrusion resistance, or space efficiency:
| Ventilation Typology | Effective Aerodynamic Area | Weather Baffling in Downpours | Acoustic & Thermal Seal | Recommended Application |
|---|---|---|---|---|
| Top-Hung Awning Sash | 45% – 65% Net Clear Opening | Exceptional (Sash projects out as rain canopy) | Compression gasket on 4 edges (STC 36+) | Luxury Master Bathrooms & Coastal Villas |
| Dual-Action Tilt & Turn | 15% (Tilt micro-vent) / 100% (Turn) | High in tilt mode; zero rain penetration | Triple EPDM perimeter seals (Passive House grade) | Cold Climate Condos & Commercial Hospitality |
| Extruded Aluminum Louver | 30% – 50% Continuous Passive | Good with chevron multi-tier blades | Low (Acoustic and thermal bypass present) | Commercial Restrooms & Mechanical Vent Shafts |
| Hopper (Bottom-Hung Inward) | 40% – 60% Upward Draft Airflow | Moderate (Requires external hood or deep reveal) | Double bulb gasket compression | Basement Bathrooms & High-Privacy Enclosures |
3. Metallurgy, Anodization Depth, and Chemical Resistance
Bathroom ventilation units face double chemical exposure: caustic cleaning surfactants, chlorine vapors, and high humidity internally, paired with UV irradiation, atmospheric pollutants, and marine salt air externally. We exclusively cast and extrude using virgin 6063-T5 / 6063-T6 billet aluminum adhering to ASTM B221 standards, avoiding re-melt scrap impurities that induce intergranular corrosion.
Surface treatments are specified for extreme environments: our Qualicoat Class 2 certified PVDF fluoropolymer finishes provide 20+ year colorfastness against high-temperature steam, while our hardcoat architectural anodizing provides a minimum 25-micron anodic layer (Class I / AAMA 611-14) delivering over 3,000 hours of continuous neutral salt-spray (ASTM B117) resistance without pitting.
Future Procurement & Technological Trends in Bathroom Fenestration
How regulatory shifts, building envelope decarbonization, smart home IoT protocols, and supply chain consolidation are redefining fenestration procurement through 2030.
Automated IoT Micro-Ventilation
The transition from manual sash operation to concealed DC 24V linear actuators synchronized with relative humidity and VOC sensors. When room humidity exceeds 65%, automated sashes tilt 12mm to exhaust saturated air via stack effect without tenant intervention, interfacing seamlessly with BACnet, KNX, or Zigbee building management systems.
Direct Factory Consolidation
Developers and general contractors increasingly bypass regional distributors to contract directly with large-scale Chinese manufacturing campuses. Consolidating bathroom ventilation windows, architectural curtain walls, entry pivot doors, and balustrades into synchronized 40ft container releases slashes procurement overhead by 28% to 42% while providing singular warranty accountability.
Net-Zero & Vacuum Glazing (VIG)
Energy codes such as ASHRAE 90.1, Title 24, and the European EPBD require unprecedented whole-window thermal values (U-factors ≤ 0.18 BTU/h·ft²·°F / 1.0 W/m²K). The integration of slim hybrid Vacuum Insulated Glass (VIG) within compact bathroom ventilation sashes eliminates bulky triple-glazing while drastically boosting the inner surface temperature to halt condensation.
Supply Chain Resilience: Quality Control at Guangdong Dejiyoupin
In global B2B procurement, failure risk is mitigated by factory traceability. At our 180,000m² Shishan Town production hub, every lot of aluminum billet undergoes spark emission spectrometry to verify 6063 alloy purity before extrusion. Corner joints are engineered with injected two-component polyurethane adhesives and precision-crimped aluminum cleats, delivering tensile shear strengths exceeding 4,500 N.
Furthermore, complete window units undergo cyclic water penetration testing in pressurized chamber mockups up to 900 Pa before sea container packing. Heavy export-grade honeycomb cardboard, corner caps, and non-fumigation plywood crates ensure zero glass distortion or surface abrasion during international maritime shipping.
Frequently Asked Technical & Sourcing Questions (FAQ)
Detailed specification, regulatory, and logistics answers for commercial specifiers, developers, and facade consultants.
Connect with Our Fenestration Engineering Team
Whether finalizing window schedules for a multi-family residential tower, luxury villa development, or commercial hospitality project, request immediate technical support, DFM analysis, and factory-direct pricing.
