High-Performance Aluminum Sliding & Specialty Enclosure Systems
Engineered with 6063-T6 virgin primary aluminum billet extrusions, polyamide PA66 GF25 thermal barriers, and heavy-duty precision stainless hardware configurations.
Florida Miami-Dade Hurricane Approved NOA Automatic Folding Windows Doors
Motorized bi-fold system designed for high-velocity hurricane zones (HVHZ). Integrated structural reinforcement and heavy-duty multi-point security hardware.

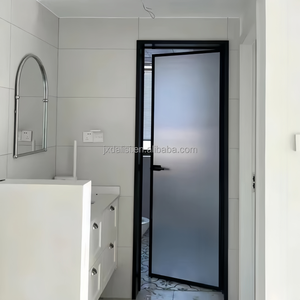

Factory Direct Modern Aluminum Alloy Moistureproof Tempered Glass Bathroom Door
Anodized, anti-corrosive architectural interior door system engineered for luxury hospitality and multi-unit residential projects requiring zero warp risk.

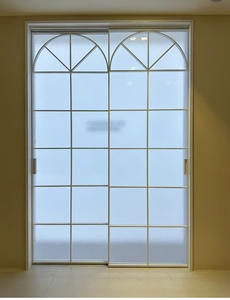

French Style Aluminum Single/Double Glazed Sliding Patio Door with Black Grids
Ultra-smooth bottom-roller sliding mechanism with architectural French profile mullions. Ideal for villa balcony garden openings and classic restoration projects.

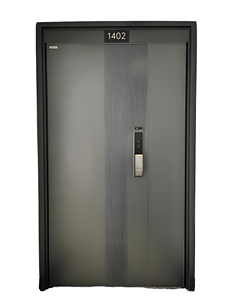

HEHAI Commercial Aluminum Alloy Fire Prevention Security Entry Door
Heavy-duty commercial fire-rated security barrier with intumescent fire seals, reinforced armored hinges, and high-tensile core infill. 5+ year warranty.
High-Durability Aluminum Alloy Fiberglass Precision Sliding Screen Doors
Tear-resistant mesh integrated into precision extruded tracks. Provides bug-proof ventilation, wind stabilization, and high UV endurance for sliding door systems.

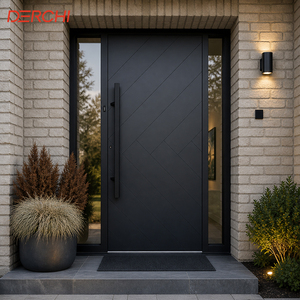

Fire Rated Aluminum Front Door Entry Exterior Security Door for Commercial Projects
Built to exceed fire integrity and structural air tightness standards. Ideal for main ingress/egress points in commercial venues, municipal facilities, and estates.
AS2208 Large Size Custom German Aluminum Hurricane Impact Double Glazed Picture Windows
Ultra-wide panoramic structural corner window units engineered for severe coastal storms, featuring multi-layer laminated PVB/SentryGlas glass and deep frame anchoring.
Waterproof Finished French Design Bathroom Toilet Door with Frosted Privacy Glass
Compact luxury interior door system delivering watertight rubber gasket seals, acid-etched obscure privacy glass, and sound reduction for hospitality spaces.
Guangdong Dejiyoupin Doors & Windows Co., Ltd. (DERCHI)
As one of China's premier architectural fenestration manufacturers headquartered in Shishan Town, Nanhai District, Foshan, DERCHI operates an expansive 180,000-square-meter modern production facility. We bridge European precision engineering standards with China's manufacturing agility.
For more than 25 years, our engineering departments have designed, fabricated, and exported mission-critical aluminum sliding doors, multi-slide patio systems, impact windows, pivot entry systems, and fire-resistant barrier doors to over 60 countries across the United States, Canada, Australia, the UK, and the Middle East.
Direct Engineering Shop Drawings
Free comprehensive CAD shop drawings, BIM families, and structural wind-load calculations tailored to your rough architectural openings.
Rigorous Quality Testing
Fully compliant with CE, ISO 9001, AS 2047 (N6 Cyclone Rating), and UL fire-rated standards. Strict in-line laser dimension checks.
Export-Grade Sea Crating
Heavy-duty fumigated wooden crates, corner armor protectors, moisture desiccants, and vacuum plastic wrap for safe containerized transport.
Dedicated Project Management
Dedicated English-speaking technical sales engineers responsive to North American, European, and Australian time zones.
One-Stop Enclosure Consolidation
Procure sliding doors, casement windows, structural curtain walls, and fire entrance doors in a single consolidated ocean container.
Code-Verified Laboratory Tests
Every fenestration series undergoes air infiltration (ASTM E283), water penetration (ASTM E331), and structural wind load (ASTM E330) verification.
Custom Dimensional Engineering
Support for oversized spans up to 6000mm width, motorized pocket sliding configurations, and custom thermal U-factor tuning.
Turnkey Freight Coordination
FOB, CIF, and DDP shipping solutions with complete customs documentation, ISPM 15 timber stamps, and jobsite unloading guidance.
Structural & Technological Trends in Aluminum Sliding Fenestration
A technical analysis of how metallurgical advances, composite thermal breaks, and minimal frame profiles are transforming global architectural facades.
1. Polyamide PA66 GF25 Multi-Chamber Breaks
Traditional uninsulated aluminum suffers from high thermal conductivity (approx. 200 W/m·K). Leading modern suppliers utilize multi-cavity, 25% glass-fiber reinforced polyamide thermal break strips (Technoform standard).
- Overall system U-values lowered below 1.4 W/m²·K (Passive House performance).
- Elimination of internal condensation in extreme Northern climates (US Zone 5-7, Canada).
- Triple EPDM continuous co-extruded center sponge gaskets for air barrier integrity.
2. Ultra-Slim Sightlines & Concealed Sashes
Architects worldwide demand maximum glass-to-frame ratios. The fenestration industry has moved rapidly from bulky 100mm face profiles toward 20mm-25mm minimalist interlocking vertical stiles.
- Concealed outer frame installation buried flush inside perimeter drywalls and ceilings.
- Zero-threshold floor track detailing with integrated sub-sill high-flow drain channels.
- Heavy structural glass bonding (structural silicone glaze) transferring dead loads.
3. Extreme Cyclone & Blast Impact Engineering
Climate unpredictability has elevated windstorm engineering from a localized concern to a global baseline requirement for oceanfront properties and high-rise residences.
- Miami-Dade NOA TAS 201 (large missile impact) and TAS 202/203 cyclic pressure tests.
- SentryGlas (SG) and 1.52mm PVB interlayer integration for shatter containment.
- Tested to Australia AS 2047 N6 cyclonic standards (wind pressure exceeding 4500 Pa).
| Performance Vector | Standard Sliding System | High-End Thermal Break Lift-and-Slide | Hurricane NOA Impact Sliding System |
|---|---|---|---|
| Alloy Specification | 6063-T5 (Wall thickness 1.4mm - 1.6mm) | 6063-T6 Architectural (Thickness 2.0mm - 3.0mm) | Reinforced 6063-T6 + Steel Liner Cavity |
| Thermal Transmittance (U-Value) | U > 3.8 W/m²·K (Draft susceptible) | U = 1.3 - 1.8 W/m²·K (Argon + Warm Edge) | U = 1.6 - 2.1 W/m²·K (Depending on Interlayer) |
| Air Infiltration (ASTM E283) | Level 2 (≤ 1.5 m³/m²·h) | Level 4 (≤ 0.5 m³/m²·h - Hermetic seal) | High-tightness continuous vulcanized EPDM |
| Water Tightness (ASTM E331) | 250 Pa - 350 Pa static pressure | 600 Pa - 900 Pa stepped drainage threshold | 1050 Pa+ severe storm wave resistance |
| Max Single Sash Weight | Up to 150 kg | Up to 400 kg (Effortless finger-glide) | Up to 600 kg with motorized transmission |
Future Procurement Trends in China Aluminum Fenestration (2025–2030)
How real estate developers, contractors, and national window dealers are optimizing procurement channels to mitigate tariffs, enhance ESG compliance, and shorten lead times.
Direct-to-Factory Engineering Collaboration
Global general contractors are increasingly bypassing domestic middlemen and import trading houses. By interfacing directly with large manufacturers like DERCHI, developers gain:
- 30% to 45% material cost savings without sacrificing hardware quality.
- Direct access to structural fenestration R&D engineers for BIM / Revit modelling.
- Real-time factory video verification and milestone tracking during production.
Pre-Glazed Factory Assemblies vs. Knock-Down
Due to surging jobsite labor costs across North America and Europe, procurement preference has firmly pivoted from knocked-down (KD) frames to fully pre-glazed, factory-tested unitized systems:
- Automated cleanroom robotic structural silicone application guarantees 10-year seal life.
- Reduces on-site installation time by up to 60%, drastically cutting labor overhead.
- Custom steel-reinforced A-frames ensure zero glass deflection during transit.
Decarbonized Billets & Traceable ESG Standards
Global green building rating schemes (LEED v4.1, BREEAM) now mandate third-party Environmental Product Declarations (EPD) and embodied carbon tracking for building envelopes:
- Shift toward low-carbon aluminum smelted with renewable hydro or solar energy.
- VOC-free, chrome-free powder coating certified to AAMA 2604/2605 and Qualicoat Class 2.
- Full documentation of recycled billet scrap content (≥ 25% post-consumer aluminum).
Frequently Asked Questions by Commercial Buyers & Importers
Everything you need to know about structural testing, thermal performance, container packaging, and customs logistics when sourcing doors and windows from China.
How do Chinese aluminum extrusion alloys compare to European and American standards?
Can you manufacture doors and windows to North American imperial dimensions and schedules?
How are the products certified for local building inspections in the USA, Canada, and Australia?
- North America: NFRC thermal performance ratings, Florida Miami-Dade County NOA TAS 201/202/203 large missile impact approval, and UL fire-rated certifications.
- Australia / New Zealand: AS 2047 fenestration compliance with extreme cyclonic N6 wind load verification and AS 2208 safety glazing certificates.
- Europe: Full CE mark conformity, EN 14351-1 declarations of performance, and ISO 9001 factory production control audits.
What surface finishes are available to resist coastal marine salt spray corrosion?
What is the standard production lead time and how are shipments packaged to prevent transit damage?
Can you provide factory-level VR or physical third-party factory inspection audits?
Initiate Your Commercial or Residential Window Schedule
Send our architectural engineering department your door schedules, CAD plans, or project specifications. Receive free shop drawings, certified wind-load calculations, and factory-direct wholesale pricing within 24 business hours.
