Featured Architectural Aluminum Window & Door Systems
Each system represents rigorous extrusion accuracy, thermal separation technology, and high-performance structural glazing engineered to integrate seamlessly into picture window framing and mixed-facade elevations.

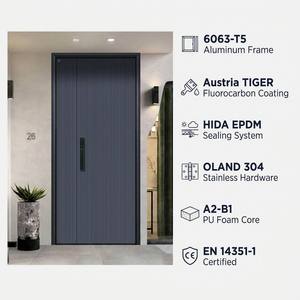

3mm All-Aluminum Minimalist Doors, Custom Size, Style & Color Contemporary Decor Door Minimalist Aluminum Door
- Ultra-slim sightline 3mm profile
- Custom architectural anodized finish

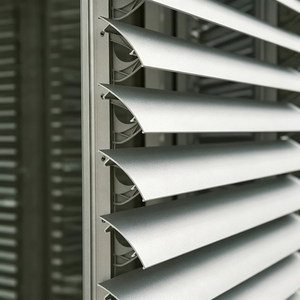

China Supplier OEM ODM Factory Price Modern Aluminum Extrusion Profile Window Door Custom Aluminum Door Window Villa Outdoor
- 6063-T5 / 6063-T6 virgin alloys
- Custom engineered die extrusions
Standard French Swing Casement Window Aluminum Double Pane Tempered Stainless Steel Screen Soundproof Energy Star Qualified
- Acoustic double pane insulated glass
- High STC sound transmission class

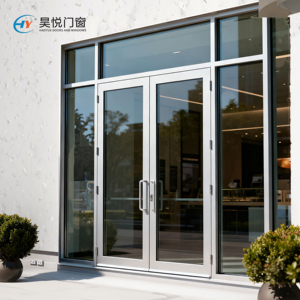

High Quality Factory Price Customized Double Aluminum Alloy Glass Door French Doors Aluminum Casement Door French Entrance Door
- Multi-point security locking deadbolts
- High structural rigidity for grand entries

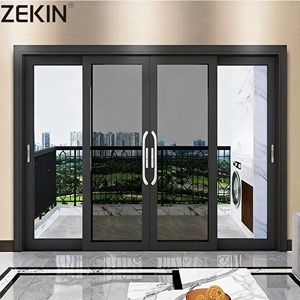

As2047 NFRC Certification Double Glass Stacker Doors Commercial Exterior Patio Panoramic Aluminum Sliding Doors with Mesh
- AS2047 cyclonic compliance certified
- Smooth bottom-rolling track carriage
Modern Aluminum Alloy Sliding Glass Door Interior Room Sliding Door
- Recessed low-profile flush threshold
- Acoustically insulated tempered glass

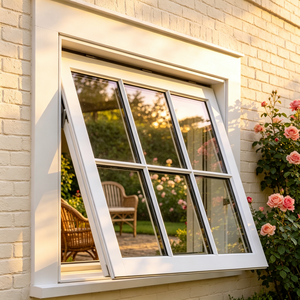

Window Aluminum Glass Slim Bevel Top Hung Modern Facade Anthracite Powder Coated Frame Windows
- Slim beveled weather-deflecting frame
- Qualicoat Class 2 powder coating
Folding Windows for Terrace Renovation Contractors Aluminum Glass Bi-fold Soundproof Balcony System
- Heavy-duty stainless steel hinge links
- Maximized unobstructed panoramic vision
Engineering Principles of Architectural Aluminum Fixed Windows
Unlike operable casements or sliding units, non-venting picture and fixed architectural glass windows function as integral structural diaphragms within building building envelopes. Designing an uncompromised OEM/ODM fixed window system requires precision balance across structural load calculations, glass deflection, thermal conductivity, and dynamic air/water tight barriers.
Alloy Metallurgy & Section Modulus
DERCHI extrudes high-purity 6063-T5 and structural-grade 6061-T6 virgin aluminum billets. For oversized picture windows spanning up to 4500mm high, internal reinforcement ribs and heavy moment of inertia (Ix & Iy) values ensure wall-deflection limits remain strictly within L/175 under 3500 Pa extreme wind-load pressures.
- Wall thickness: 1.6mm to 3.2mm architectural profile walls
- Tensile strength: Rm ≥ 215 MPa with superior yield ratio
- Corner joining: Heavy pneumatic corner cleat crimping with 2-part epoxy
Polyamide Thermal Barrier Technology
To eliminate interior condensation and reduce overall building cooling and heating loads, our fixed windows utilize multi-cavity PA66-GF25 (25% glass fiber reinforced polyamide) thermal break strips. This physical mechanical isolation disconnects exterior ambient thermal extremes from conditioned interior environments.
- Thermal break depth: 24mm to 35mm multi-chamber barriers
- Overall assembly U-value: Down to 0.18 BTU/hr·ft²·°F (1.02 W/m²·K)
- Condensation Resistance Factor (CRF): Rated > 72
Acoustic Attenuation & IGU Glazing
Fixed glass windows command the largest surface area in modern envelope facades. We configure custom Insulated Glass Units (IGU) incorporating triple-pane Low-E coatings, argon or krypton inert gas fills, warm-edge stainless steel spacers, and acoustic PVB or SentryGlas® laminated interlayer plies.
- Sound Transmission Class (STC): High ratings up to STC 45 dB
- Solar Heat Gain Coefficient (SHGC): Tunable between 0.22 and 0.45
- Glazing pocket capacity: Accommodates dual & triple IGUs up to 52mm
| Performance Criterion | Commercial Grade (AAMA/CW) | DERCHI Architectural Fixed Glass Standard | Compliance Test Benchmark |
|---|---|---|---|
| Structural Wind Load (N6) | 1500 Pa (Residential) / 2400 Pa (CW) | Tested up to 4500 Pa (Cyclone Rated) | ASTM E330 / AS 2047 N6 Certified |
| Water Penetration Resistance | 300 Pa to 450 Pa | Zero leakage up to 750 Pa (Static & Cyclic) | ASTM E331 / AS 4420.5 Cyclic Water Head |
| Air Infiltration Rate | < 0.30 cfm/ft² @ 75 Pa | < 0.04 cfm/ft² (Exceeds Passive House goals) | ASTM E283 / EN 12207 Class 4 |
| Thermal Transmittance (U-Factor) | U: 0.32 - 0.40 BTU/(hr·ft²·°F) | U: 0.16 - 0.24 (Warm-edge + Triple Low-E) | NFRC 100/200 / ISO 10077-2 / CE Standards |
| Surface Finish Resilience | AAMA 2603 standard paint | AAMA 2605 Fluoropolymer PVDF (20-Yr Warranty) | Qualicoat Class 2 / 4000-hr Salt Spray Test |
Why Top Global Builders & Distributors Partner with DERCHI
Operating under Guangdong Dejiyoupin Doors and Windows Co., Ltd., DERCHI stands as a Top 10 Chinese fenestration manufacturer with over a quarter-century of advanced manufacturing expertise, serving custom commercial and residential developments across the United States, Canada, Australia, and the Middle East.
180,000 m² Mega Industrial Base
Our expansive smart manufacturing complex houses automated CNC multi-axis extrusion machining centers, robotic precision corner crimpers, and dust-free automated IGU sealing lines ensuring continuous high-capacity output and tight dimensional tolerances within ±0.5mm.
100+ Global Certifications & Patents
Engineered to satisfy demanding regional building codes. Our window and door systems hold CE, ISO 9001, AS 2047 (N6 cyclonic rated), NFRC energy certifications, and UL fire-rated standards, accompanied by more than 30 dedicated utility and design patents.
25+ Years of Engineering Provenance
For more than two and a half decades, we have bridged the gap between architectural concept design and jobsite installation. Our senior engineering staff evaluates structural wind loads, seismic movements, and thermal expansion dynamics for every custom order.
Free BIM & CAD Shop Drawings
Eliminate project ambiguity before production begins. For every tender, contract, or rough opening schedule, our technical design department provides complimentary, fully dimensioned CAD elevations, glass schedules, and structural anchoring detail sets.
Heavy-Duty Ocean Freight Crating
Overseas transit security is paramount. Fixed architectural glass and aluminum frames are packaged with protective anti-scratch films, high-density edge bumpers, desiccant air bags, and encapsulated in reinforced fumigated solid-plywood steel-strapped crates.
Direct North American Support
Bilingual architectural project managers operate synchronously with Eastern and Pacific standard business hours. Receive immediate technical consultations, responsive BOM updates, and end-to-end import document coordination directly with your freight forwarder.
Future Procurement Trends in Architectural Fixed Windows
As stringent energy conservation standards like ASHRAE 90.1, Title 24, and the International Energy Conservation Code (IECC) take hold globally, the role of fixed picture windows is evolving from a mere decorative element into an active energy-regulating building envelope.
1. Zero-Carbon & Vacuum Insulated Glass (VIG)
The fenestration sector is moving toward Vacuum Insulated Glass (VIG) assemblies integrated within slim aluminum fixed frames. By replacing traditional inert gas chambers with a microscopic thermal vacuum gap, 8.3mm VIG units match the center-of-glass insulation values of thick triple-pane glazing (U-values below 0.10 BTU/hr·ft²·°F), slashing overall dead-load weight by 60%.
2. Floor-to-Ceiling Structural Glass Walls
Architects increasingly demand minimalist, flush-perimeter fixed glass windows where the frame is concealed inside surrounding ceiling drywall and perimeter stone reveals. Known as "pocket-glazed" or "frameless" fixed picture walls, these configurations deliver 98% uninterrupted clear view ratios while sustaining severe building deflection tolerances.
3. Complete Unitized Prefabrication vs. Stick Built
High on-site labor rates across North America, the UK, and Australasia are driving a decisive shift toward 100% factory-glazed, unitized window frames. Field-installing fragile monolithic glass sheets is being replaced by pre-glazed fixed window panels delivered in sequence, complete with perimeter flashings and factory-cured silicone seals.
Frequently Asked Questions by Global Specifiers & Buyers
Addressing technical compliance, custom sizing, containerized logistics, and warranty standards for overseas commercial and luxury residential window procurement.
Launch Your OEM/ODM Architectural Window Project
Send your project blueprints, window schedules, or rough opening elevations to our engineering team. We will generate precision CAD shop drawings, structural wind-load analysis, and direct factory-tiered pricing within 24 hours.
