Engineered Aluminum Systems for Saudi Arabian Developments
Precision-milled structural aluminium systems built to perform under intense UV radiation, frequent sandstorms, and extreme ambient temperature differentials.
Saudi Building Code (SBC) & Thermal Envelope Compliance
Deploying fenestration solutions across the Kingdom of Saudi Arabia requires structural engineering tailored to climatic extremities. Under the Saudi Building Code (specifically SBC 601 and SBC 602 for energy conservation), exterior fenestration must severely limit solar heat gain and air leakage. The daytime solar irradiance experienced in Riyadh, the extreme ambient humidity along the Jeddah and Dammam coasts, and the shifting thermal cycles of the desert interior produce thermal stress that causes subpar window assemblies to fail rapidly.
Our engineered aluminum shed windows utilize high-purity 6063-T5 and 6063-T6 architectural grade aluminum extrusions, augmented by structurally reinforced polyamide (PA66 GF25) thermal break strips. This architectural configuration disrupts the direct conduction of external convective heat, preventing thermal bridge transfer into air-conditioned industrial envelopes, agricultural sheds, pre-engineered steel buildings (PEBs), and logistics facilities.
Furthermore, each fenestration module exported to Saudi Arabia integrates co-extruded EPDM weatherstripping gaskets. Unlike standard PVC seals which turn brittle, oxidize, and shrink under sustained 50°C+ ambient temperatures and UV radiation, our EPDM rubber compounds retain mechanical elasticity over decades, preventing fine sand particles (particulate matter PM10 and PM2.5) from penetrating track mechanics during high-velocity desert sandstorms.
Deployment Matrix Across Saudi Arabia's Industrial Ecosystem
Precision configurations optimized for the specialized operating conditions of industrial hubs, gigaprojects, and agricultural operations across the Kingdom.
| Application Environment | Primary Climatic Stress | Recommended Specification | Key Engineering Feature |
|---|---|---|---|
| Giga-Project Logistics Hubs (NEOM / Red Sea) | Salt air corrosion, extreme maritime UV, windblown sand | Qualicoat Class 2 Anodized / Powder Coated 6063-T6 Casement | Marine-grade corrosion inhibitor, multi-point compression locks |
| Industrial Complexes (Jubail & Yanbu) | Chemical vapor presence, high particulate load, extreme heat | Heavy-Duty Fixed & Top-Hung Multi-Chamber Awning Windows | Acoustic & thermal dampening, chemical-resistant PVDF finishes |
| Controlled Agricultural Greenhouses & Sheds (Al-Qassim) | Thermal gain, condensation risk, diurnal temperature drops | Thermally Broken Double Low-E Argon-Filled Gliding Windows | U-Value ≤ 1.6 W/m²K, condensation drainage canalization |

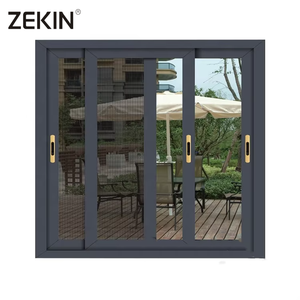

| Distribution Centers & Warehouses (Riyadh Dry Port) | Severe haboobs (sandstorms), structural racking vibration | ZEKIN Sliding multi-chamber track with perimeter nylon brushes | Anti-derail structural brackets, fine-dust hermetic barriers |
The Evolution of Industrial Fenestration in Saudi Arabia: Vision 2030
The industrial landscape of Saudi Arabia is experiencing a massive transformation driven by Saudi Vision 2030 and the National Industrial Development and Logistics Program (NIDLP). As hundreds of millions of square meters of warehousing, manufacturing parks, and worker living modules are constructed across King Salman Energy Park (SPARK), NEOM, and Riyadh's New Industrial Cities, procurement models are pivoting from short-term cost minimization toward long-term lifecycle performance.
Mostadam & Energy Standards
Mandatory compliance with the Mostadam Green Building rating system demands fenestration with low Solar Heat Gain Coefficients (SHGC ≤ 0.25), reducing operational HVAC chiller energy consumption by up to 32% in steel frame structures.
Modular & Pre-Engineered Buildings
The boom in fast-track modular construction requires mill-to-jobsite prefabricated shed windows that fit seamlessly into insulated polyurethane (PU) and polyisocyanurate (PIR) sandwich wall panels without on-site field customization.
Extreme Wind Load Resistance
Desert storms generate localized wind shear exceeding 1.8 kPa. Modern architectural engineering requires AS2047 N6 and ASTM E330 structural deflection certifications to ensure window glass doesn't shatter under sudden pressure drops.
Enterprise Manufacturing Power & Gulf Export Capabilities
Direct supply from Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) — delivering structural durability, verified engineering, and dedicated project support.
180,000 m² Automated Infrastructure
Operating high-speed CNC profile extrusion centers, automated thermal barrier insertion lines, and computerized insulated glass unit (IGU) assembly lines guaranteeing sub-millimeter tolerances on mass-volume orders.
Complete SASO & Saber Certification
Full support for Saudi Product Safety Program (SALEEM). We supply complete technical compliance dossiers, test reports, and factory quality auditing papers required for seamless Saber clearance into Jeddah Islamic Port and King Abdulaziz Port in Dammam.
Heavy-Duty Sea Freight Crating
Industrial windows are packed in fumigated, moisture-sealed solid plywood crates reinforced with steel band strapping and desiccant bags, ensuring that glass surfaces, powder coatings, and mechanical operators arrive without scratching or oxidation.
Frequently Asked Questions by Saudi Contractors & Specifiers
Direct answers addressing procurement, customs, thermal engineering, and on-site integration across Saudi Arabia.
Are your aluminum shed windows compliant with SASO and the Saudi Building Code (SBC)?
How do your window profiles perform under extreme desert sandstorms (haboobs)?
What surface treatments are recommended for installations in coastal regions like Jeddah, Yanbu, or Dammam?
Can you manufacture custom dimensions tailored to continuous sandwich panel wall systems?
What is your production lead time and ocean transit schedule to Saudi Arabian ports?
Request a Project Consultation & Custom Quote
Connect with our senior fenestration engineers to receive free CAD shop drawings, SASO compliance data, and direct factory pricing for your upcoming project in the Kingdom of Saudi Arabia.
