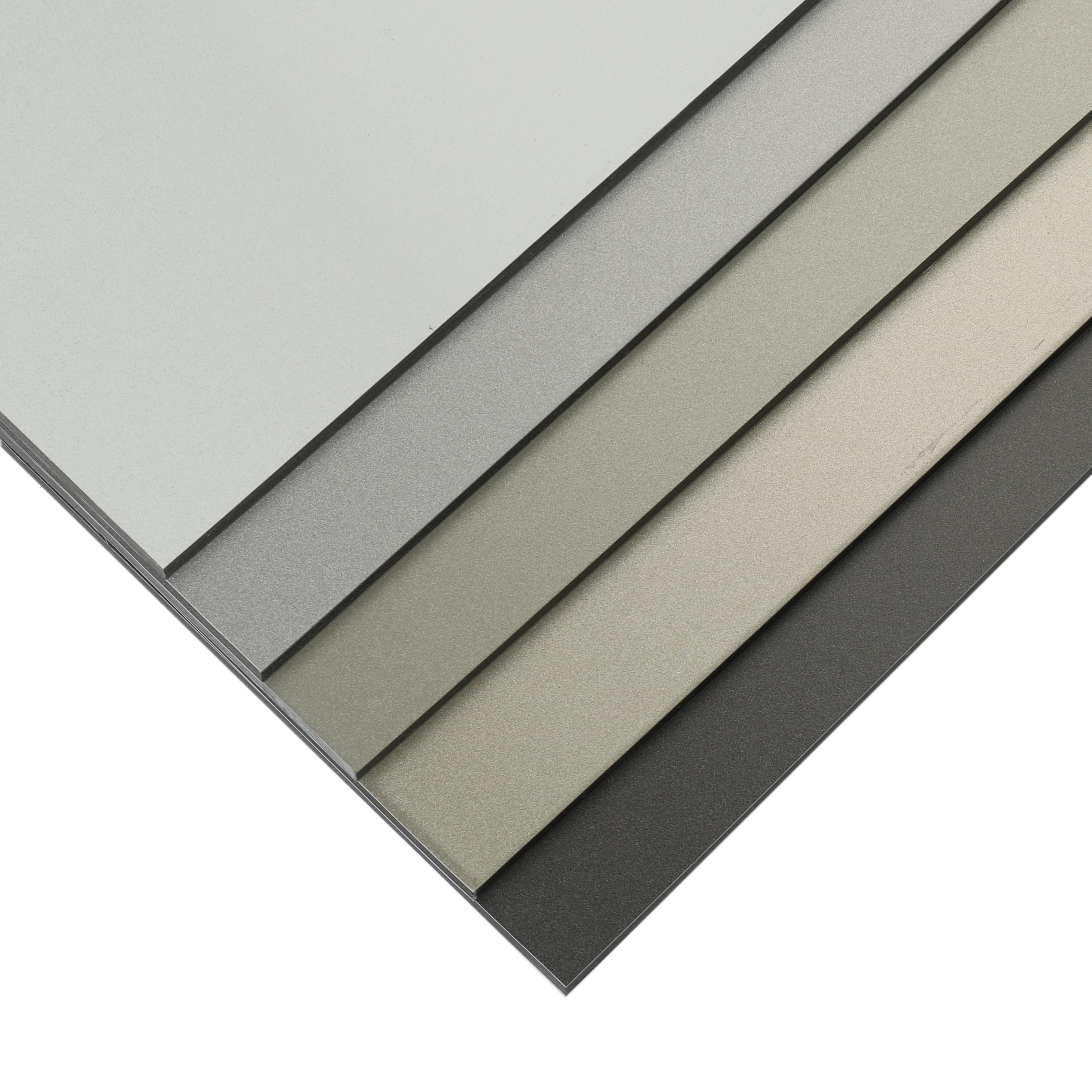

Alucom 4x8 Feet 3mm Acp Toyo Fireproof Antibacterial Aluminum Core Composite Clading Sheets Panel Outdoor Doors 1 Year Warranty
Product Description
Product Parameters
PVDF COATING Aluminum Composite Panel

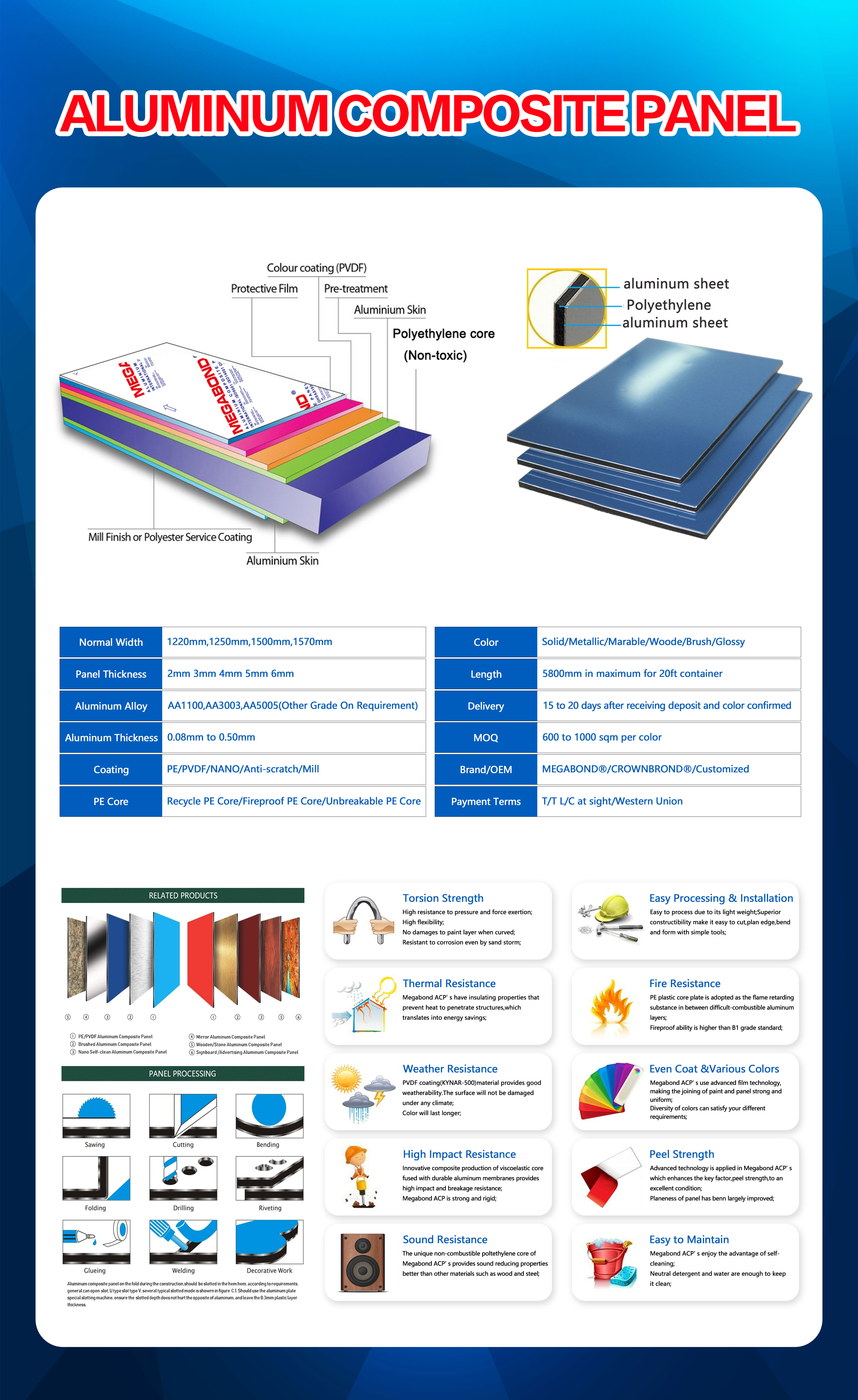

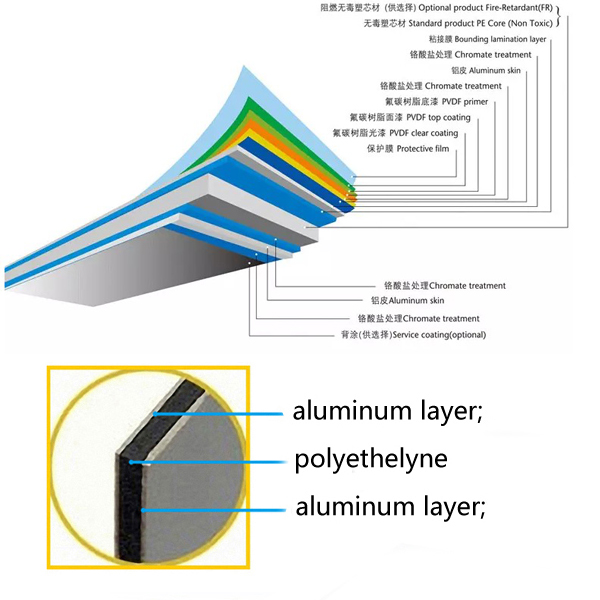

The aluminum-plastic composite panel is composed of multiple layers of materials. The upper and lower layers are high-purity aluminum alloy plates, and the middle layer is non-toxic low-density PE core board. The front side of the board is also coated with a protective film. For outdoor applications, the front of the aluminum-plastic plate is coated with PVDF, while for indoor applications, the front can be coated with non-fluorocarbon resin.
Products Description
| Front Side | Aluminum Alloy (3003) coated with Fluorin carbon resin (PVDF) or Polyester resin (PE) roasting painting |
| Core | Non-toxic polyethylene or Plastic fireproof materials (B1 / A2) |
| Back Side | Aluminium alloy sheet coated with polyester resin painting |
| Panel Thickness | 2mm, 3mm, 4mm, 5mm, 6mm are available |
| Alu Thickness | 0.5mm, 0.4mm, 0.3mm, 0.21mm, 0.18mm, 0.15mm, 0.12mm, 0.1mm, 0.06mm |
| Width | 1220mm (regular), 1250mm, 1300mm, 1500mm, 1550mm, 1570mm, 1575mm (Maximum) |
| Length | 2440mm (regular), and or by customer’s offers, 5800mm (Maximum) |
| Standard Size | 1220 (Width) x 2440 (Length) x 3mm (Thickness); 1250 (Width) x 2440 (Length) x 4mm (Thickness) |
| Surface Finish | MIRROR, MARBLE IMITATION, WOOD IMITATION, BRUSH, PVC FILM, PP FILM, PEARL SERIES, GLOSSY SURFACE, MATT SURFACE |
| Core Material | (Normal non toxic polyethylene, one side unbroken polyethylene, two side unbroken polyethylene, virgin LDPE,) B1 non-combustible mineral filled core, A2 non-combustible mineral filled core |
| Coating | PE COATING, PVDF COATING, FEVE COATING, ANODIZED COATING |
| Standard | According to China National Standard GB/T 17748-2016 |
Technical Data of PVDF Aluminum Composite Panel
| Technical Performance Test Items & Results | ||
|---|---|---|
| Thickness of Coating | PVDF paint ≥ 25 um | 26um to 28um |
| Coating Flexibility (T-bend) | PVDF paint ≤ 2T | 2T |
| Coating Adhesion | ≤ 1 grade for 10*10mm² gridding test | 1 grade |
| Pencil Hardness | ≥ HB | HB |
| Resist Solvent | No change for 200 times (MEK) | No change |
| Chemical Resistance | 5% HCL or 5% NAOH - No change for 24hours | No change |
| Boiling Water Resistance | Coating no tear off for 2 hours boiling | No tear off |
| Color Difference | ΔE ≤ 2.0 (follow color sample) | 0.5 |
| Panel Peeling Strength | 7 N/mm for 4mm panel with 0.5mm aluminium skin | 7 N/mm |
| Impact Test for Paint | 50Kg.cm impact -- paint no split for panel | No split |
| Abrasion Resistance (L/Mil) | ASTM D968 | 44 |
| Chemical Resistance | ASTM D1308 | Appearance: No change |
| Film Adhesion | ASTM D3359 (Note 1) | 5B |
| Detergent Resistance (3%) | ASTM D2248 | Appearance: No change |
| Stripping Strength (kgf/inch) | ASTM D903 | 18.5 |
| Humidity Resistance (3000hrs, 100%RH, 100°F) | ASTM D2247 | Appearance: No change |
| Salt Spray Resistance (3000hrs, 5% salt) | ASTM B117 | Appearance: No change |

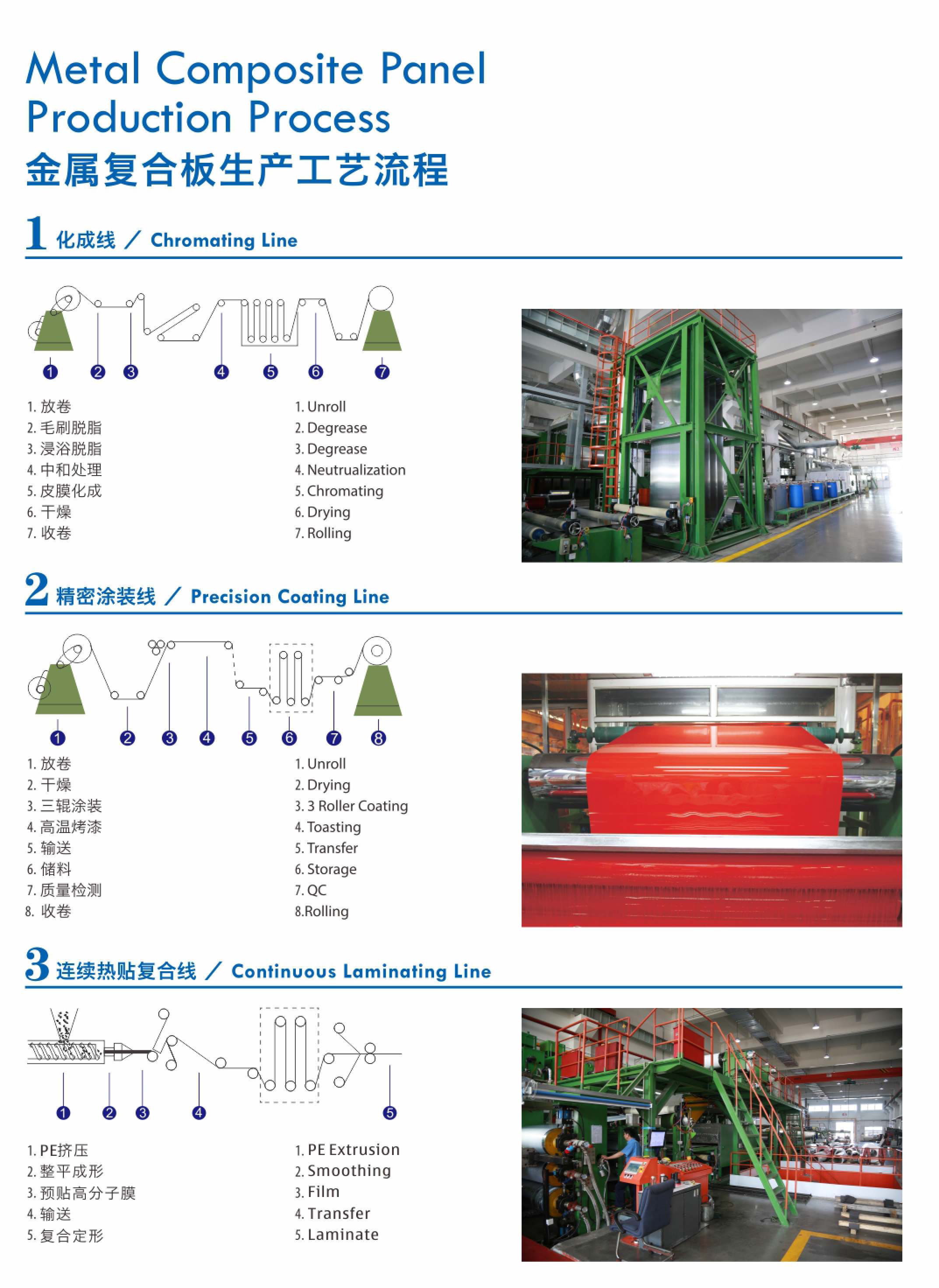

Manufacturing Process

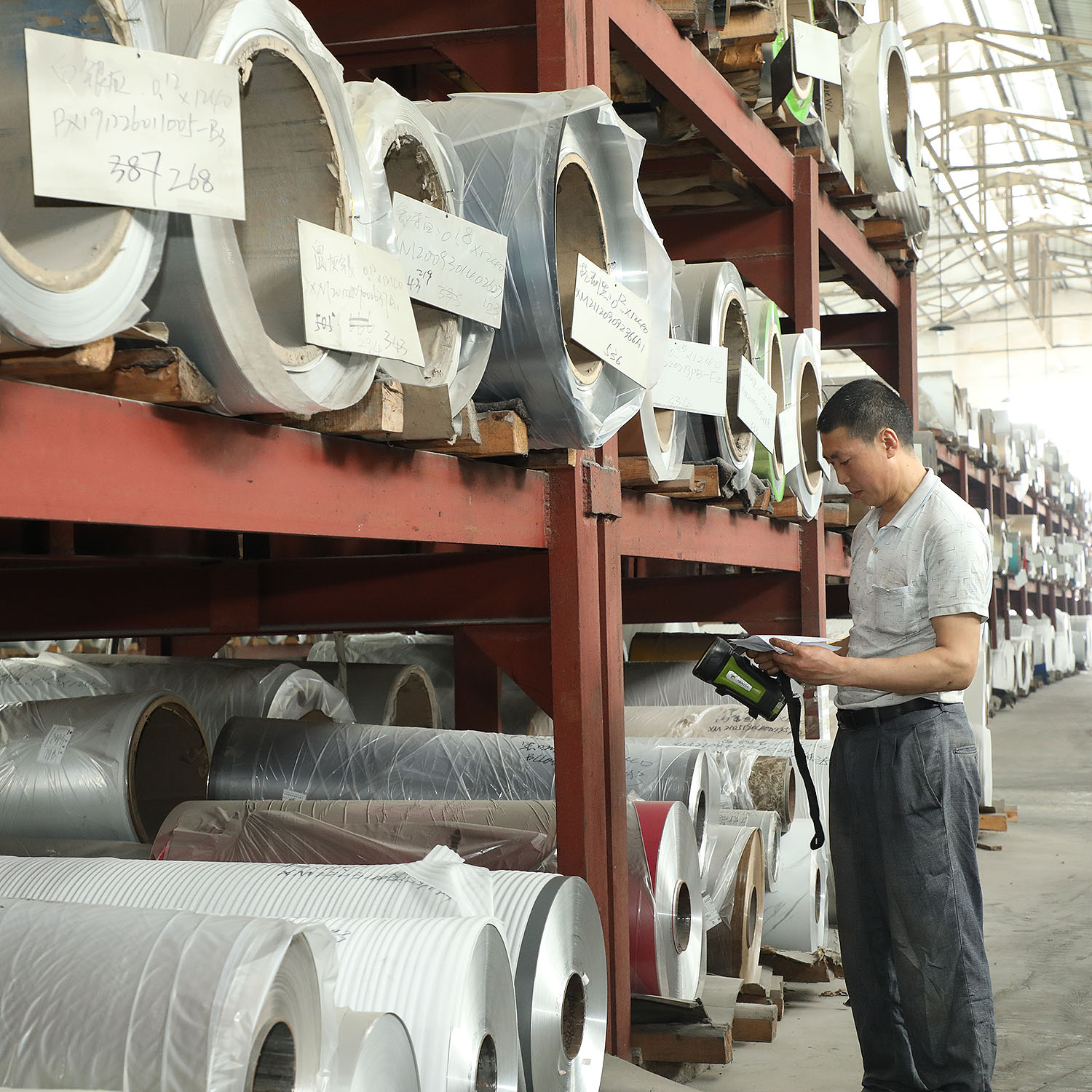

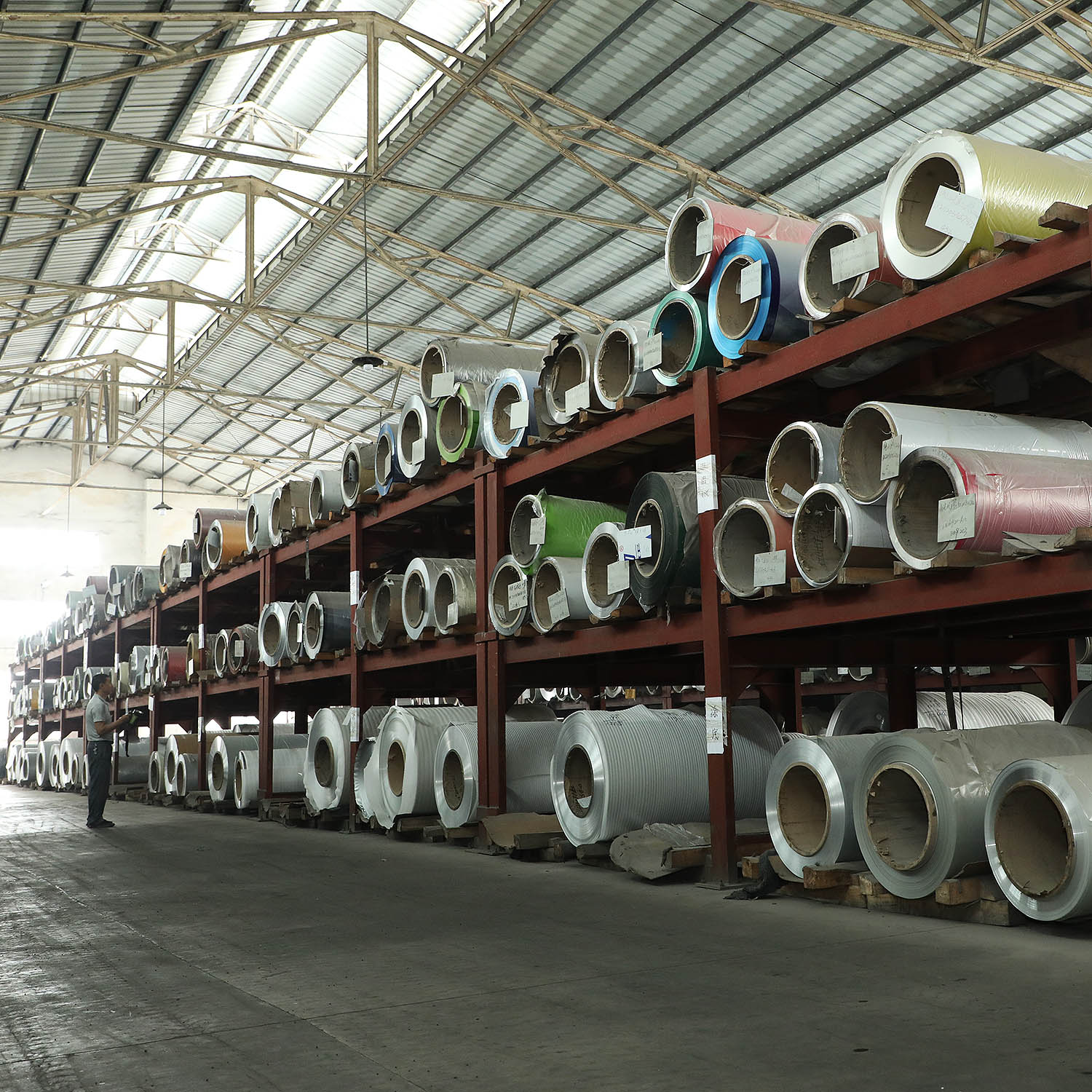

Aluminum Coils

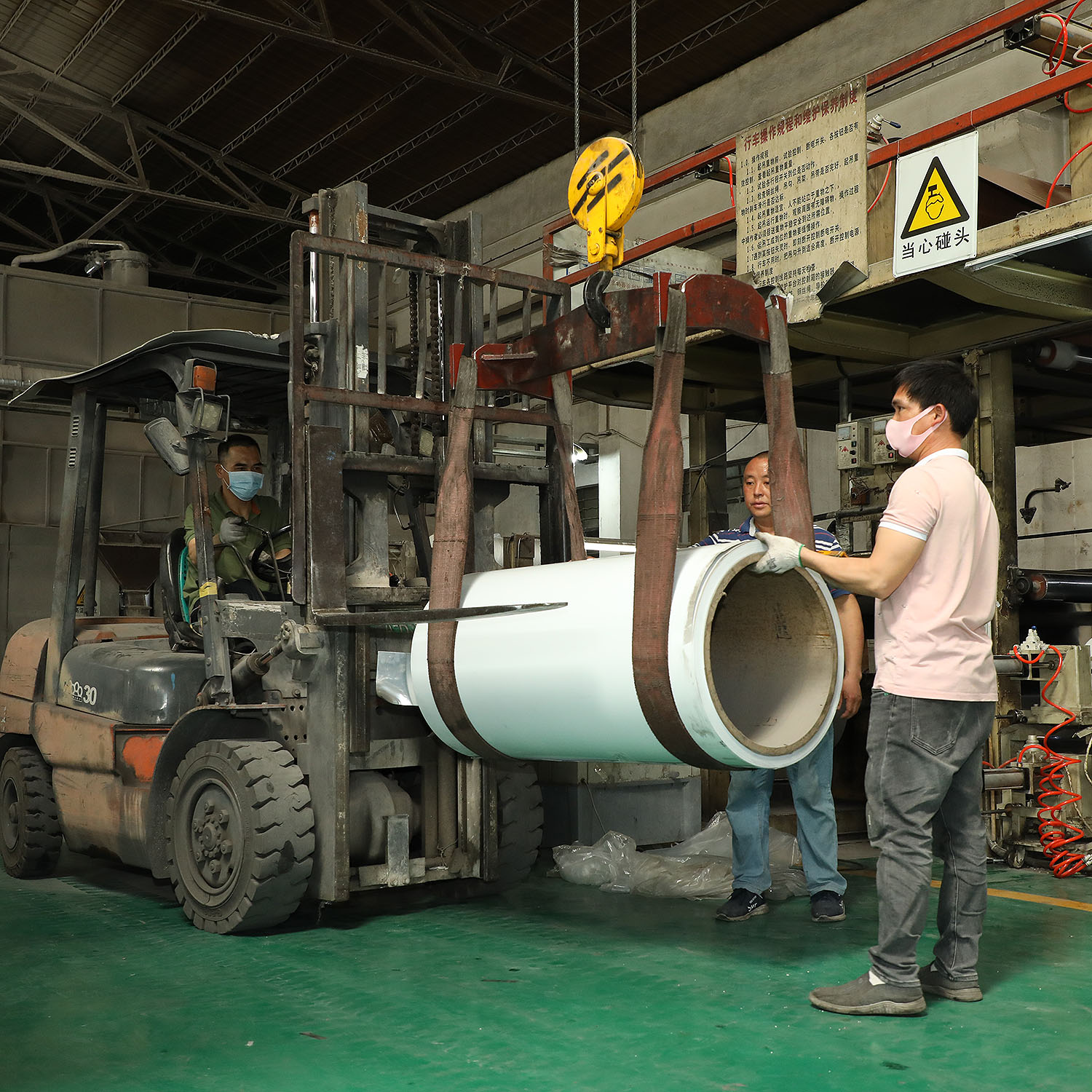

Coils Transfer

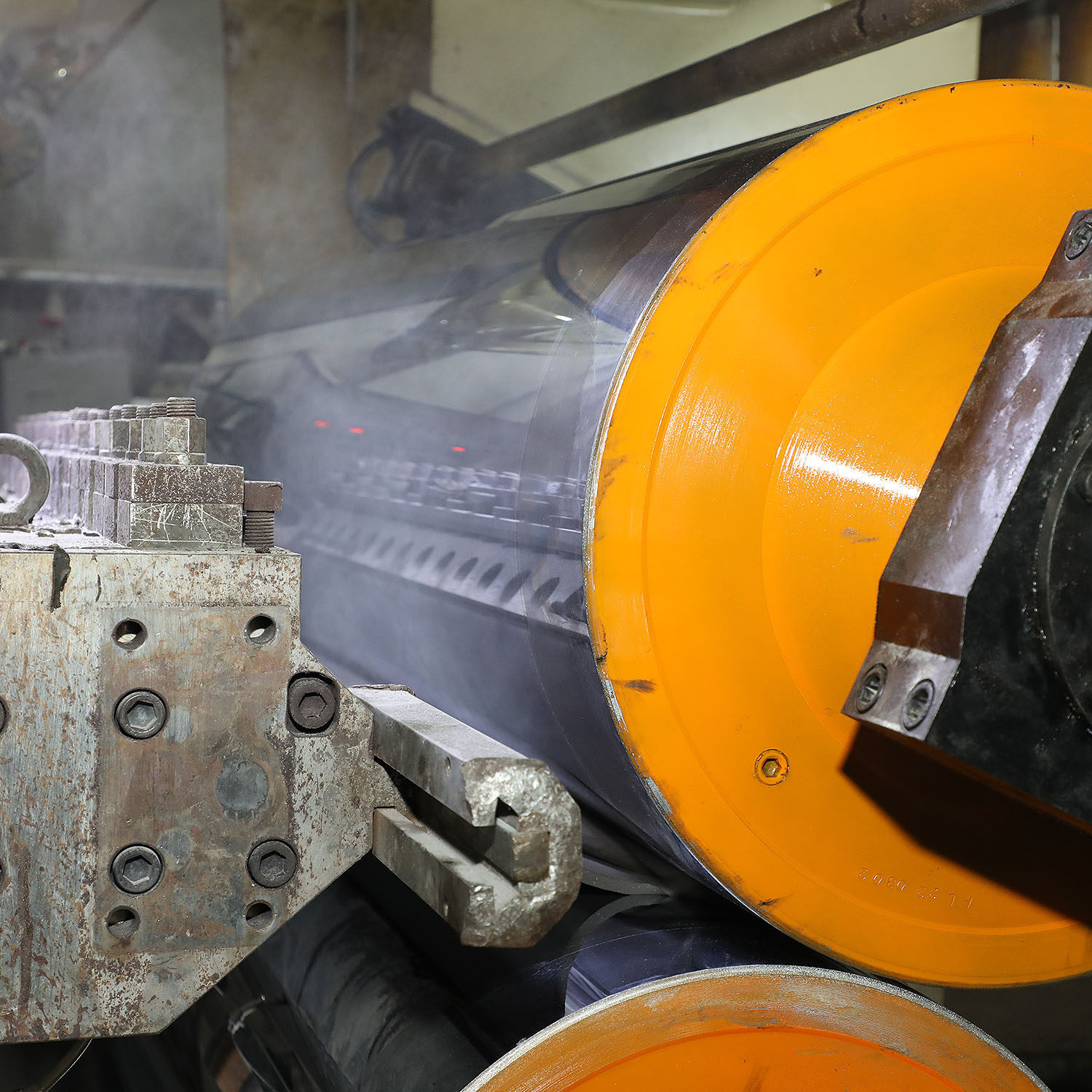

PE Extrusion

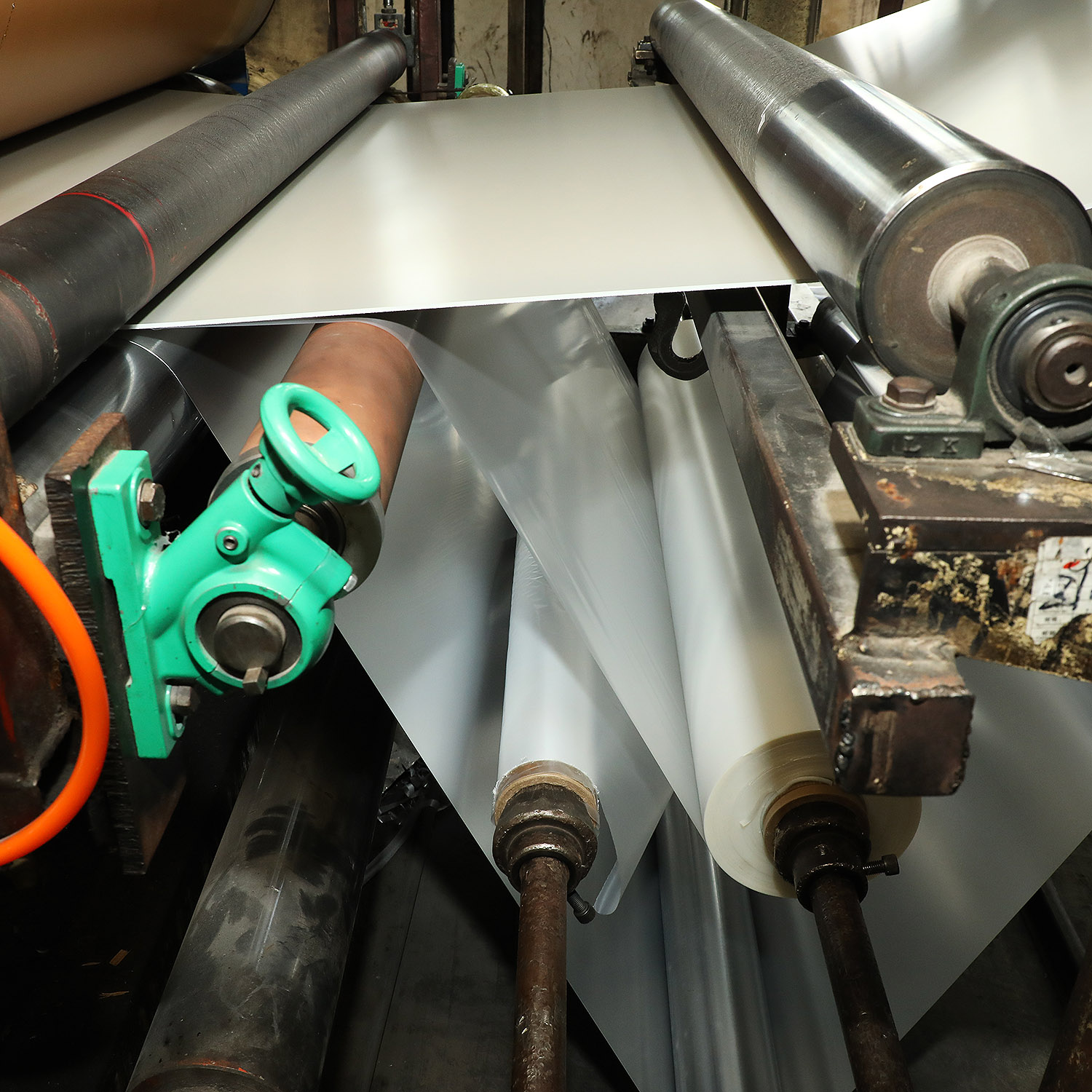

Poly Film Lamination

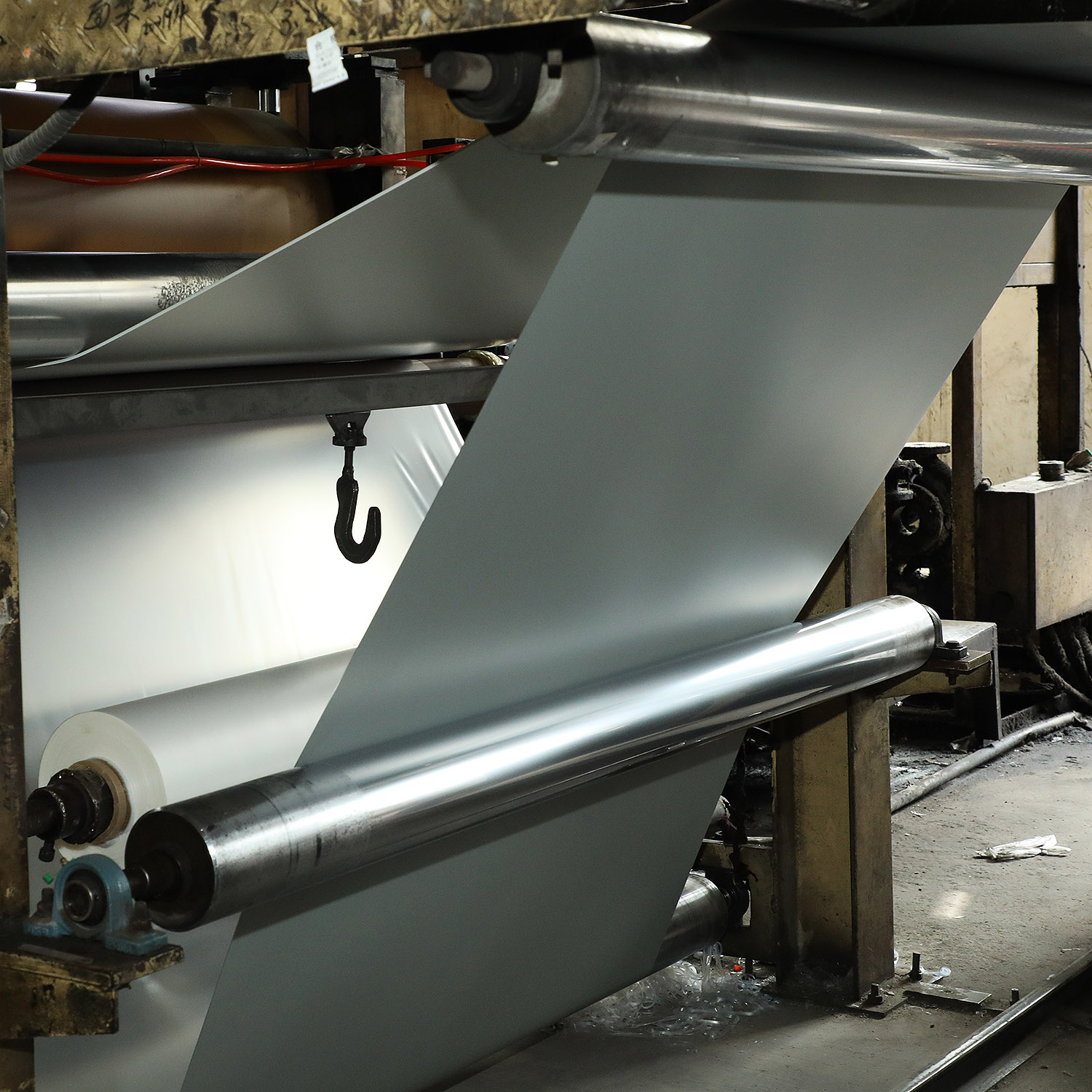

Composite

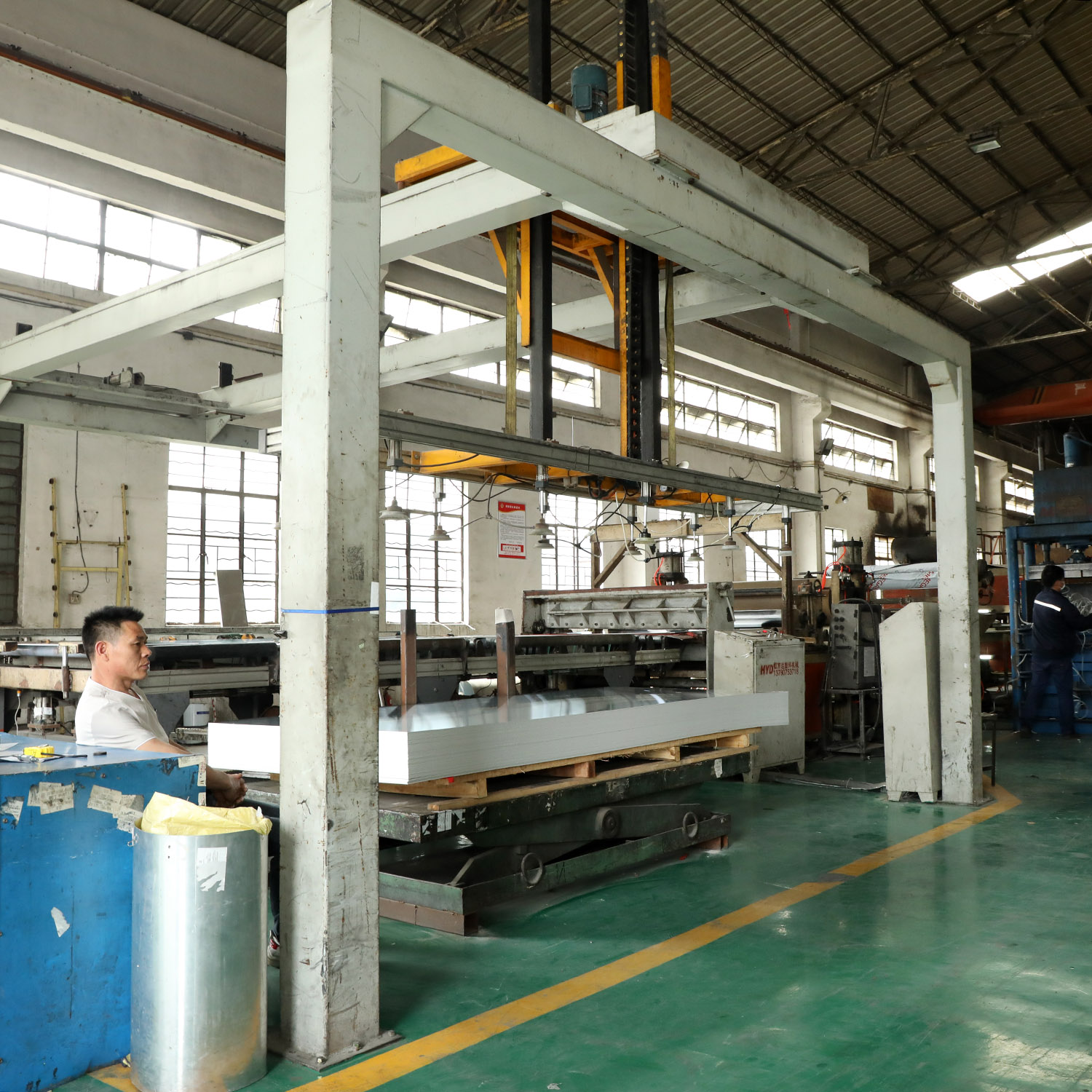

Trim and Cutting
Products Quality Inspection & Testing

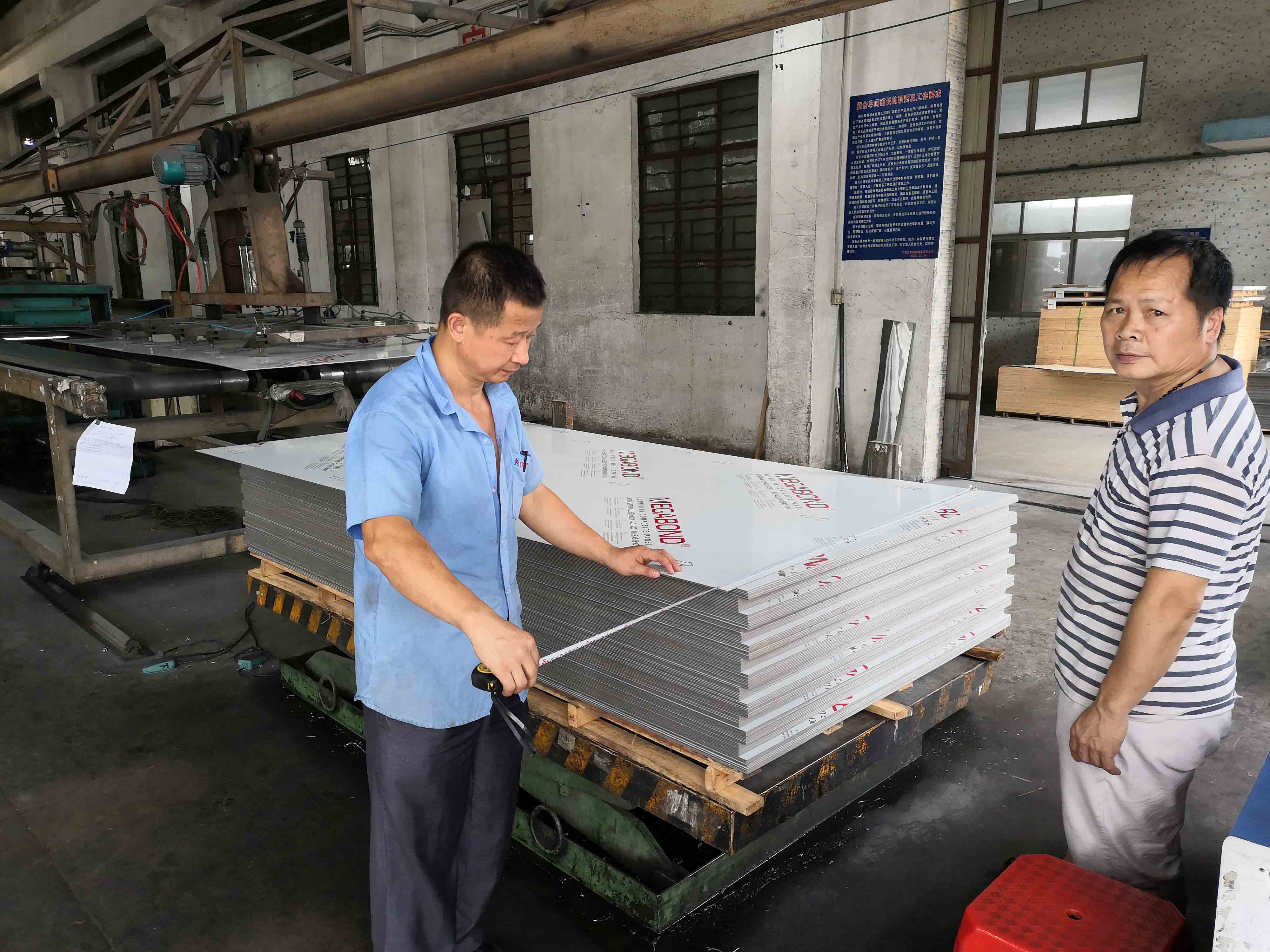

Width Checking

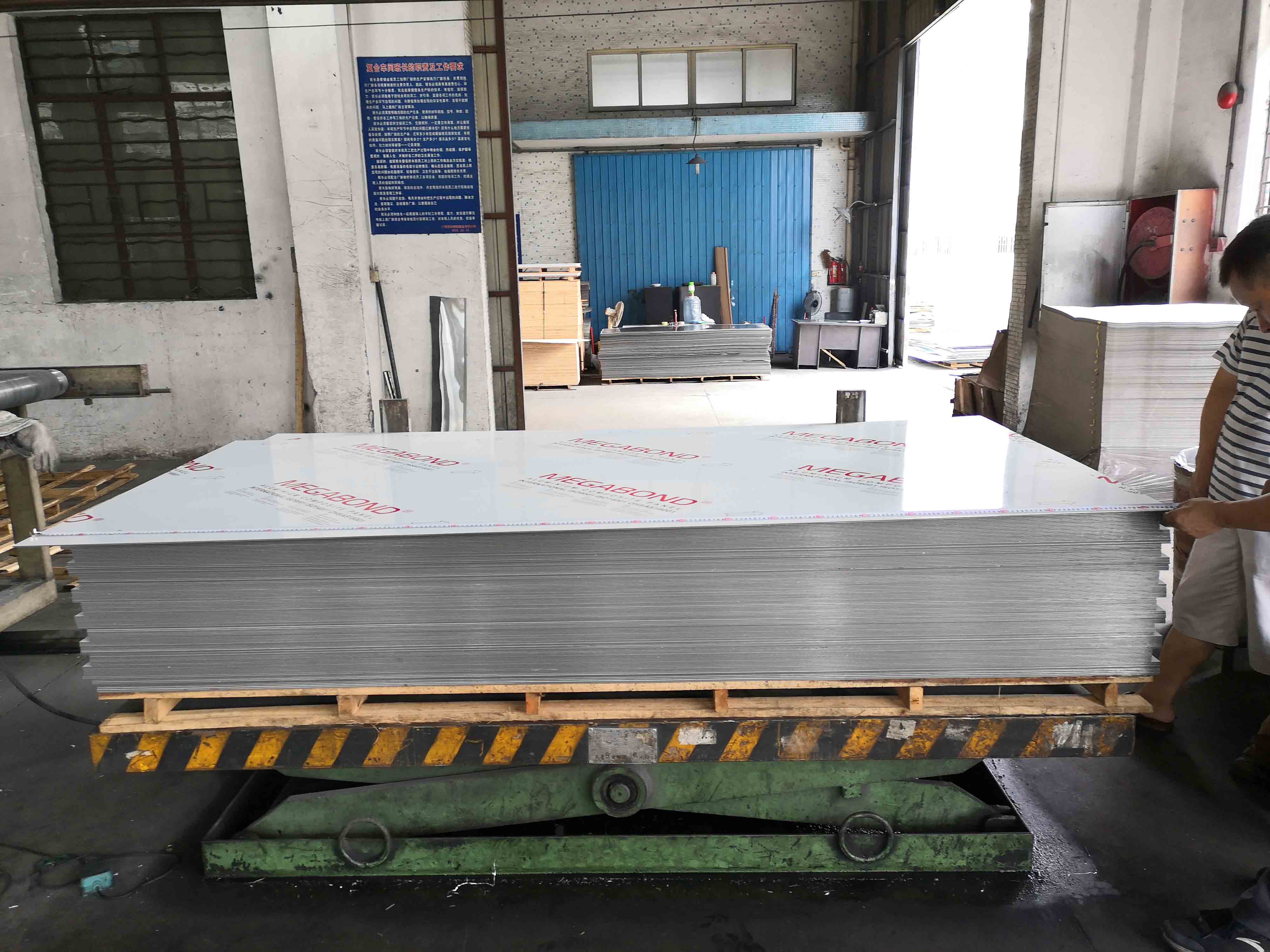

Length Checking

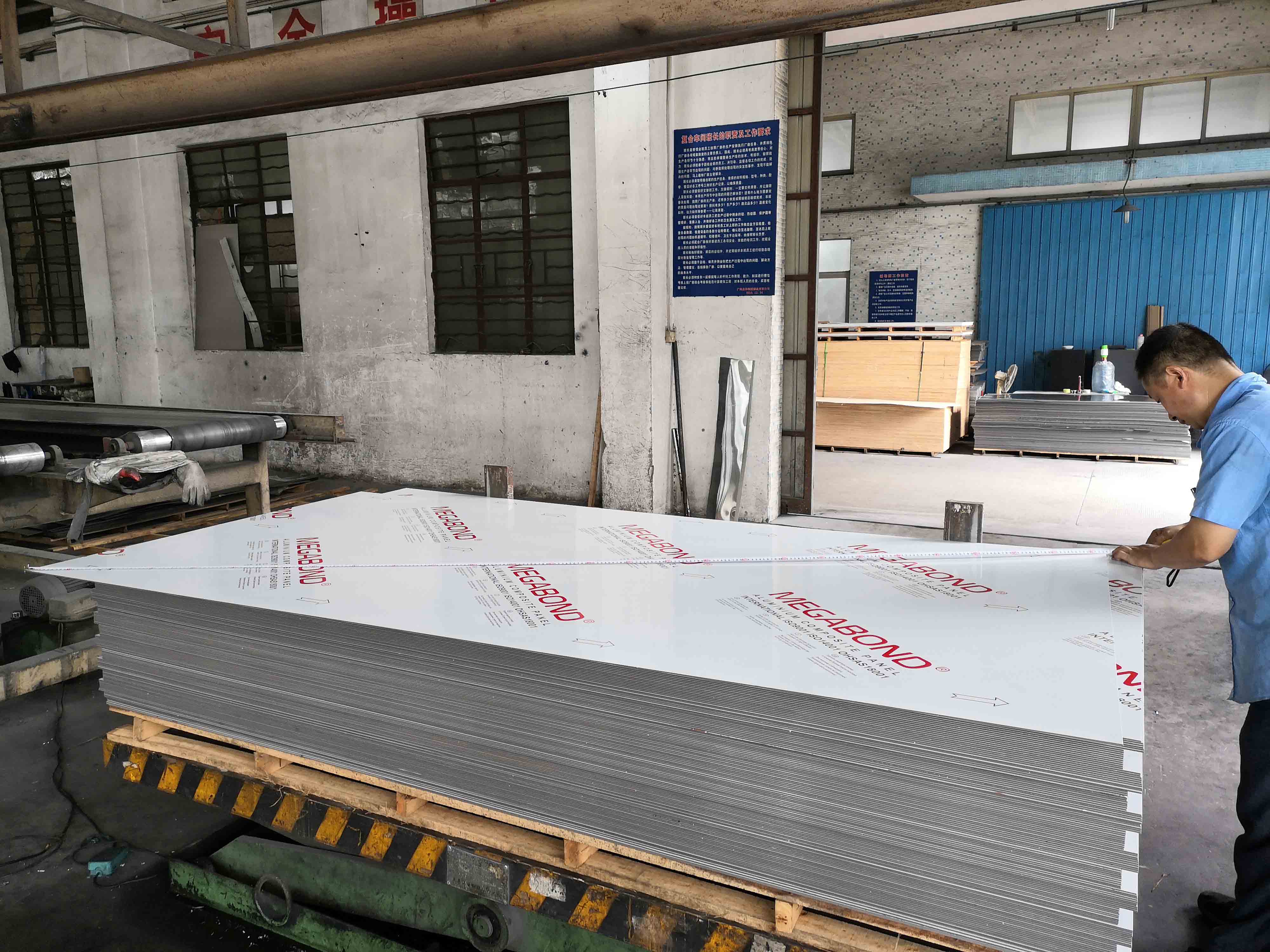

Diagonal (Line) Checking

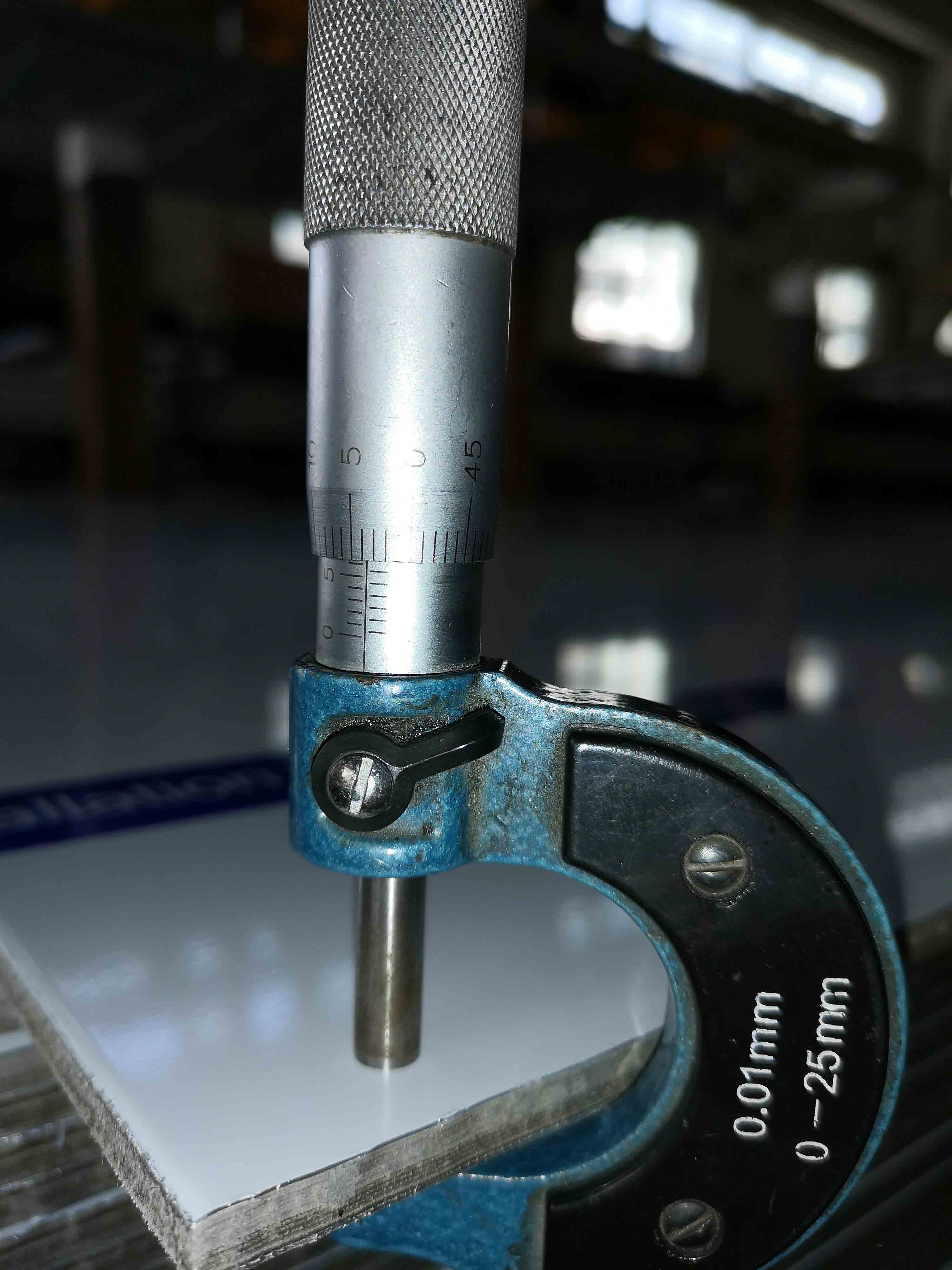

Thickness Checking

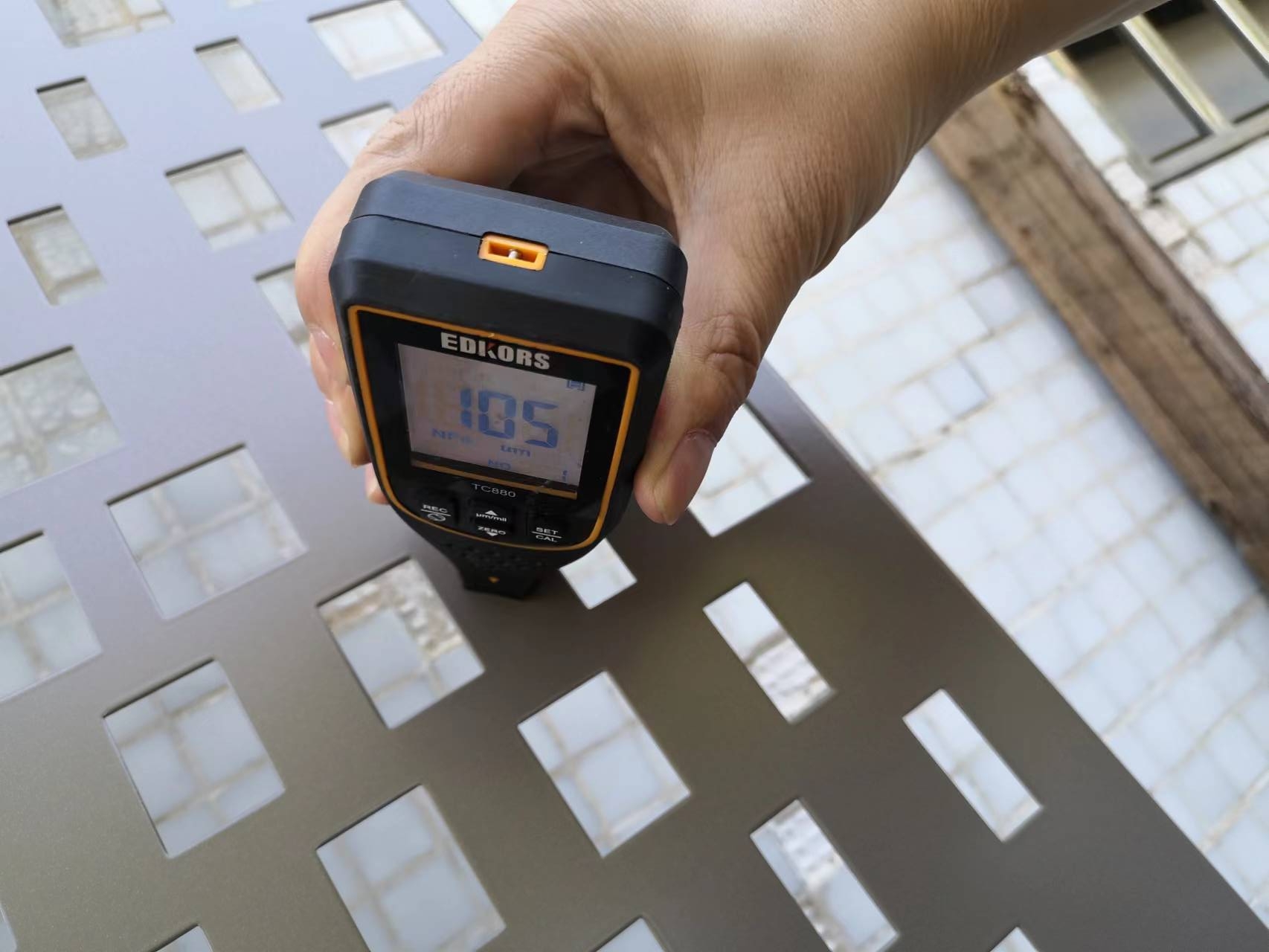

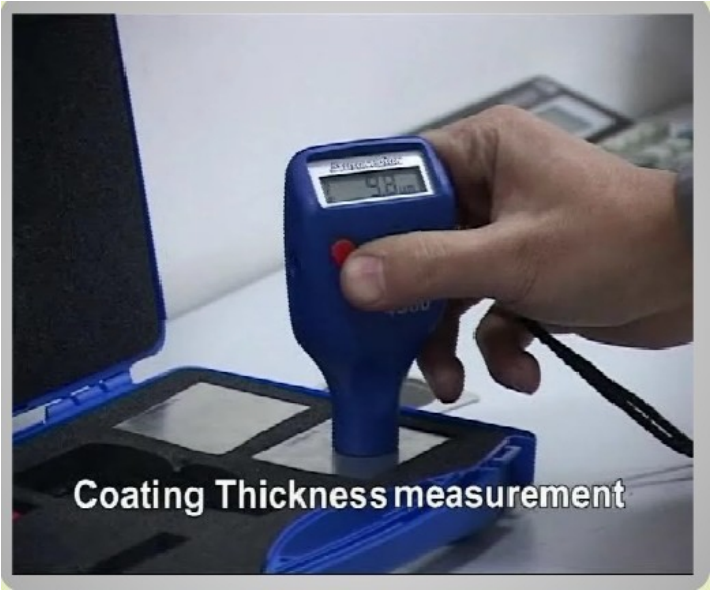

Coating Thickness Measurement
Color Deviration ΔE Testing

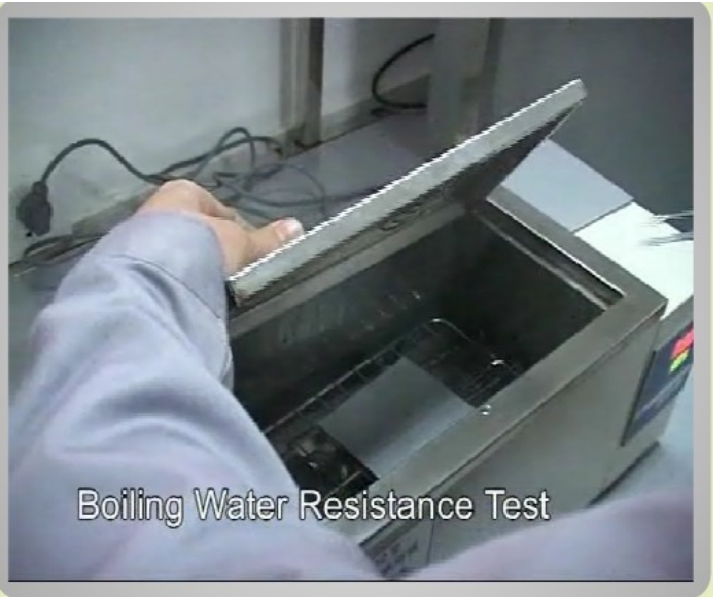

Boiling Water Resistance Test

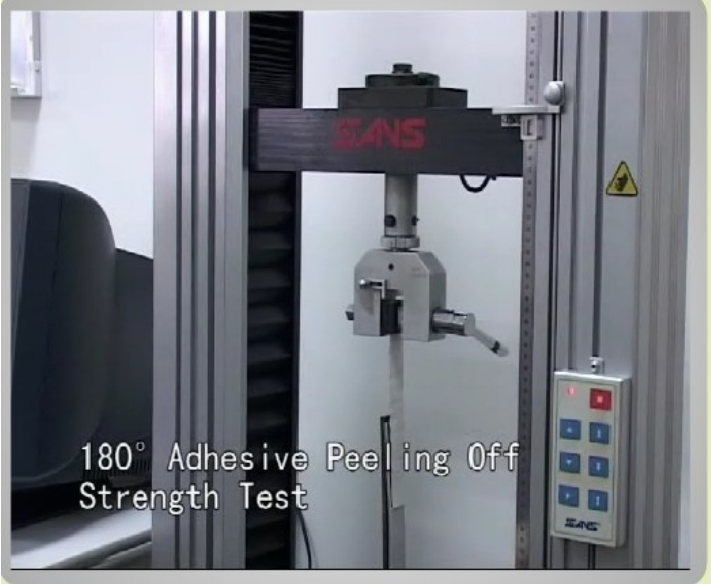

180° Adhesive Peeling Off Strength Test

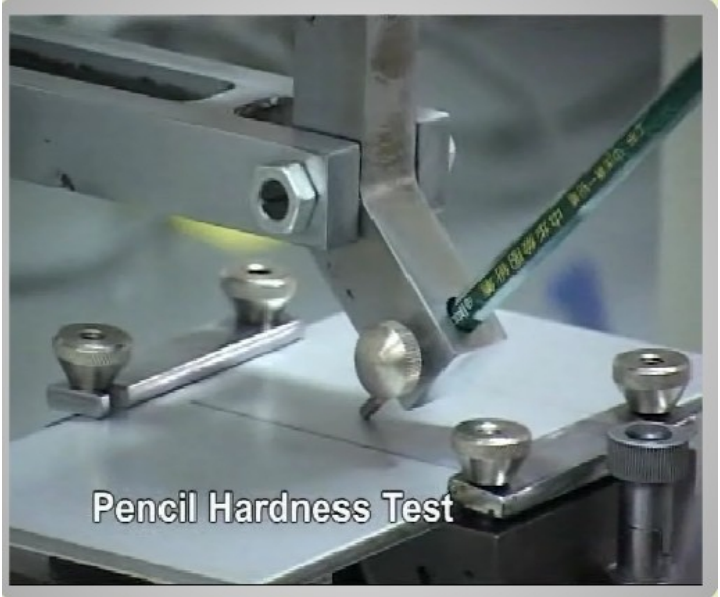

Pencil Hardness Testing

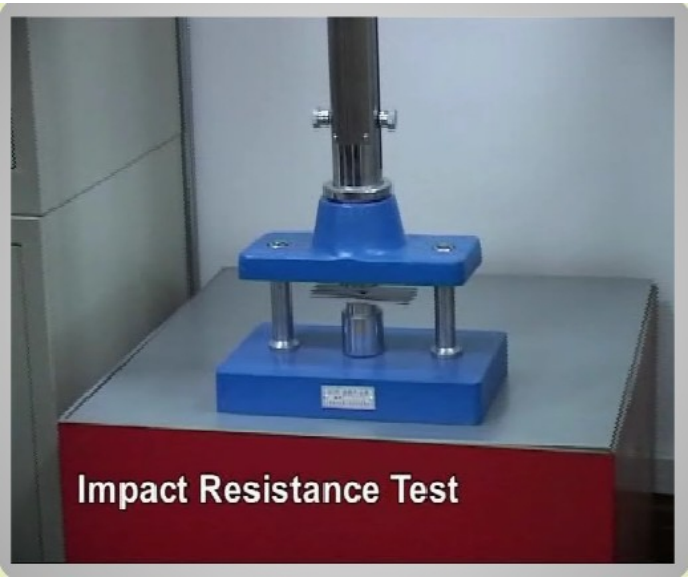

Impact Resistance Test

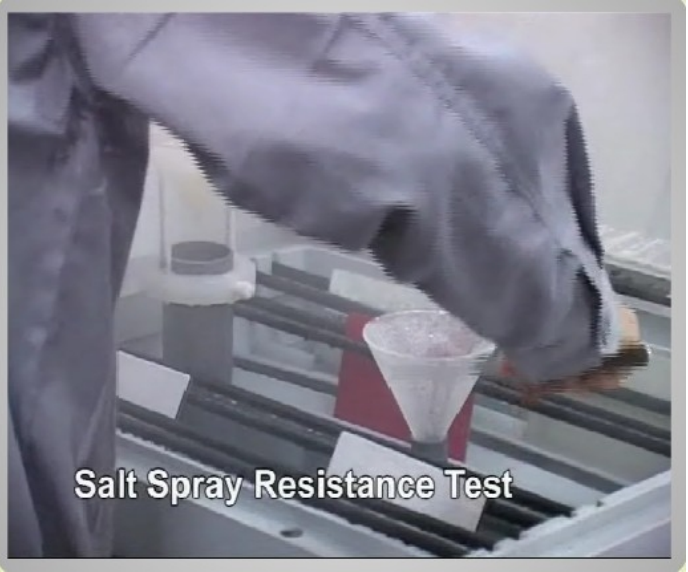

Salt Spray Resistance Test

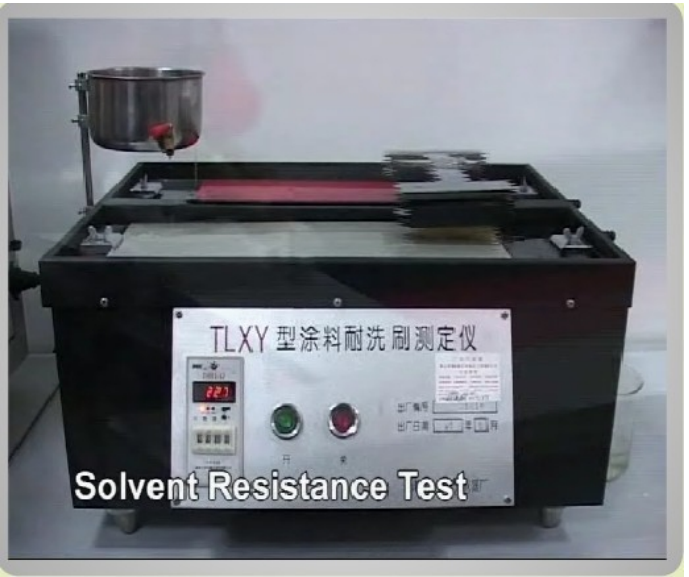

Solvent Resistance Test

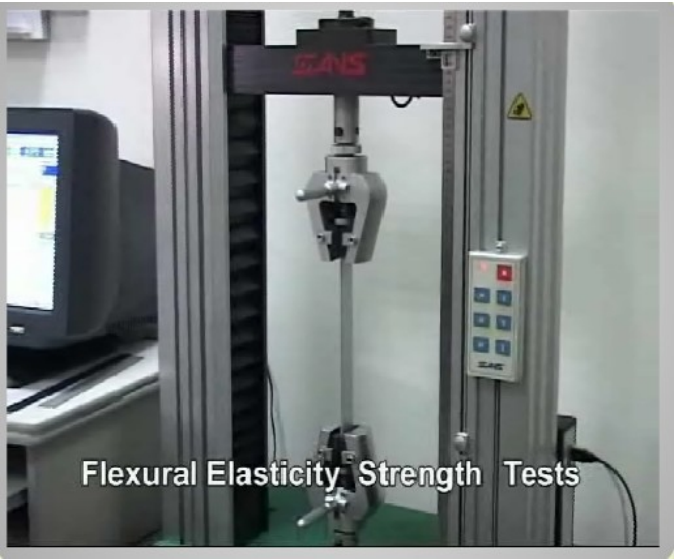

Flexural Elasticity Strength Tests
T-Turns Testing

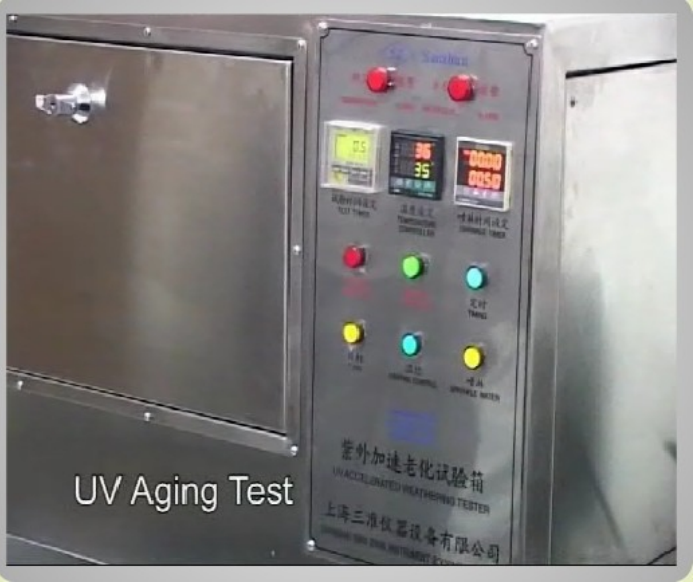

UV Aging Test

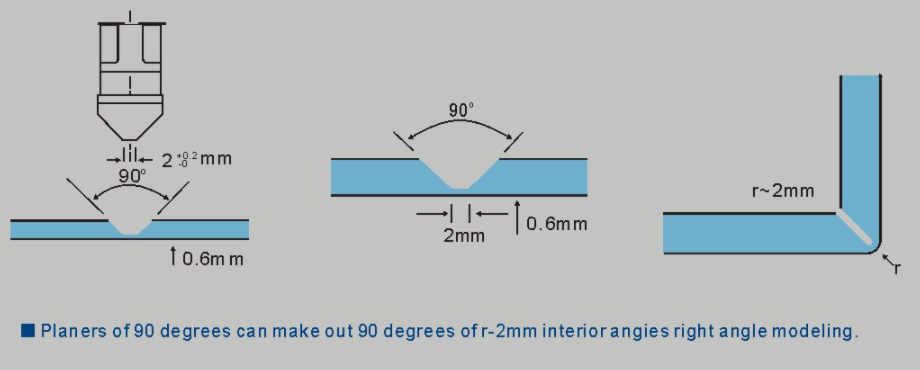

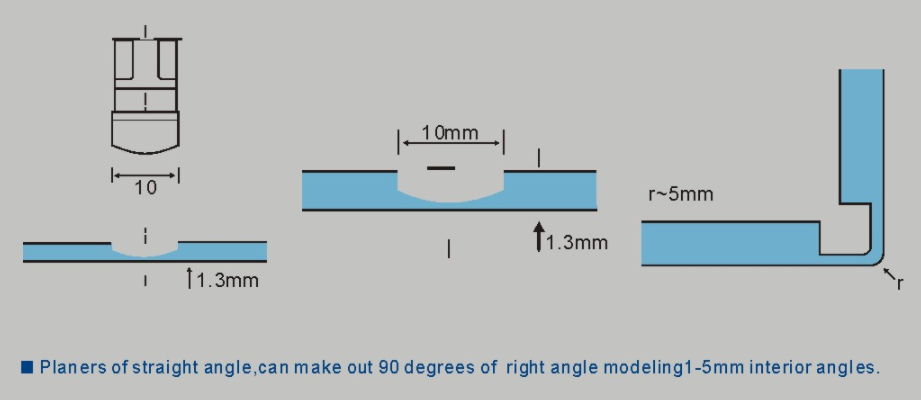

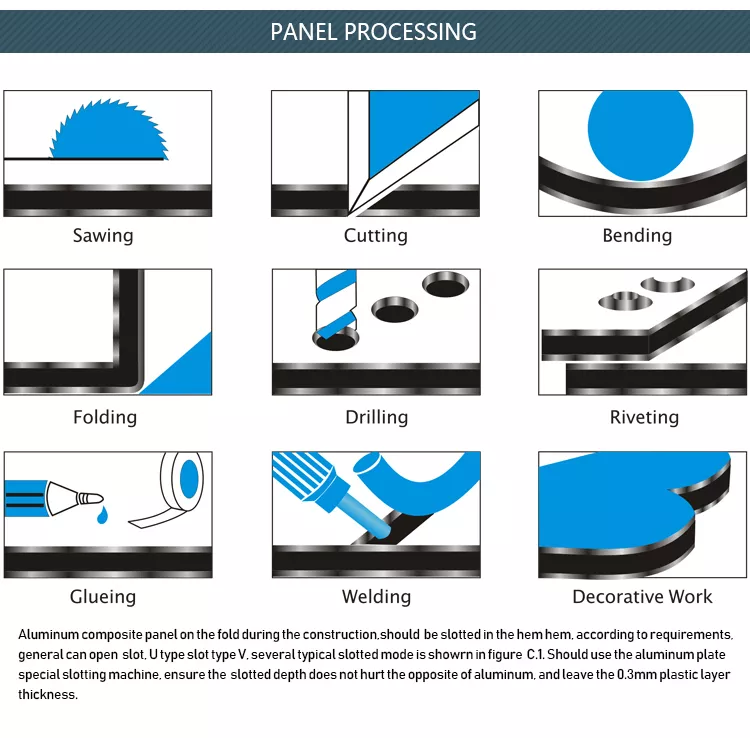

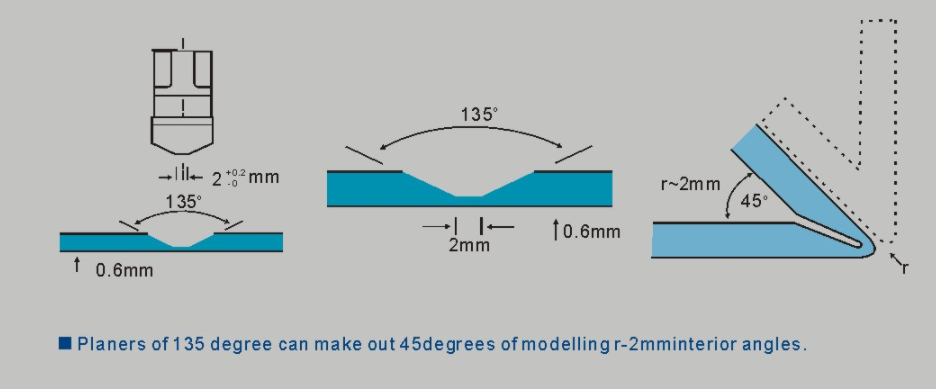

Production & Fabrication

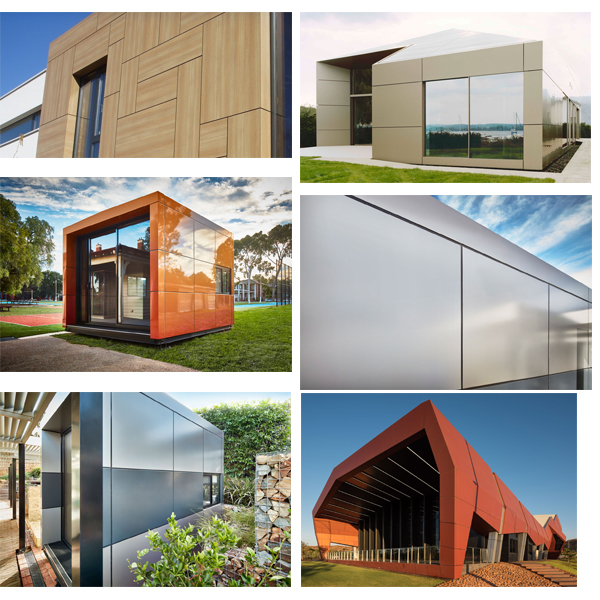

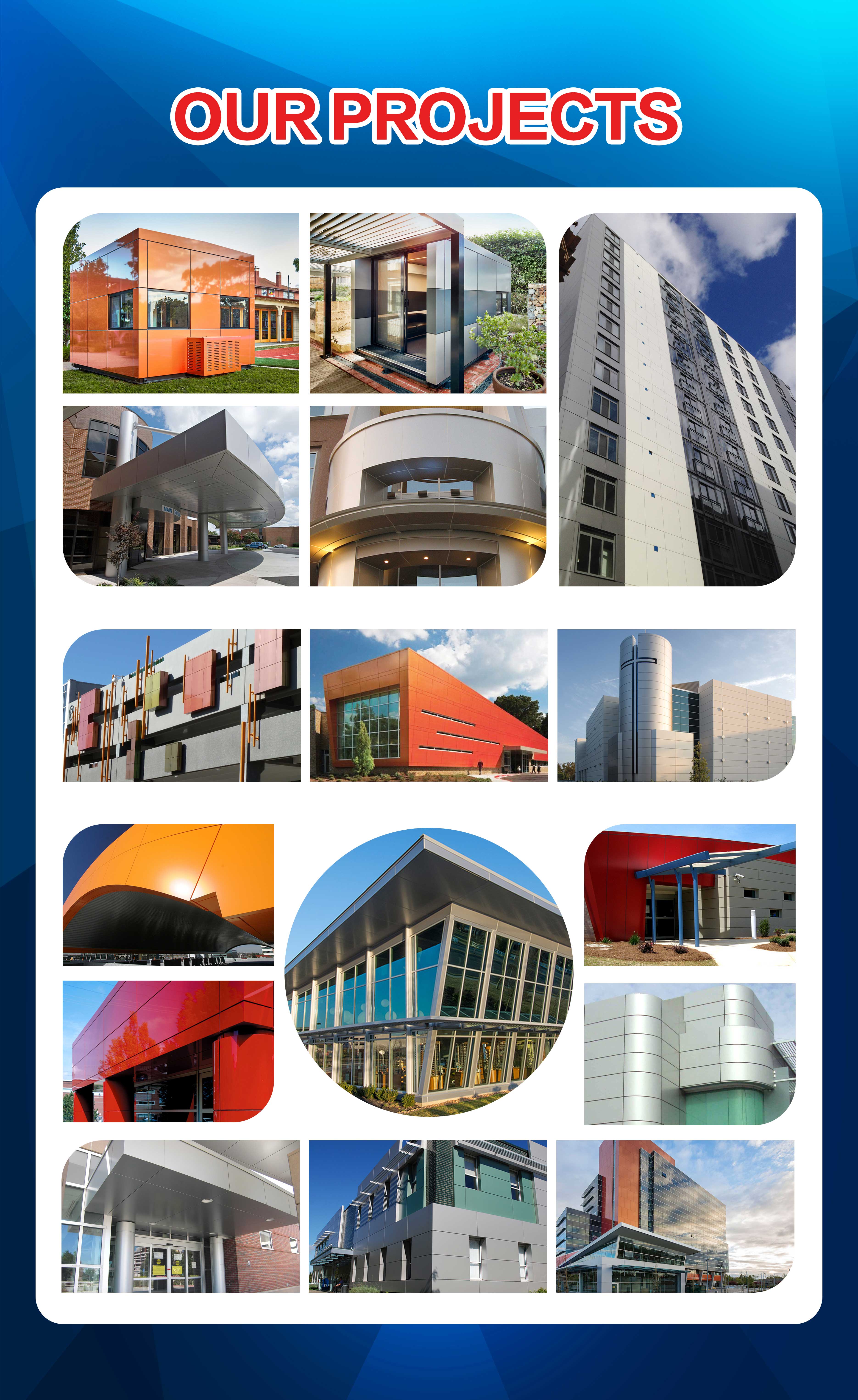

Aluminum Composite Panel Applications
1
Constructional exterior curtain walls
2
Decorative renovation for store-added old buildings
3
Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies
4
Galleries, exhibition, saloons, stores, offices, banks, hotels, restaurants and apartments
5
Advertisement board, display platforms and signboards
6
Raw materials in industrial purpose
7
Materials used for vehicle and boat

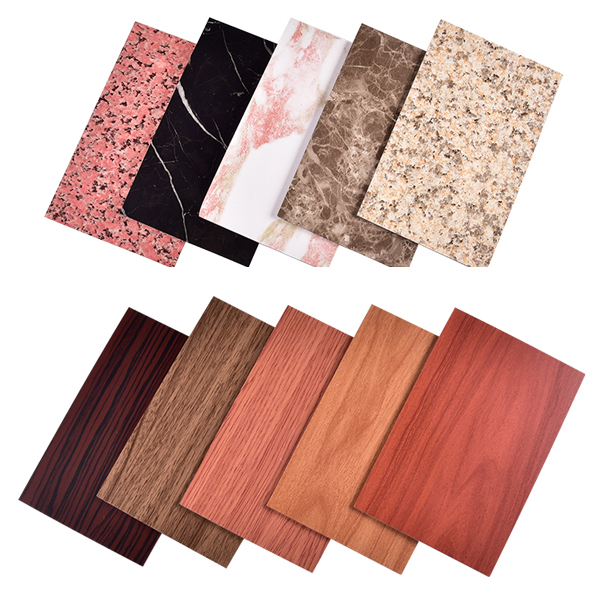

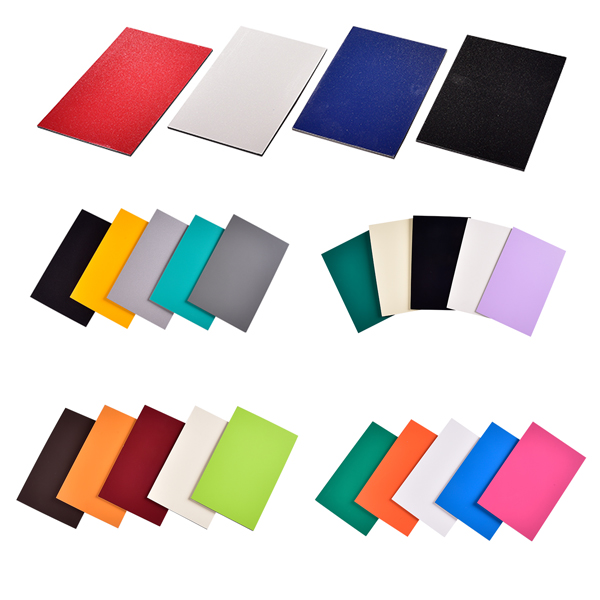

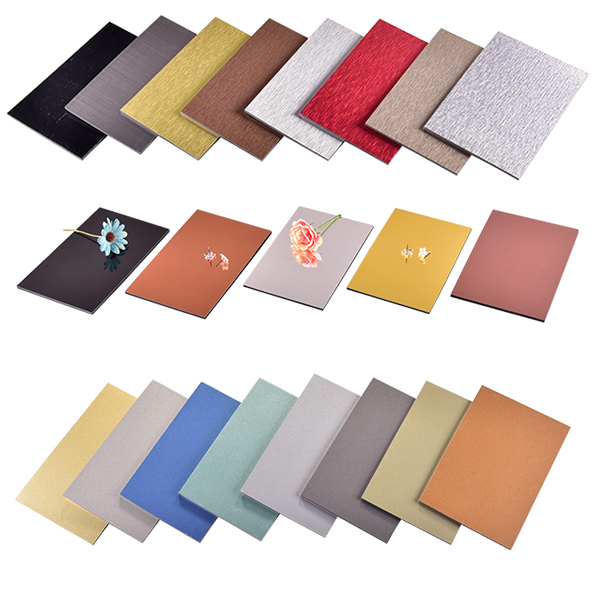

Hot Sale Products

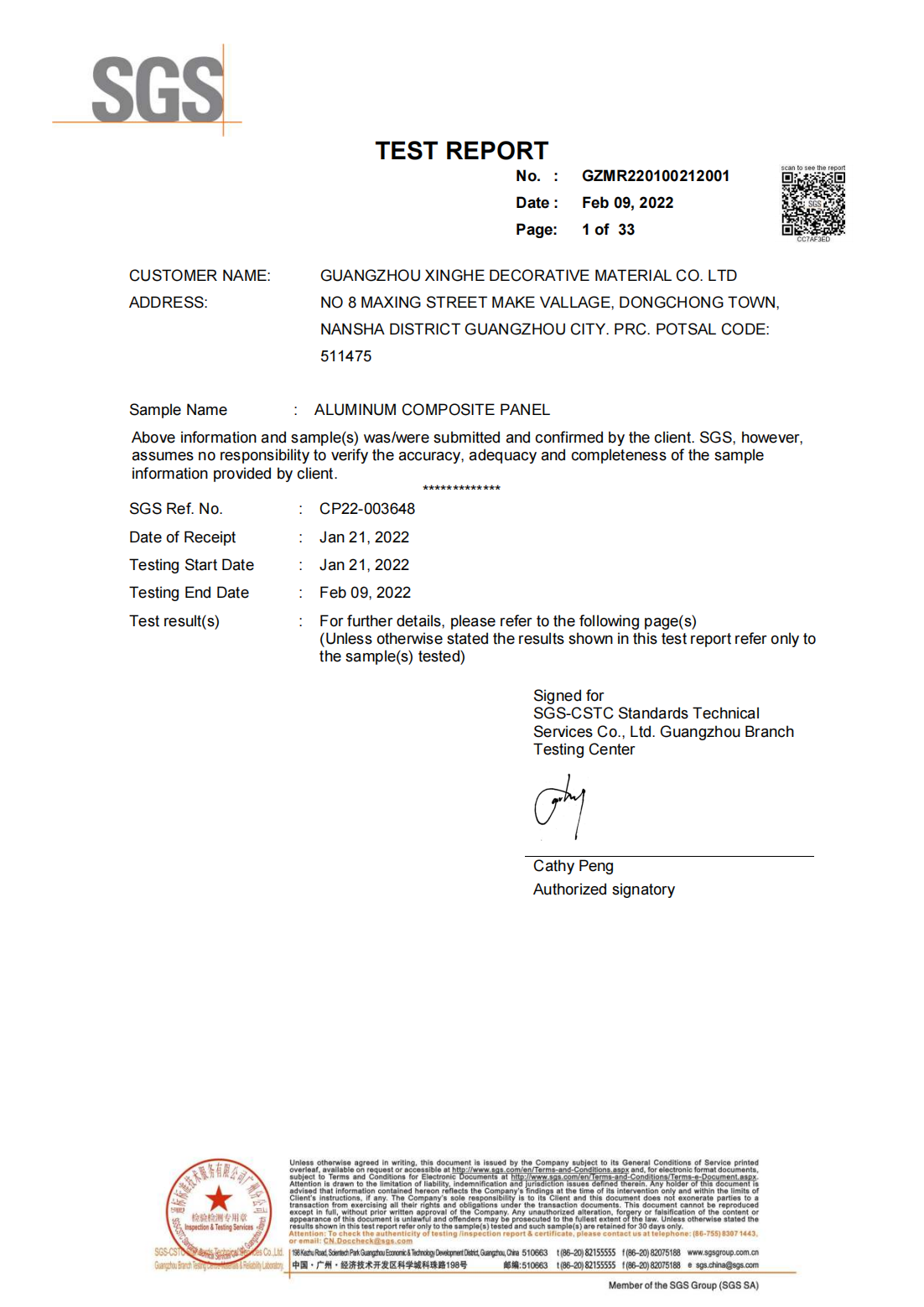

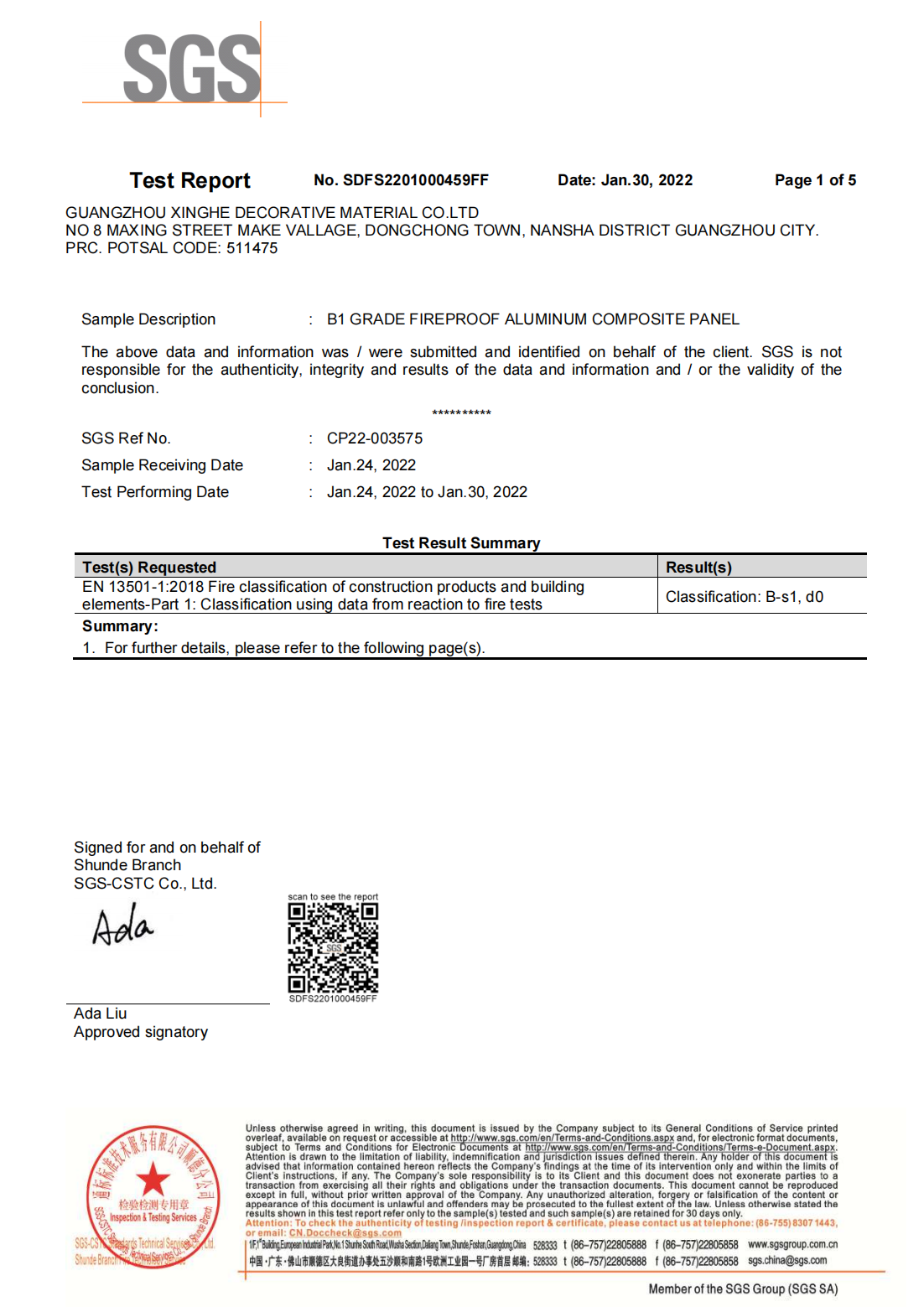

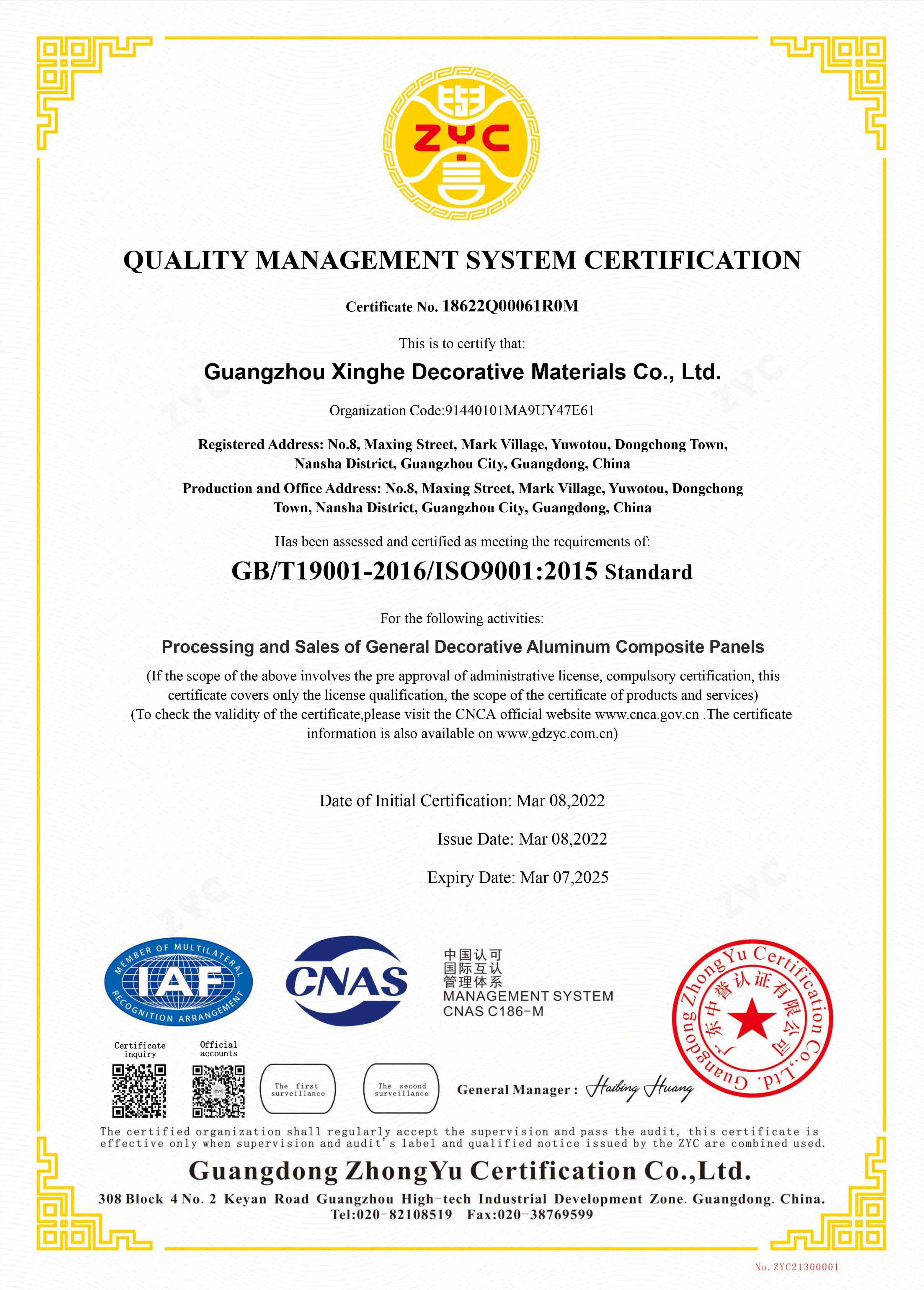

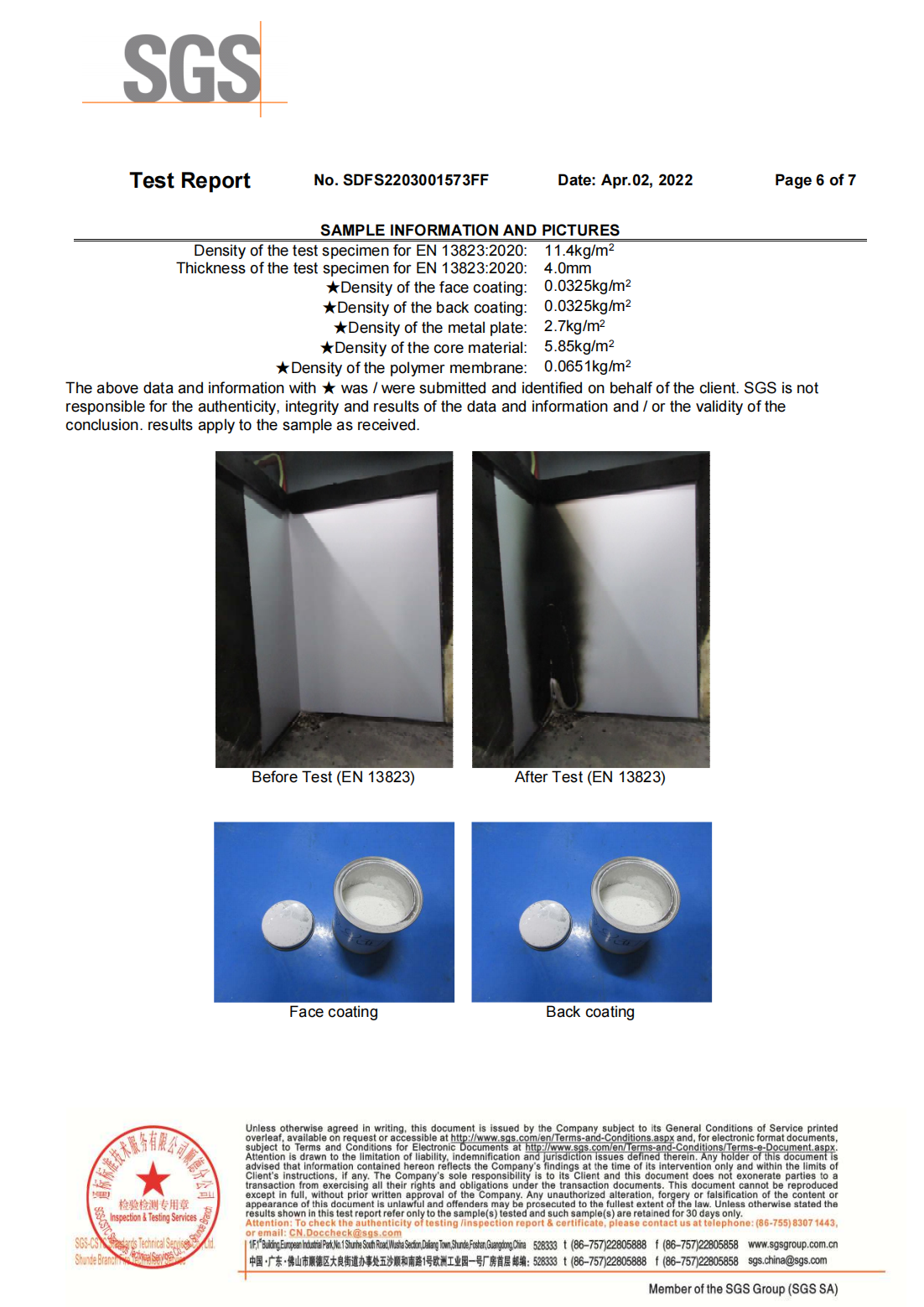

Certifications

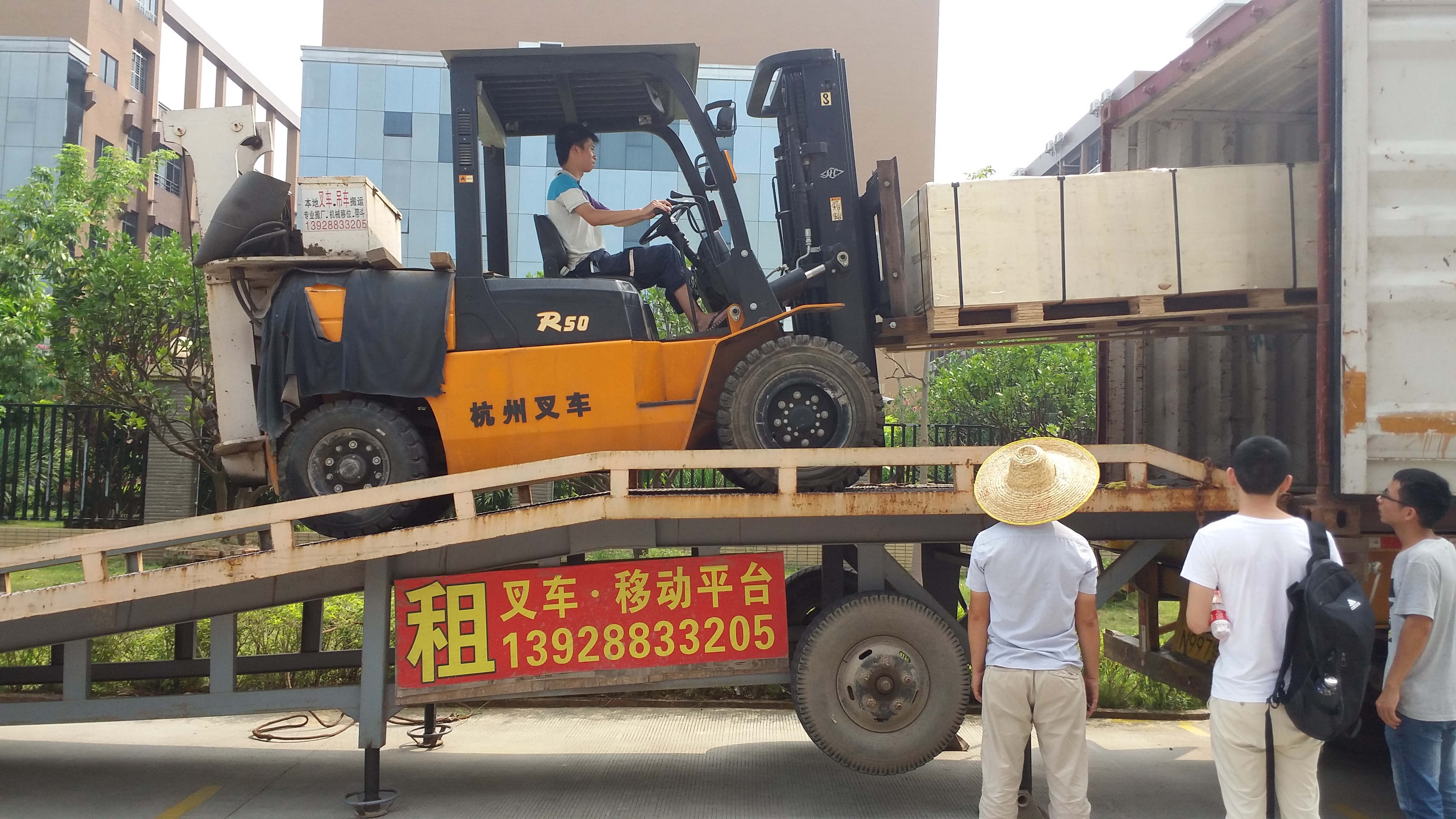

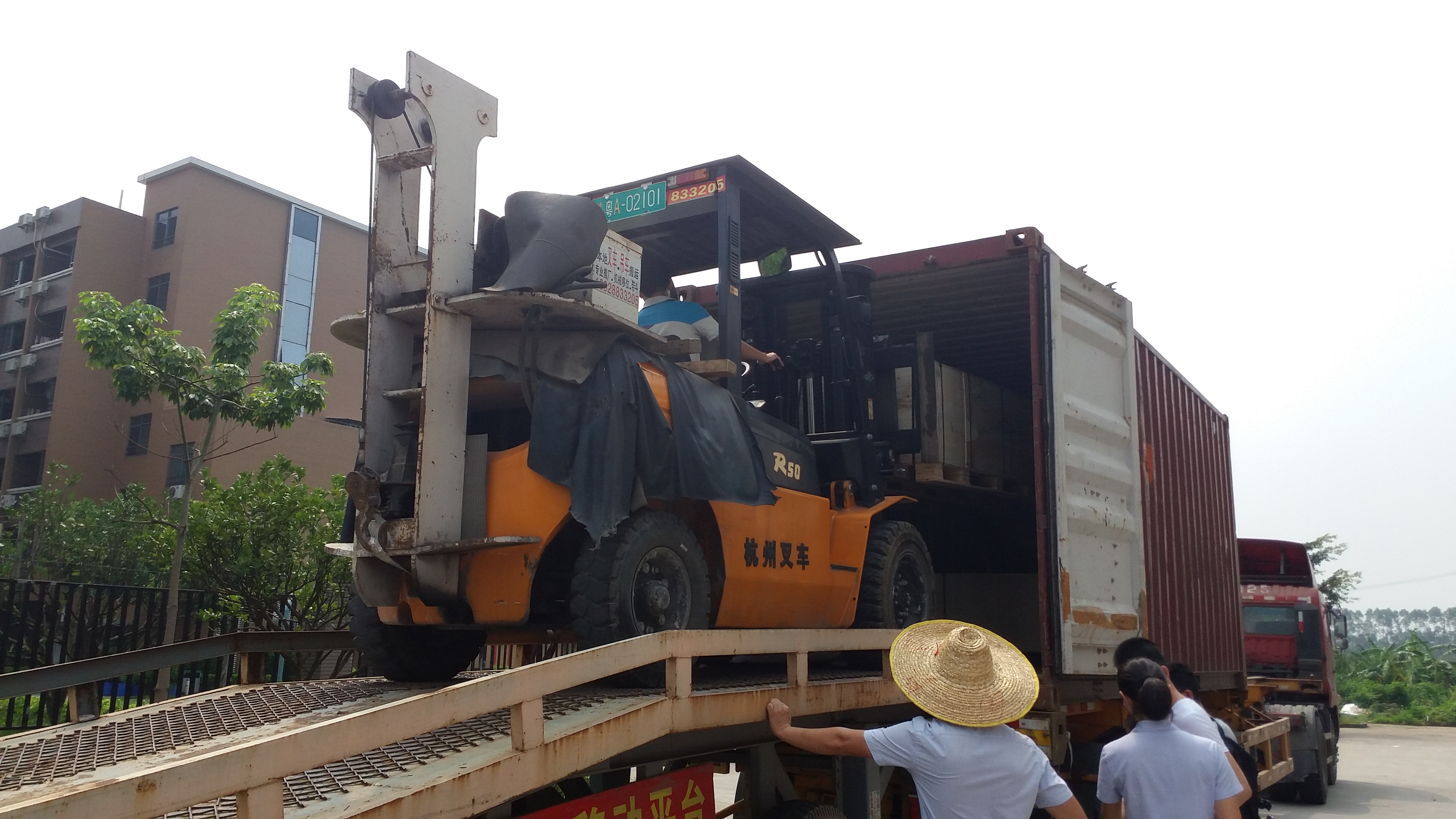

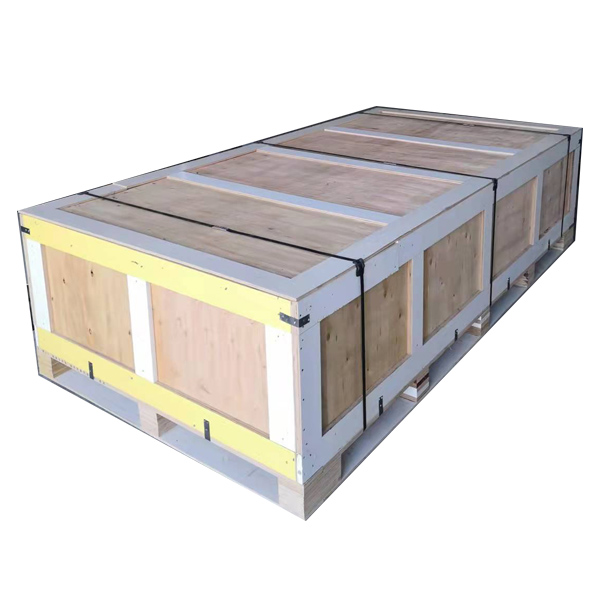

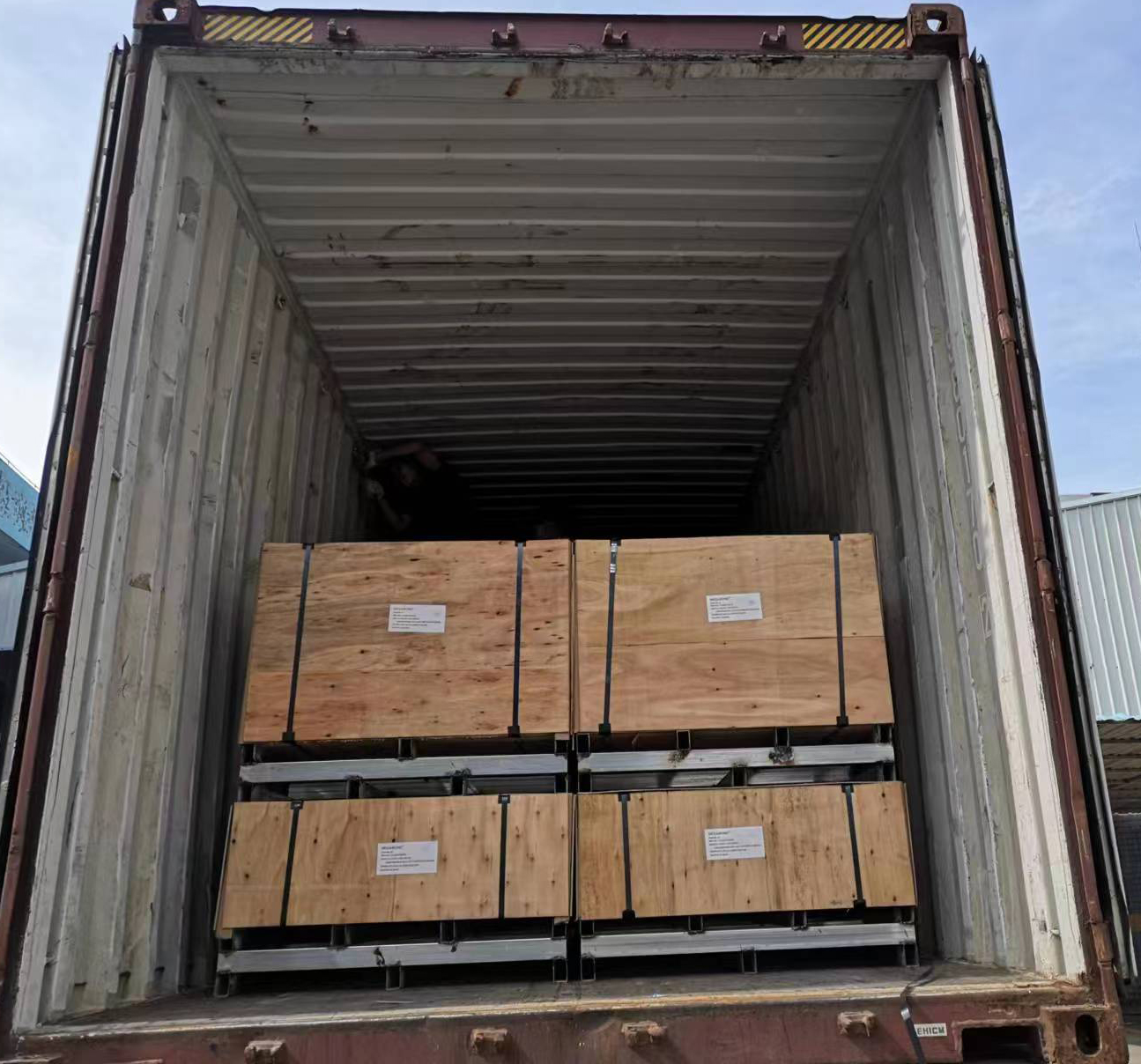

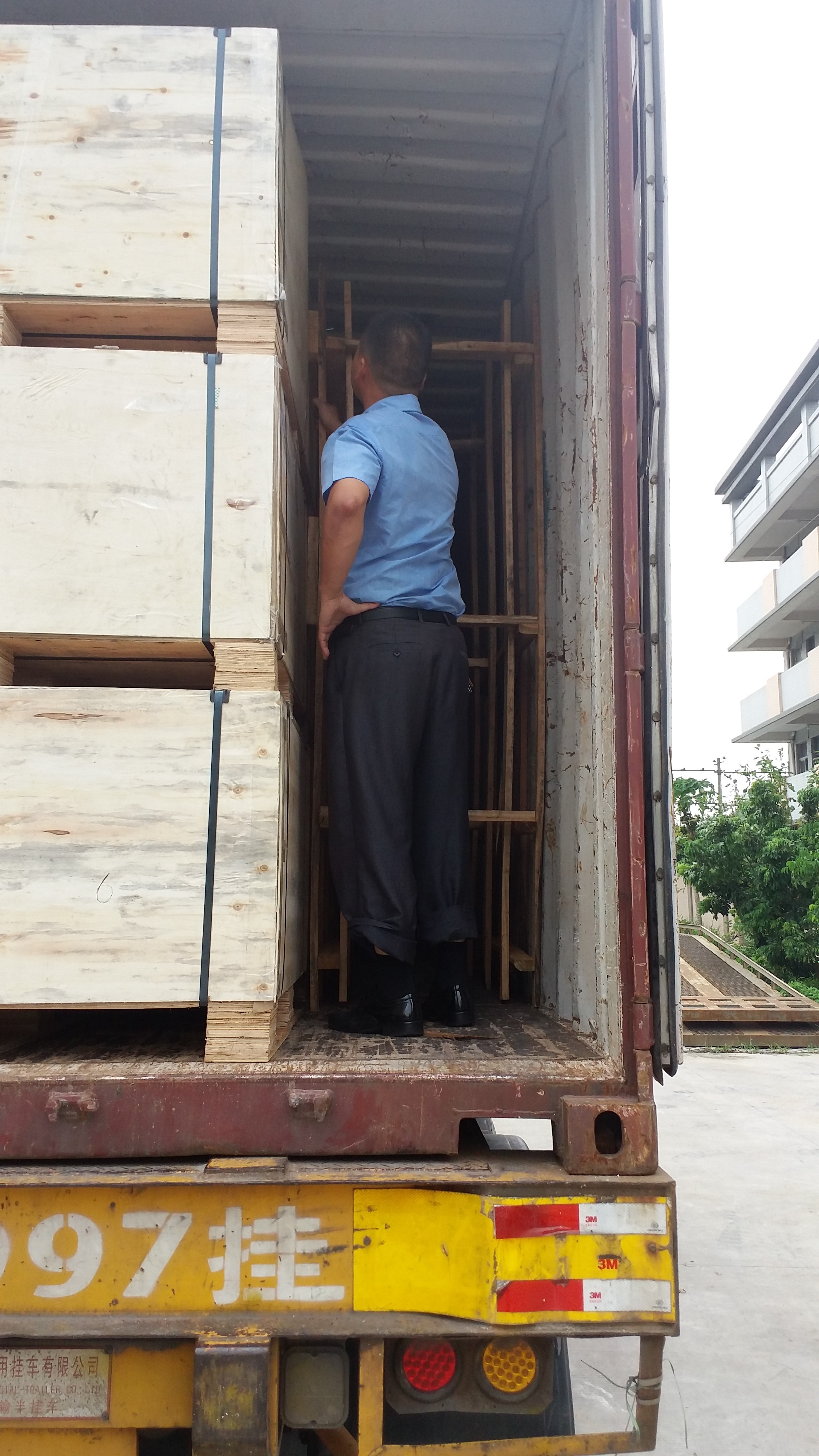

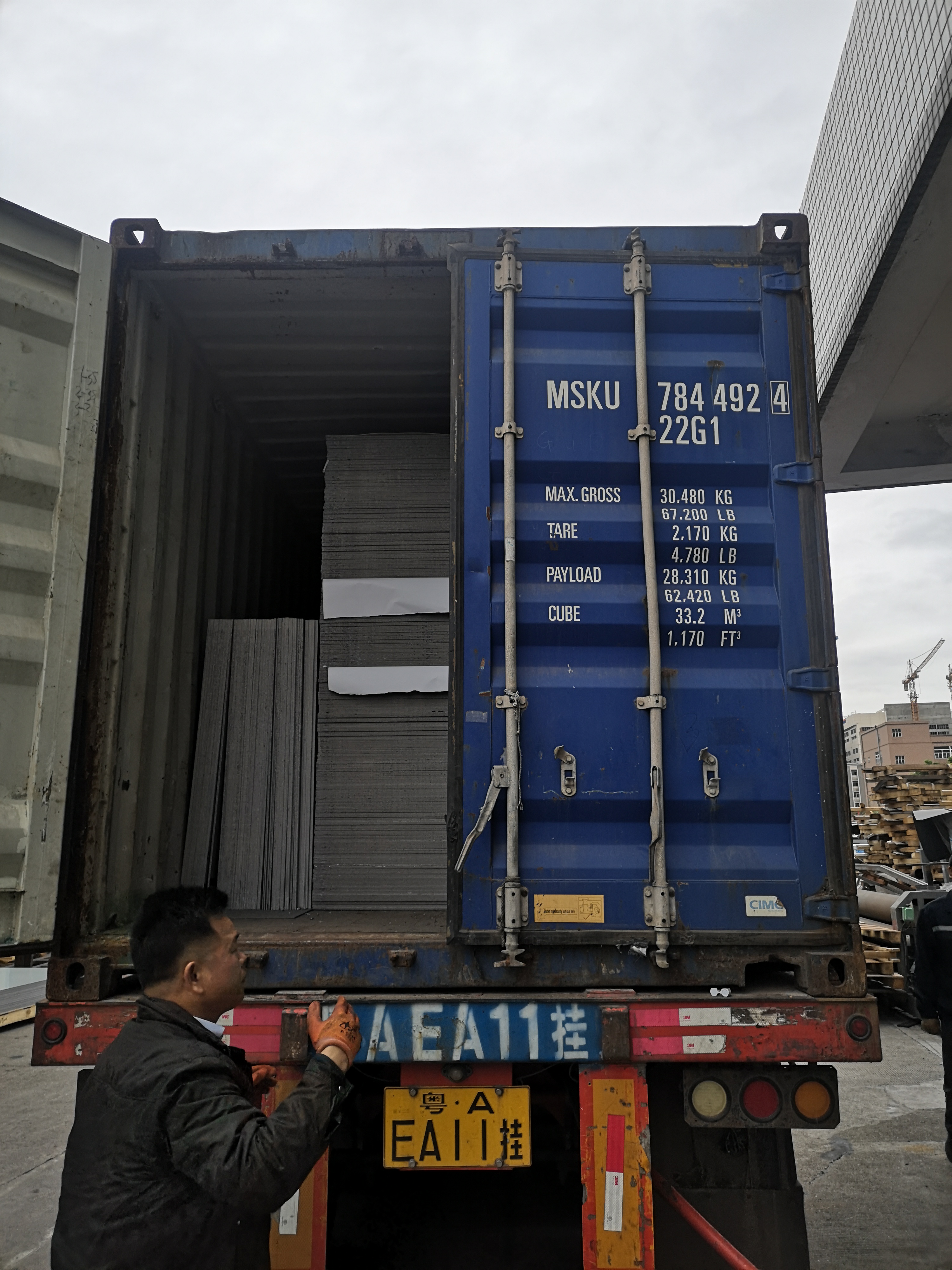

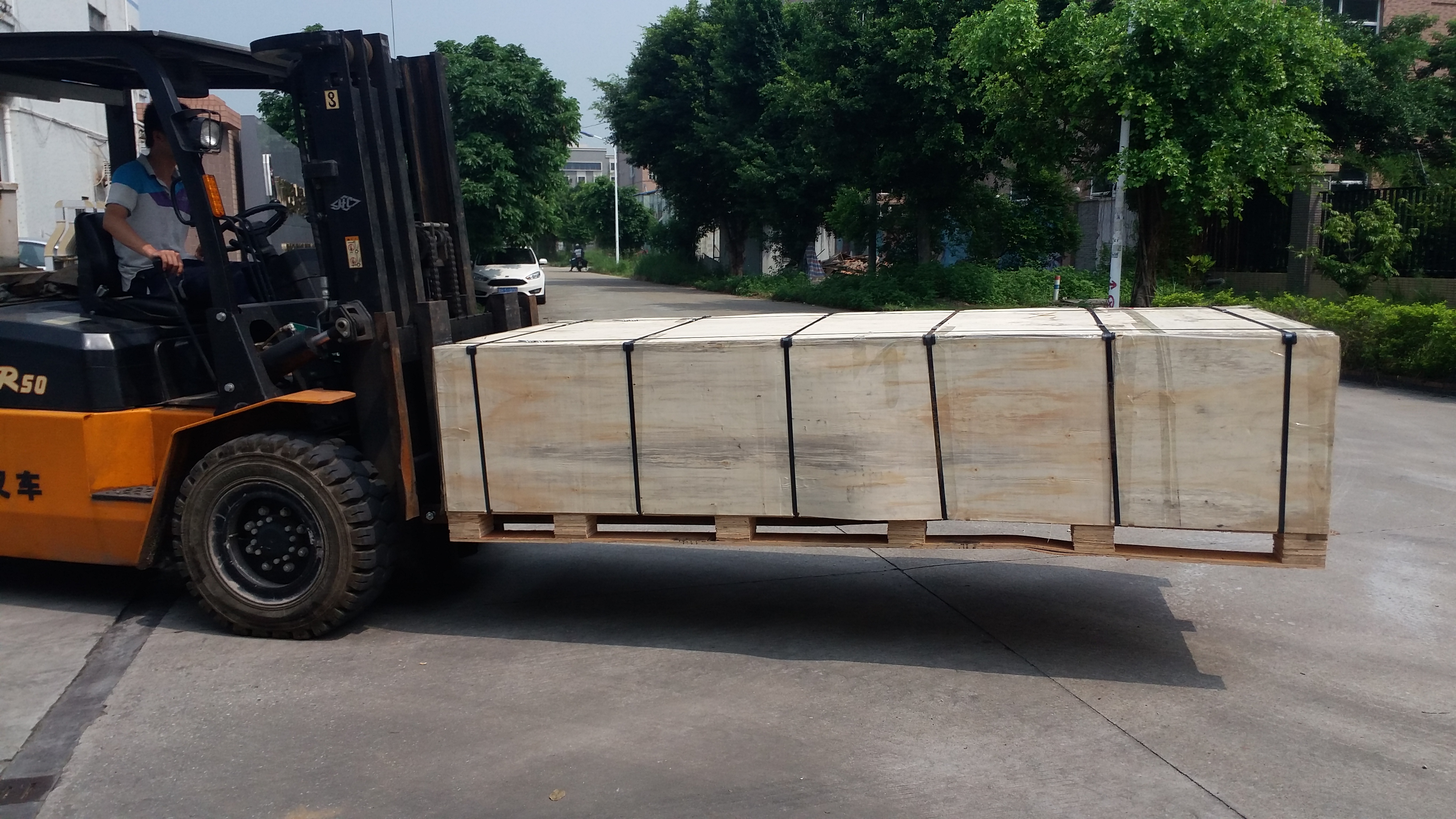

Package and Shipment
Global Exhibitions
Thailand 19's Architecture
Canton Trade Fair
Philippines WorldBex
Why Choose Us?
| 20+ Years History | Professional in manufacturing, marketing and service for 20+ years. |
| Production Capacity | 4 aluminum coils coating lines, 10 production lines, 60,000 meter square/day. Your order leadtime is warranted. |
| Selected Material Suppliers | PPG / AkzoNobel / Kynar 500 / CHALCO, fast delivery of raw materials. |
| Flexible MOQ | Small order will be accepted depending on stocking color and thickness of Aluminum coils. |
| Excellent Color Customization | Color picture, RAL / PANTONE color codes, or samples provided to us for custom matching. |
| More Width Options | Normal widths: 1220, 1250, 1500, 1570, 1575mm. Special width customization: 610mm, 900mm, 1100mm, etc. |
| OEM Available | Just offer your design information, we will print your LOGO on your protective film. |
| Superior Location | Guangzhou Nansha, close to Baiyun Airport and Canton Fair complex. |
| Strict Quality Controlling | ISO9001:2018, PPG, SGS, KYNAR500 standards verified. |
| Free Sample | Free sample offered, delivered to you within 7 days. |

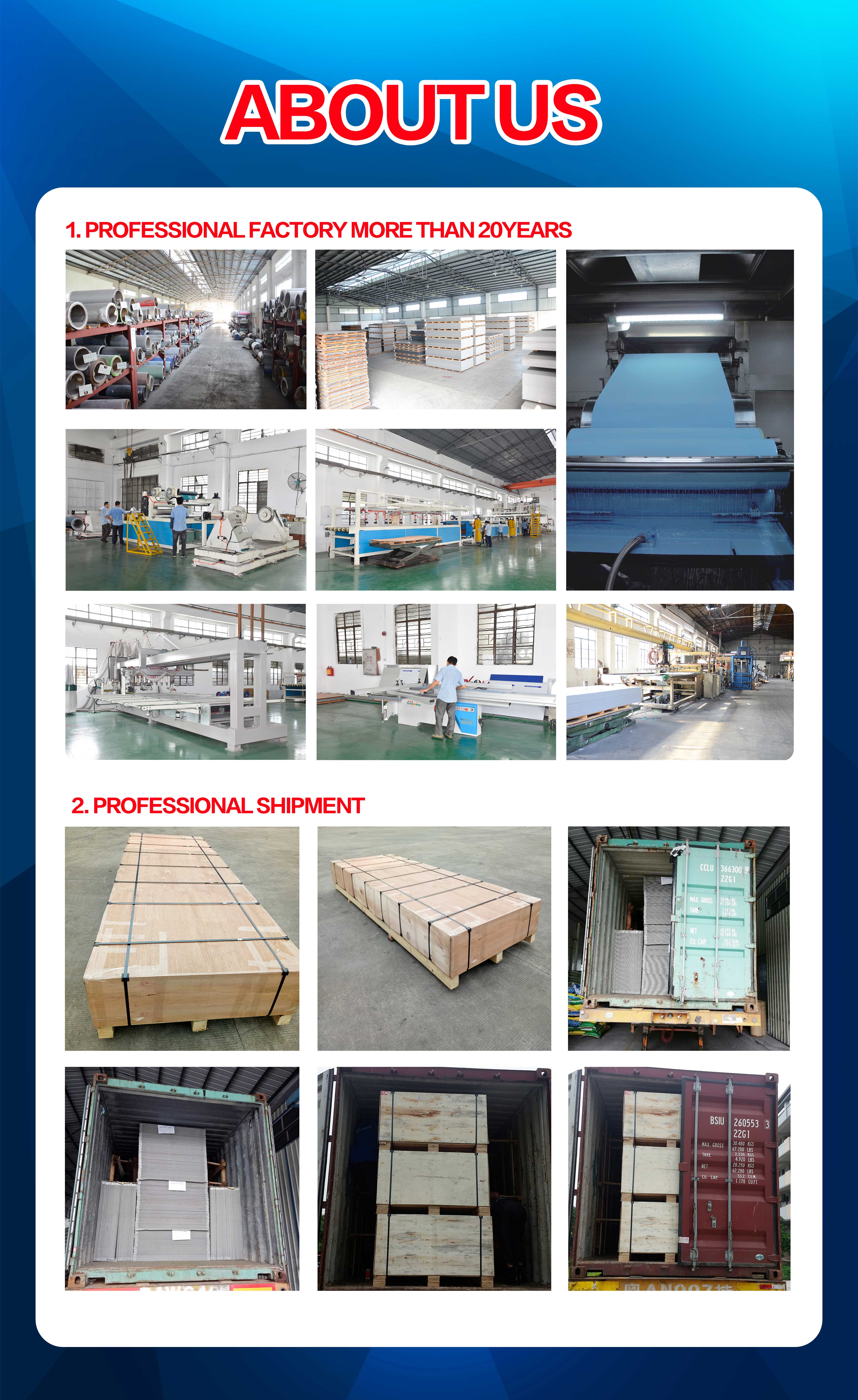

Company Profile
Guangzhou Xinghe Decorative Material Co., Ltd is one of the biggest decorative building materials enterprises in China. It is specialized in producing decorative building materials such as Fire-rated B1 Aluminum Composite Panel, Fire-rated A2 Aluminum Composite Panel, PE/PVDF/FEVE Aluminum Composite Panel, Film Coated Aluminum Composite Panel, Aluminum Honeycomb Panel Fire-rated A2, Aluminum Solid Panel Fire-rated A2, and Aluminum Ceiling Systems.
Our company was founded in 1999. The factory covers an area of 20,000 square meters, with nearly 100 personnel across advanced management, design development, and production staff. It features 12 advanced international technology production lines for aluminum composite panels capable of producing two-meter wide panel curtain walls, with an annual capacity of 15 million m² ACP and 5 million m² aluminum honeycomb panels.
Frequently Asked Questions (FAQ)
Q1 How soon can I get a reply to my inquiry?
Within 1 hour during daytime. Approximately 6-8 hours during off hours and nighttime.
Q2 Can I get a product sample before placing an order?
Yes, samples are free of charge. Only the freight is collected, which is approximately 30-60 USD for a 1kg package.
Q3 Can my order be produced under my own brand (OEM)?
Yes, we provide full OEM services and can produce all panels branded with your customized company logo on the protective film.
Q4 What is your standard delivery and lead time?
Normally 20 days after receipt of the deposit. If the required raw materials are in stock, 10 days is sufficient.
Q5 Is there a minimum order quantity (MOQ) requirement?
The MOQ depends on the aluminum coil thickness; for instance, the standard MOQ for 0.3mm aluminum skin is 600 m².
Q6 Do you supply installation accessories and match competitor pricing?
Yes, we provide comprehensive installation accessories including aluminum extrusions and sealants. Price matching can be evaluated depending on the detailed specifications and order quantities. MEGABOND has over 22 years of specialized manufacturing experience as a verified trusted supplier.
