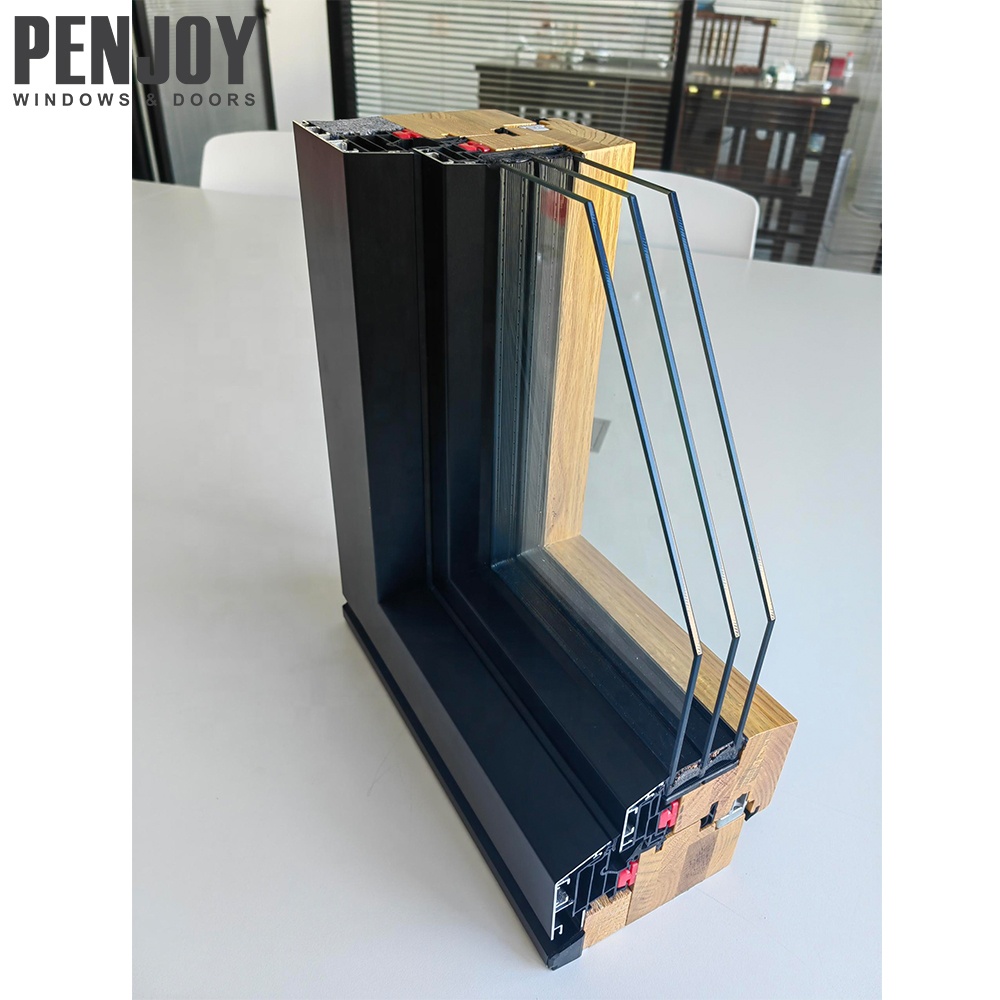

Penjoy Canada Standard Passive House Wood windows Customized Alu-wood Triple Glazed windows
Product Description
PRODUCT DESCRIPTION
Passive house is a building standard that is truly energy efficient, comfortable, affordable and ecological at the same time. It's a construction concept that can be applied by anyone and that has stood the test of practice.
A passive house window for example can reduce heat losses by more than 70 % compared to existing double glazed windows. Passive house buildings not only save money over the long term, but also are surprisingly affordable to begin with. "Affordable Luxury" is guiding us to bring comfortable, quiet and luxury life to more and more families.

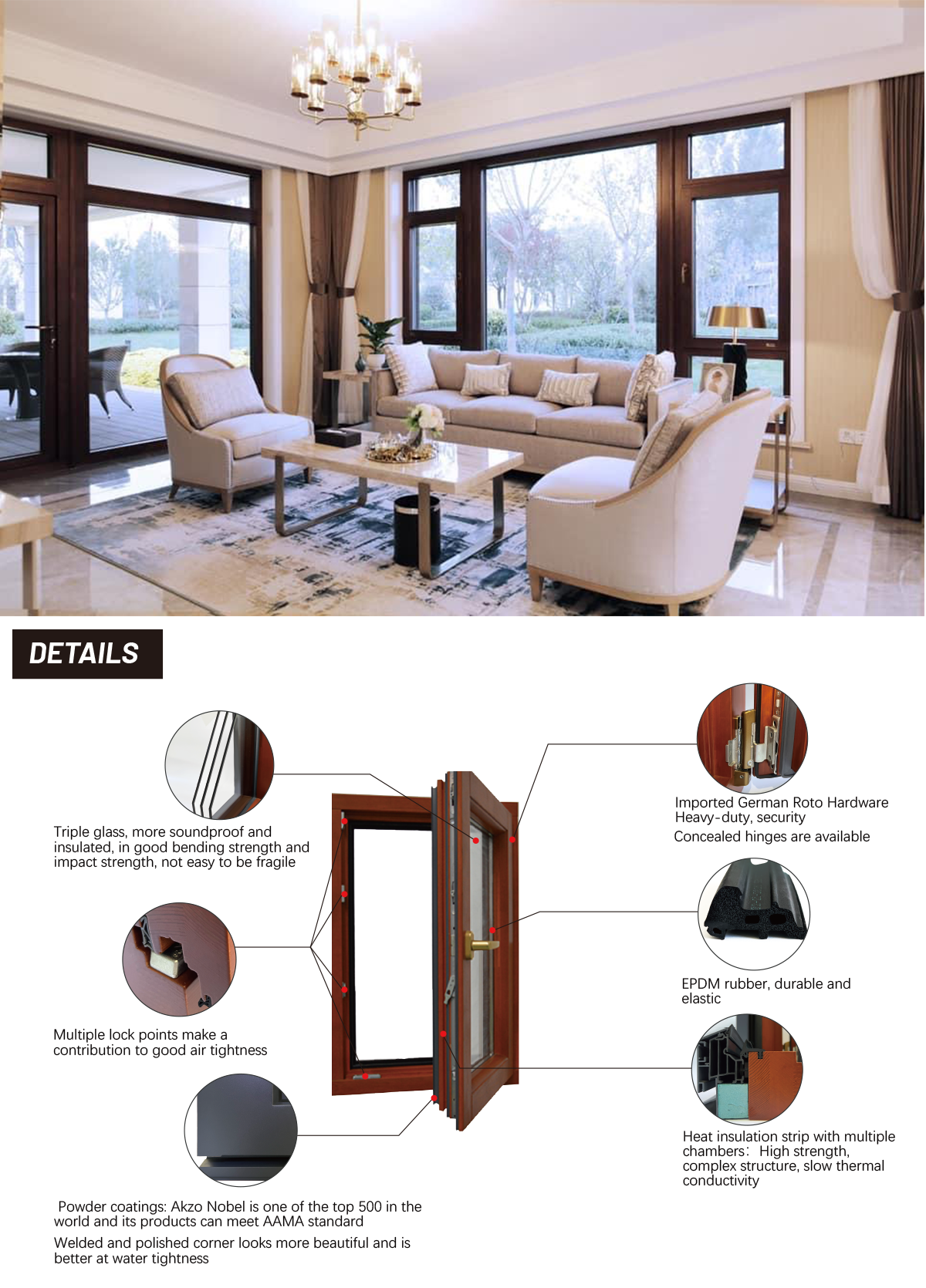

Performance Highlights

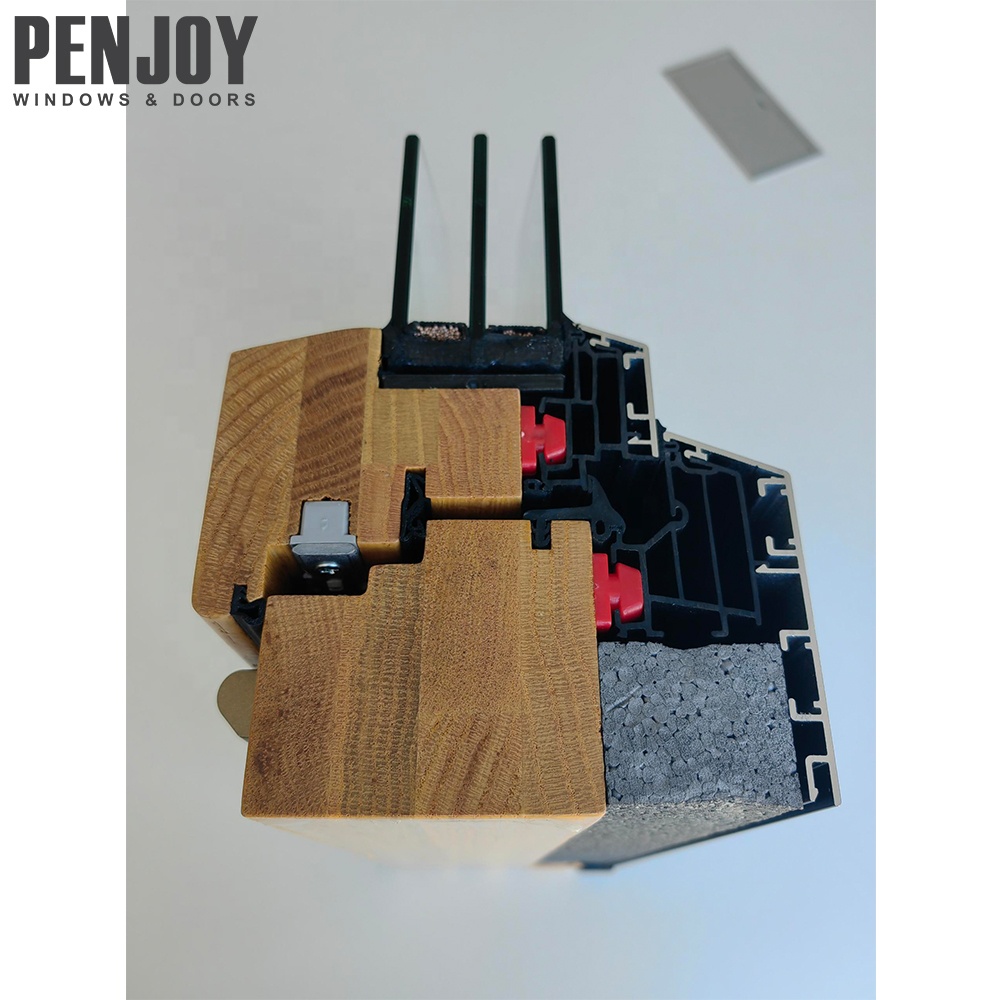

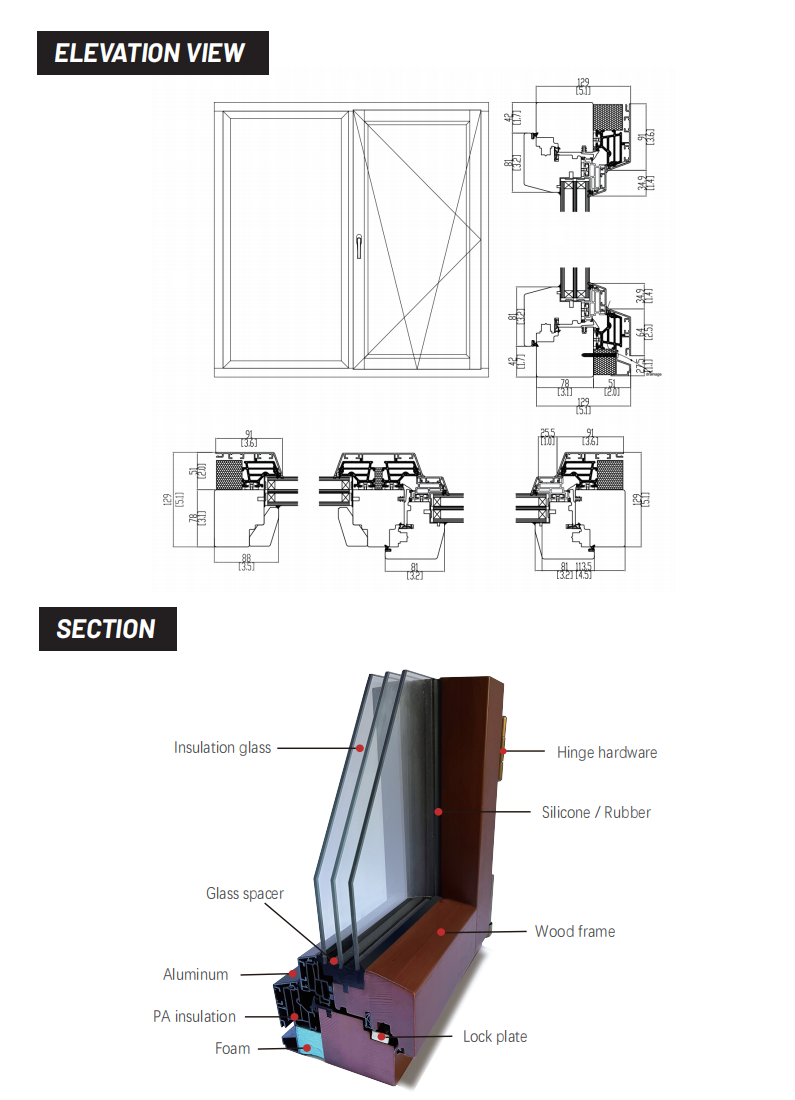

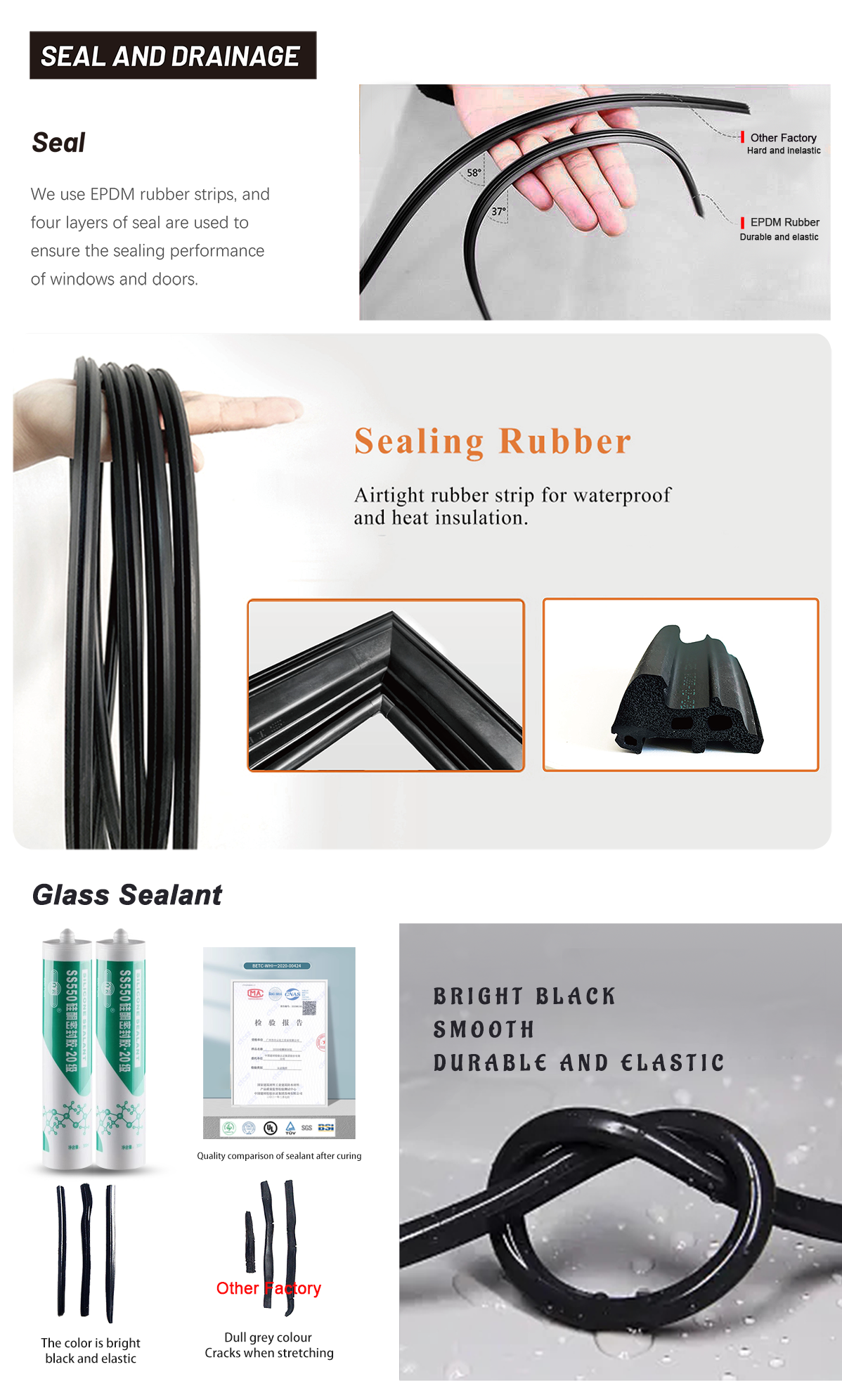

Our best Performance: With total 130mm frame thickness and 4 layers of rubber strip, the wind load pressure and water penetration achieved the highest level of windows standard.

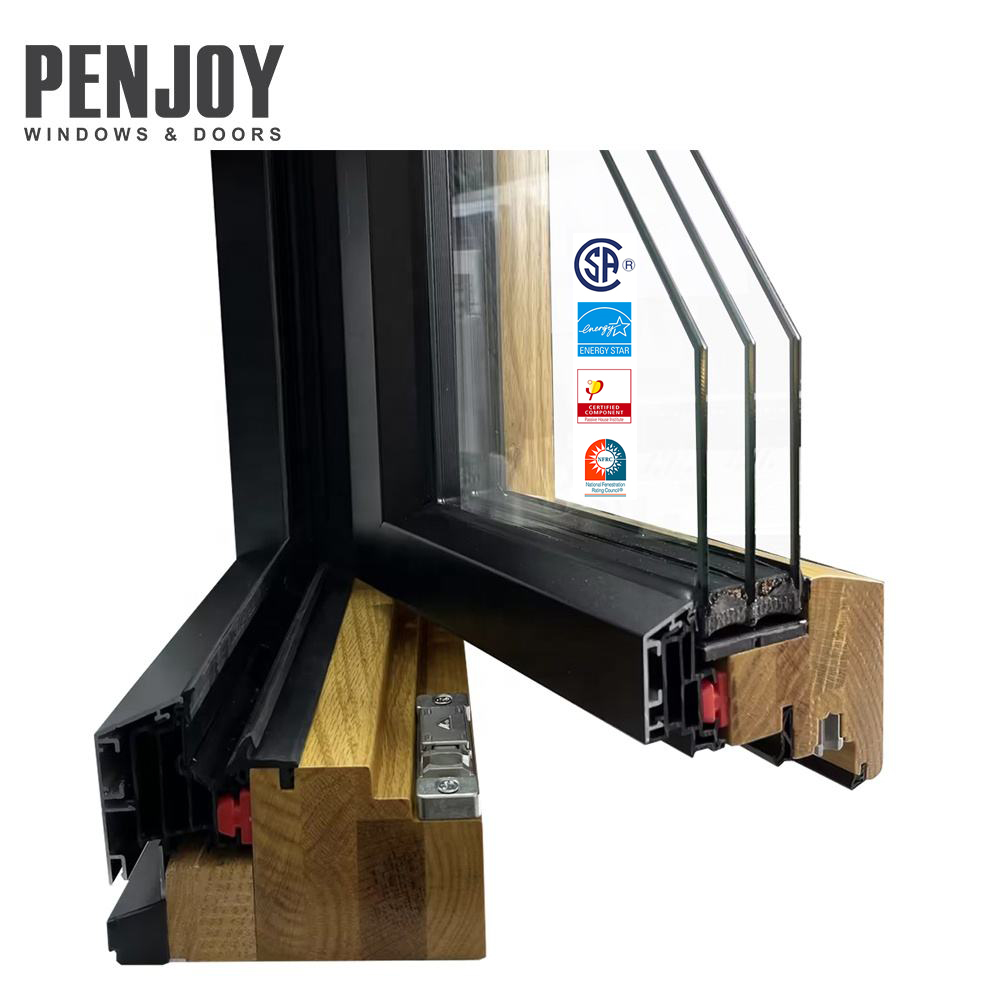

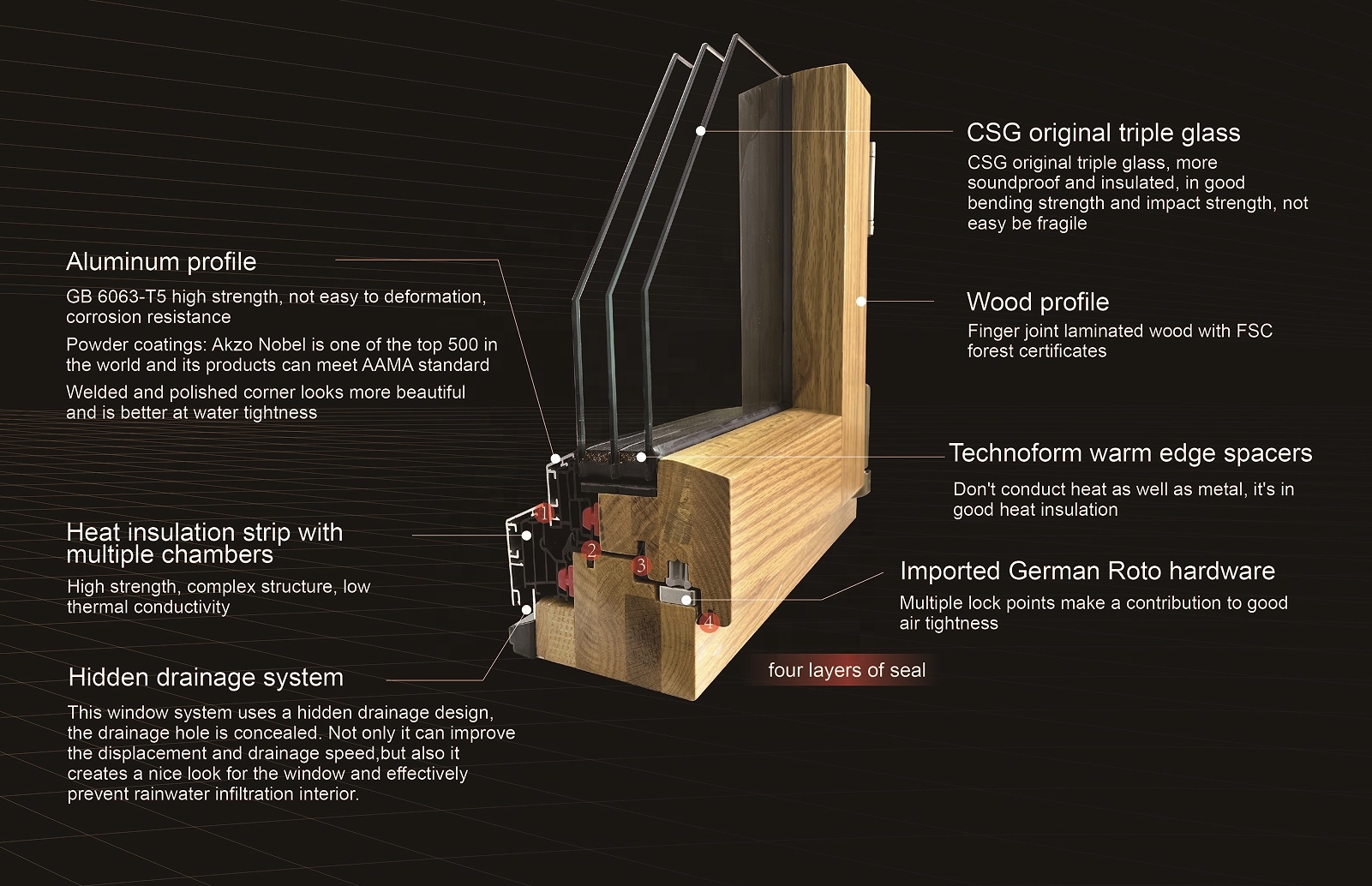

Our best energy rating: PH 130 has triple glass 5+16ar+5 low-E+16ar+5 low-E glass, warm edge spacers and argon gas filled, also the wood frame is not conductive as aluminum which contribute to the insulation performance also. The U-value of the entire window can reach 0.789W/(m²·K).
Eco Coating: The surface of wood is treated by environmental friendly water based lacquer, high specification coating process with "2 times primer, 2 times finish". Water based lacquer German Remmers is purely extracted from plant, which is harmless to your health.

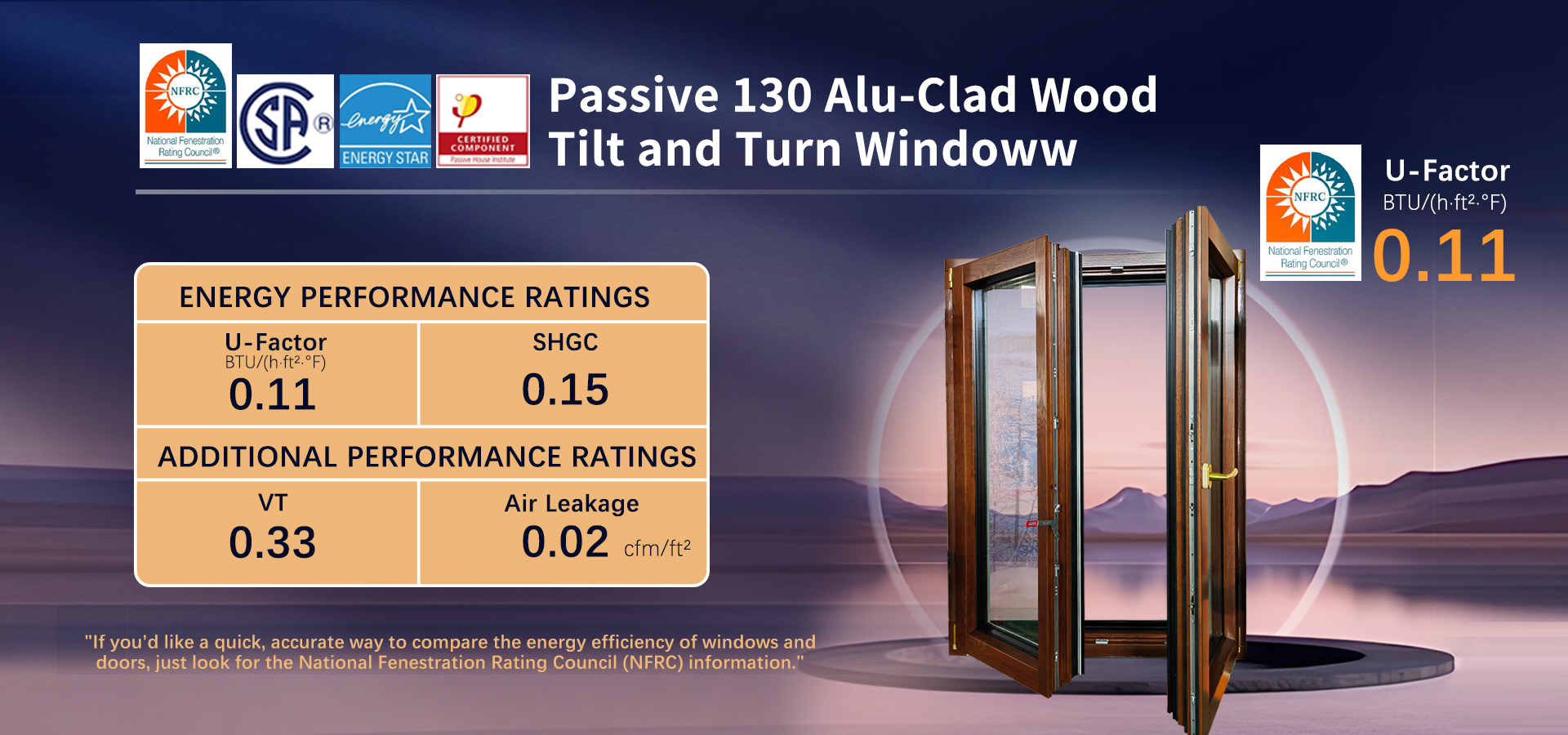

Certifications: This product has earned CSA certification and PHI certification, along with an NFRC certificate and meets Energy Star standards, the best U-Factor is 0.11 BTU/(h·ft²·°F).
Details determine quality; genuine materials withstand the test.

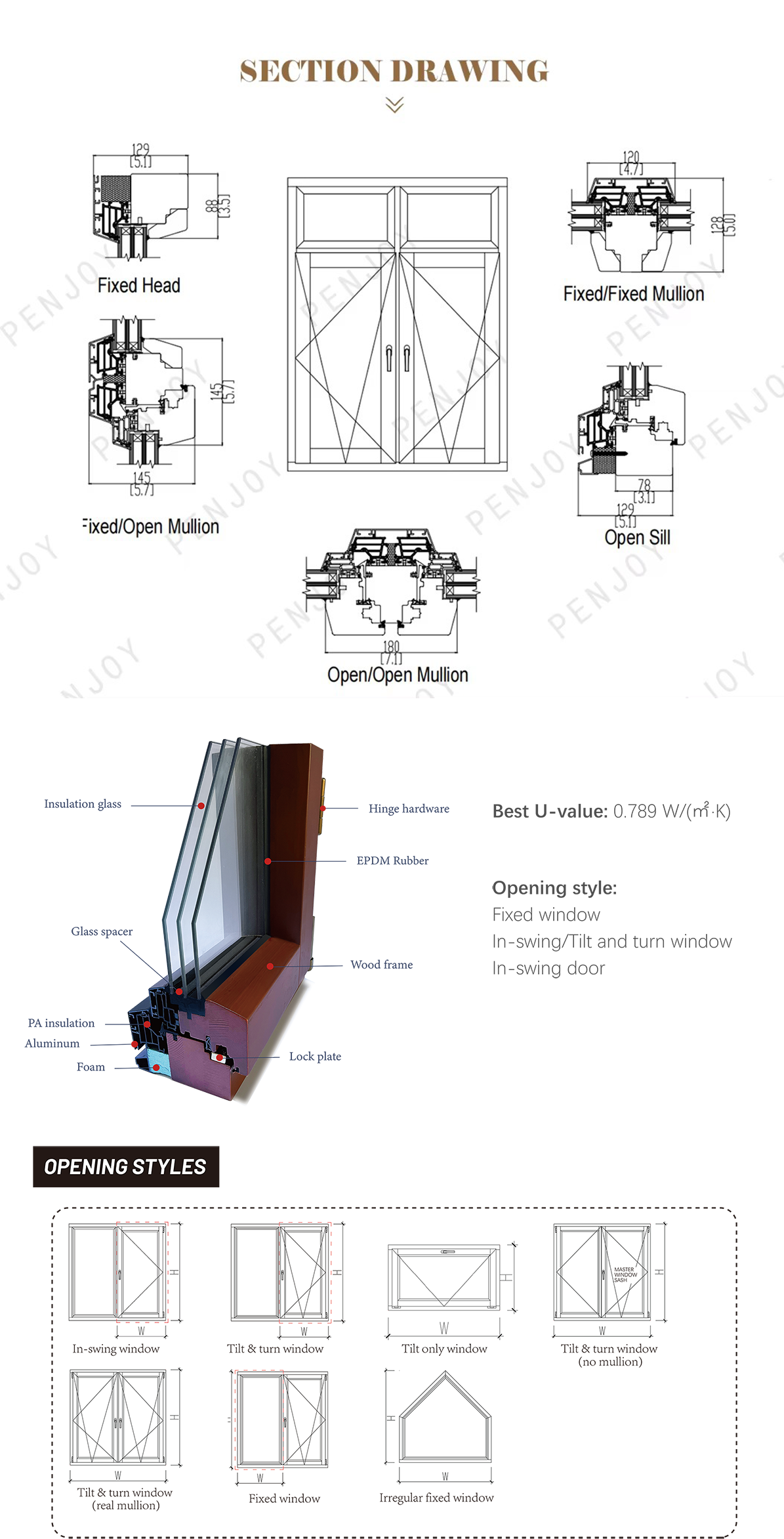

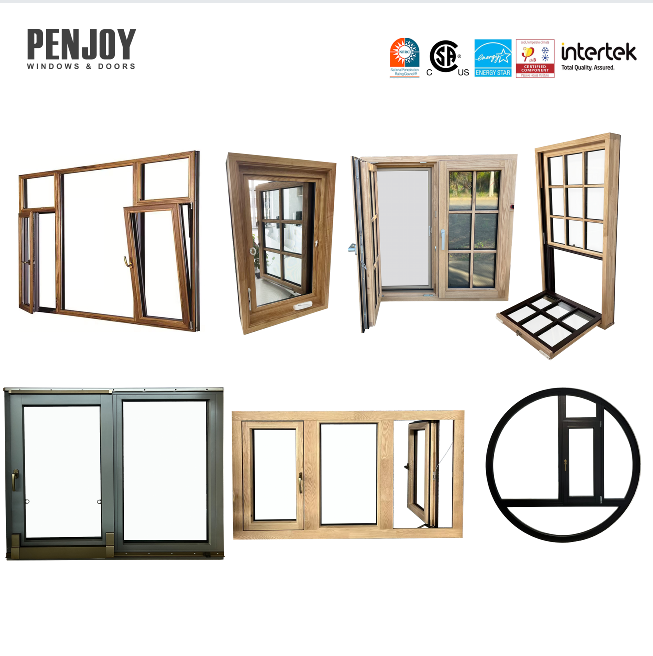

We can customize various styles of the following types of openings: Fixed windows, In-swing/Tilt and turn windows, and In-swing doors.
| Frame profile | Aluminum clad wood |

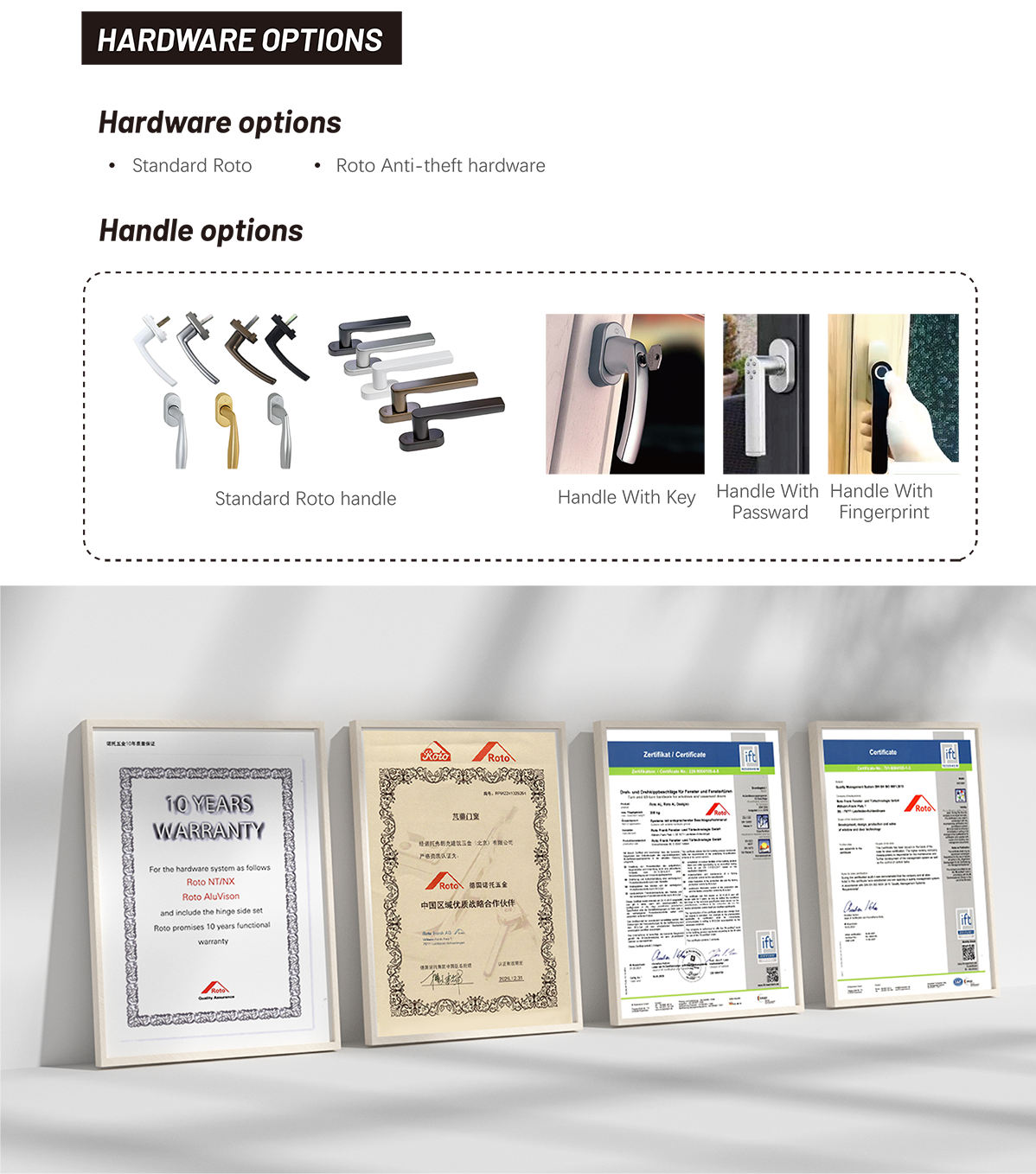

| Hardware | Imported German hardware: ROTO, Hoppe, Siegenia etc… |
| Finish | Aluminum: AKZO powder coating; Wood: Imported German water lacquer painting (Remmers is available) |
| Open style | Tilt and turn window; fixed window; turn only; tilt only; Hinge door |
| Glass | All tempered glass. Low-e, warm edge spacer, argon gas are available (additional configuration) |

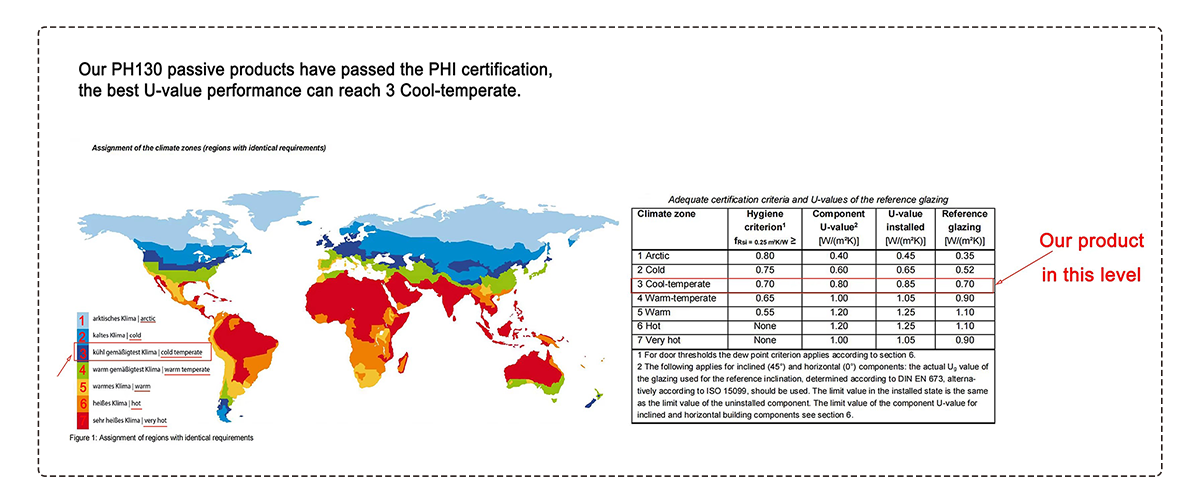

Our PH130 passive products have passed the PHI certification, the best U-value performance can reach 3 Cool-temperate.

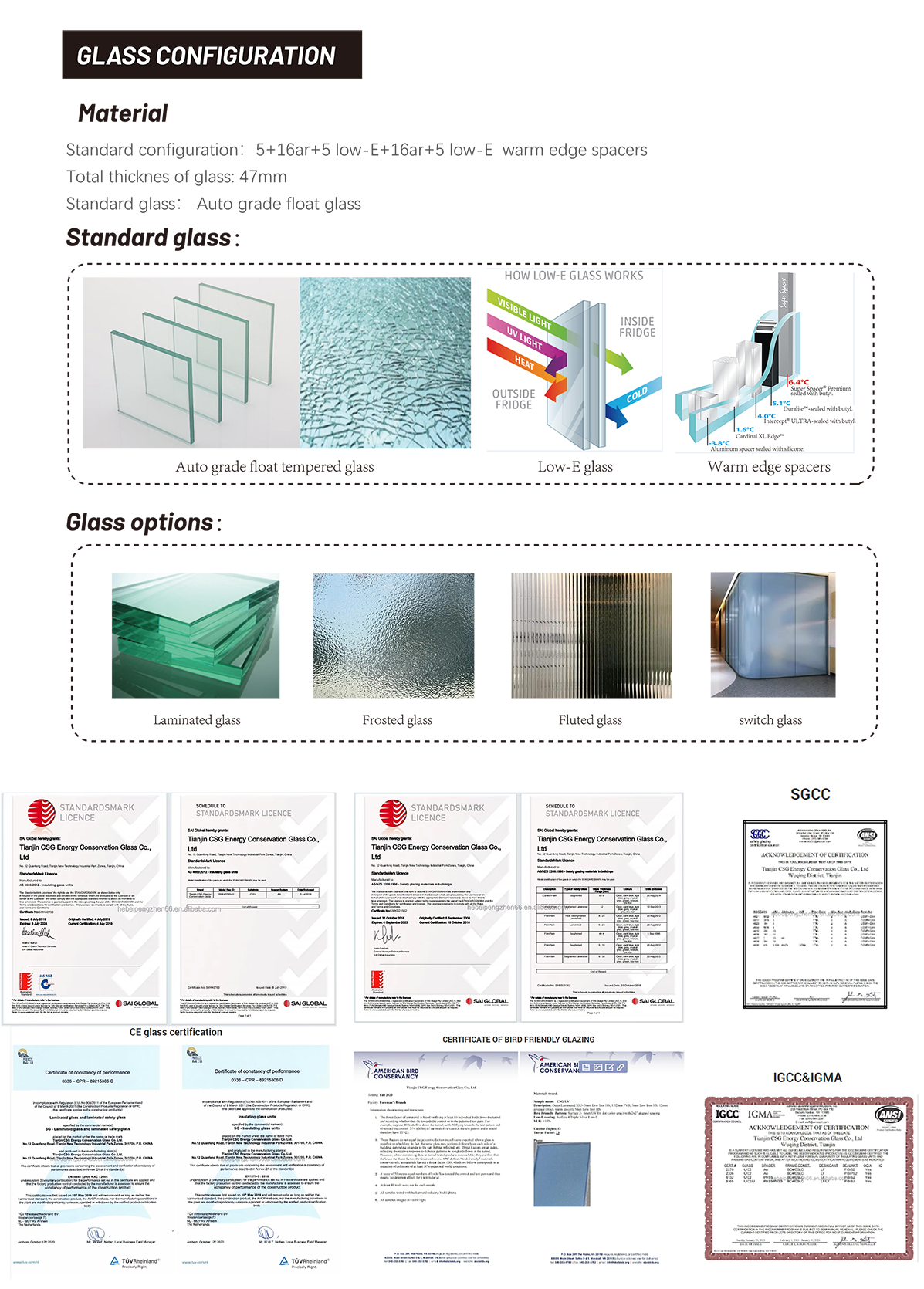

GLASS CONFIGURATION
Glass types can be customized.
Standard configuration: 5+16ar+5 low-E+16ar+5 low-E warm edge spacers
Total thickness of glass: 47mm | Standard glass: Auto grade float glass
Standard configuration: 5+16ar+5 low-E+16ar+5 low-E warm edge spacers
Total thickness of glass: 47mm | Standard glass: Auto grade float glass

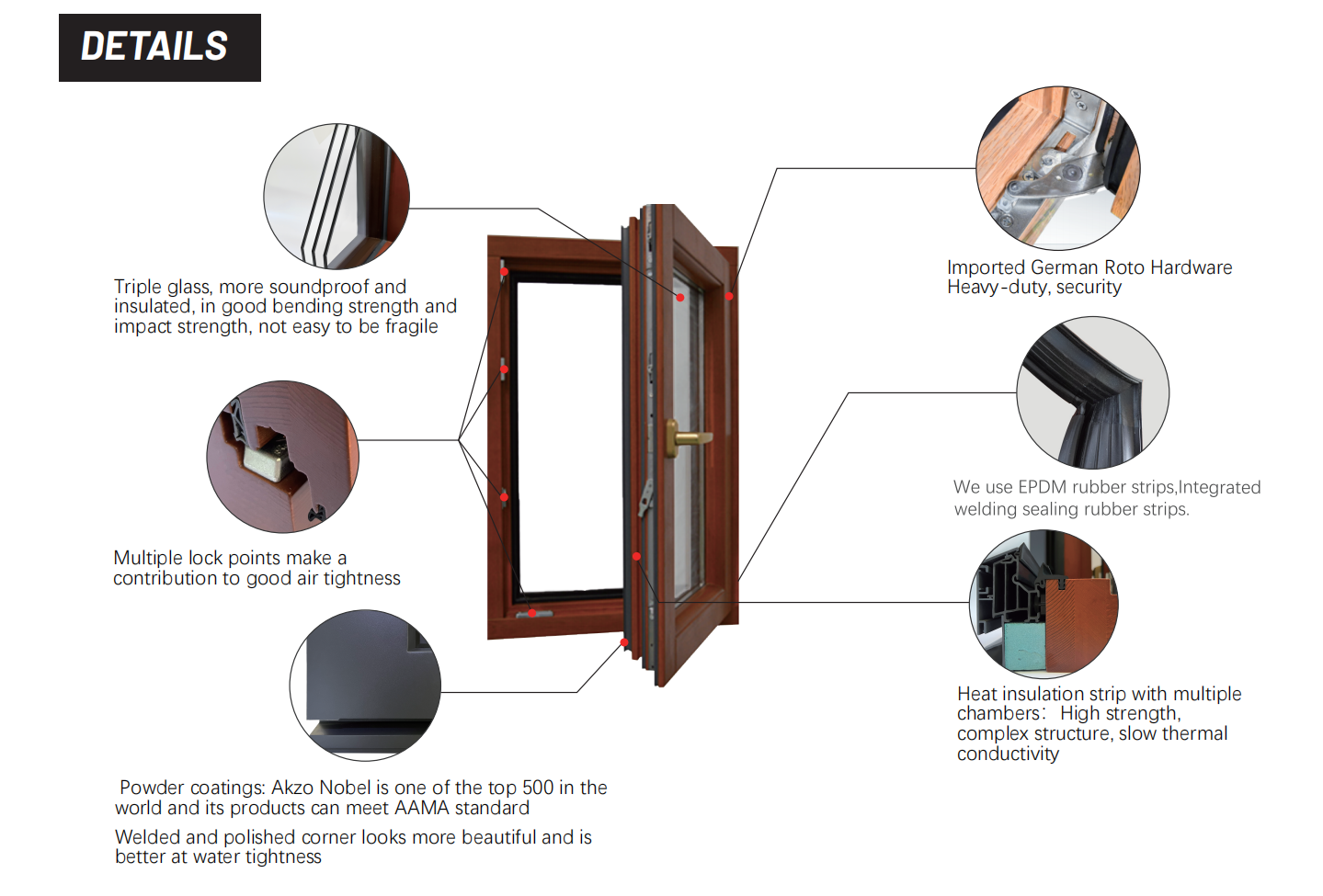

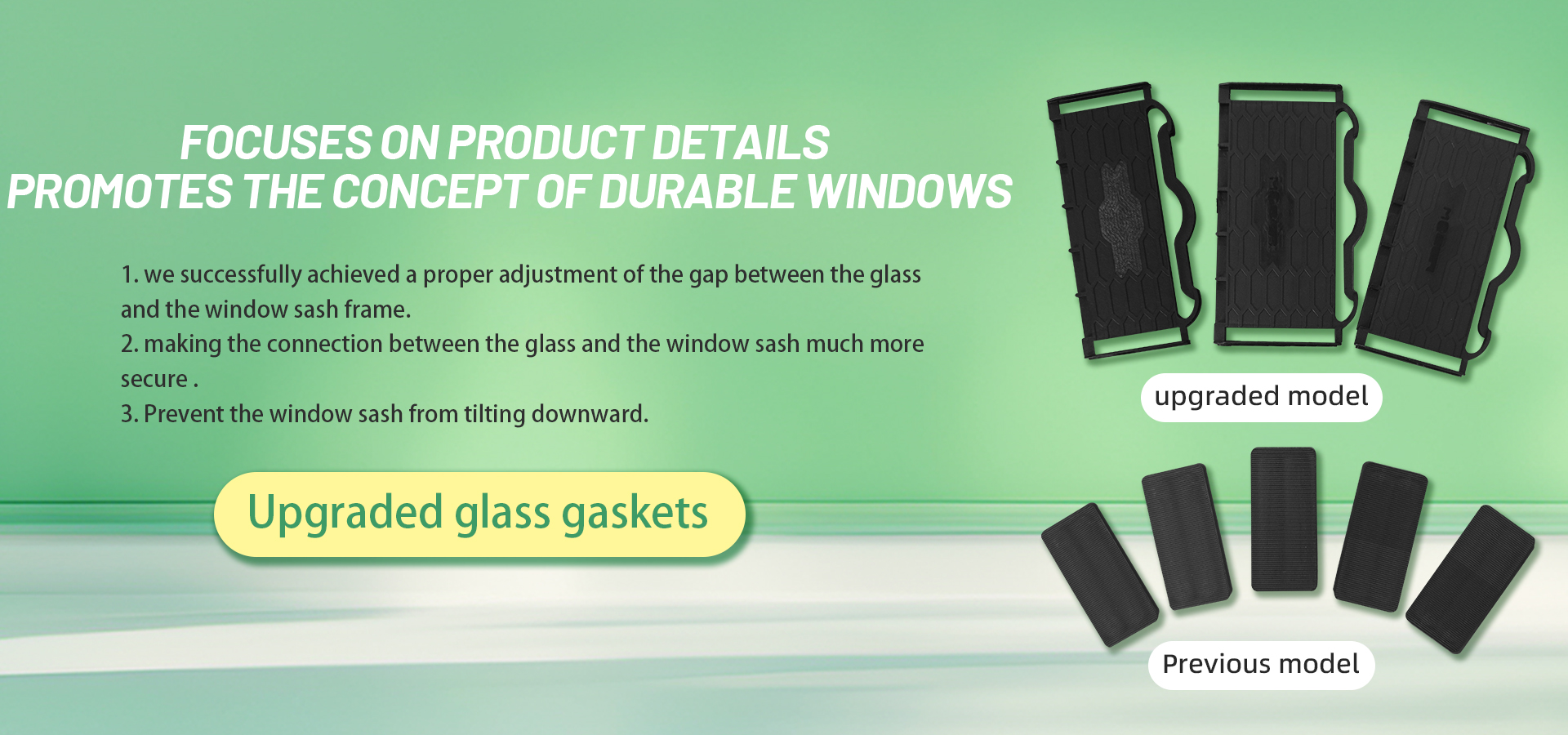

FOCUSES ON PRODUCT DETAILS PROMOTES THE CONCEPT OF DURABLE WINDOWS
1. We successfully achieved a proper adjustment of the gap between the glass and the window sash frame.
2. Making the connection between the glass and the window sash much more secure.
3. Prevent the window sash from tilting downward.
2. Making the connection between the glass and the window sash much more secure.
3. Prevent the window sash from tilting downward.
CUSTOMIZABLE COLORS & MATERIALS
Our standard aluminum color: black, white, grey and brown. More colors can be customized according to the RAL color chart.
There are many options of wood type, such as oak, pine, walnut, teak… Oak and pine are standard.
There are many options of wood type, such as oak, pine, walnut, teak… Oak and pine are standard.
TIMBER & COATING EXCELLENCE

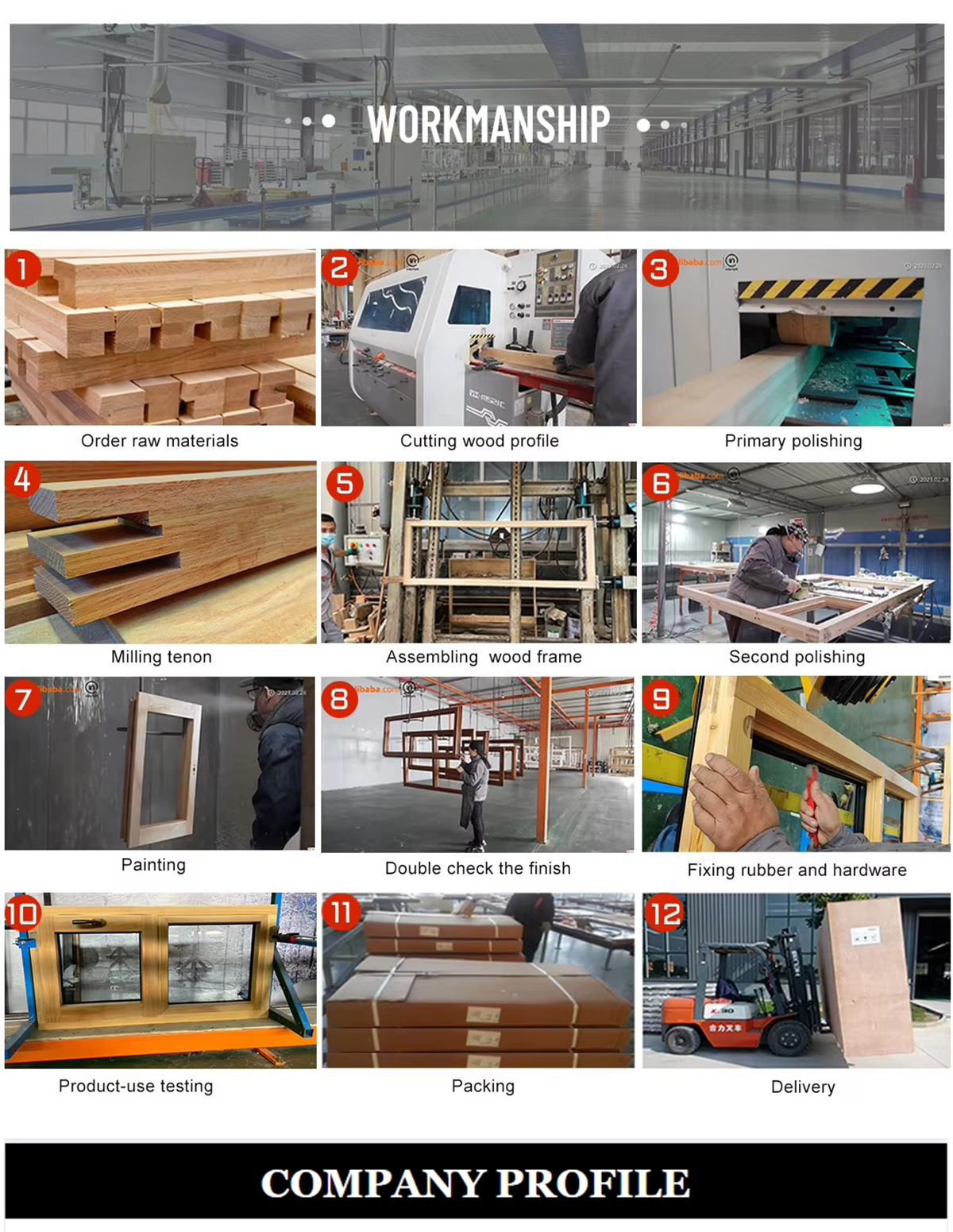

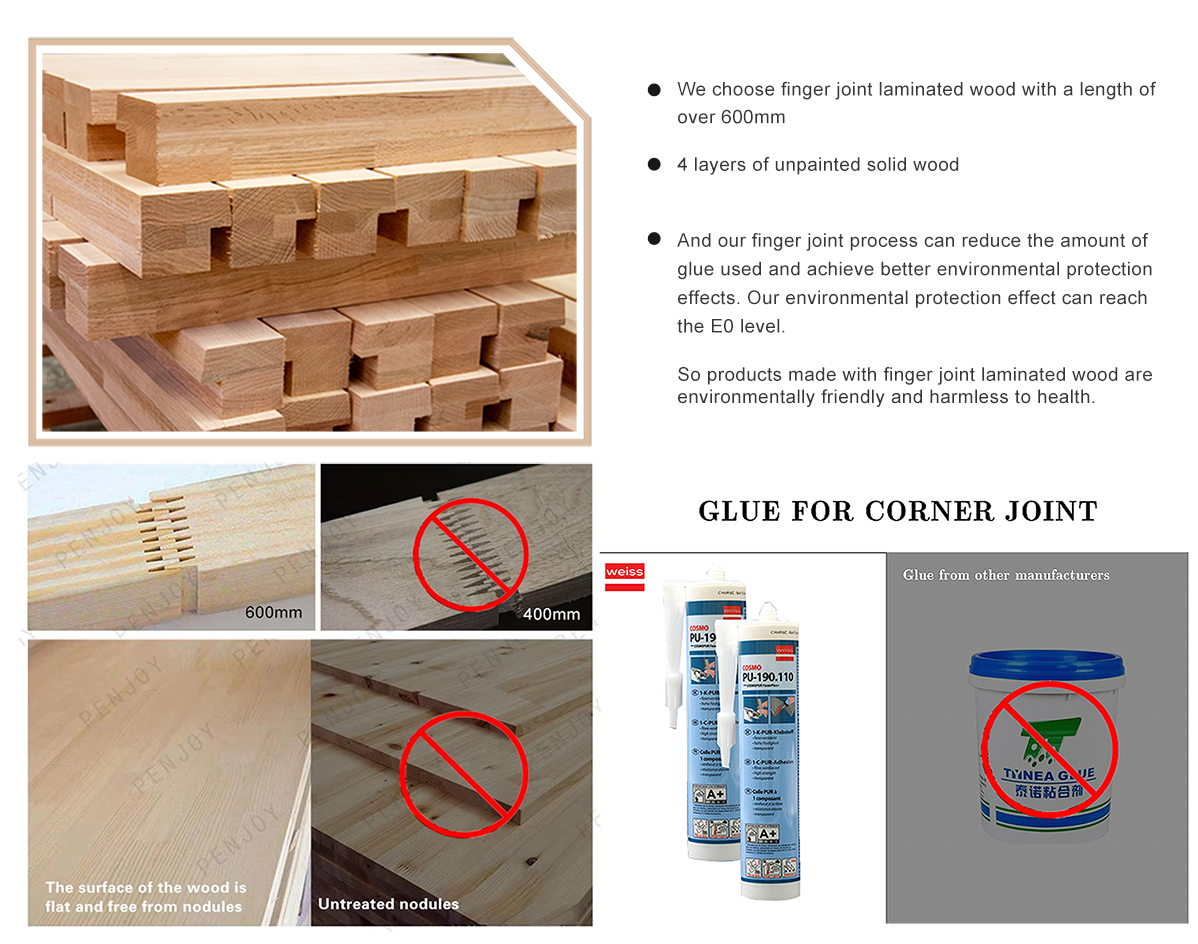

We choose finger joint laminated wood with a length of over 600mm, featuring 4 layers of unpainted solid wood. Our finger joint process can reduce the amount of glue used and achieve better environmental protection effects, reaching the E0 level. Products made with finger joint laminated wood are environmentally friendly and harmless to health.

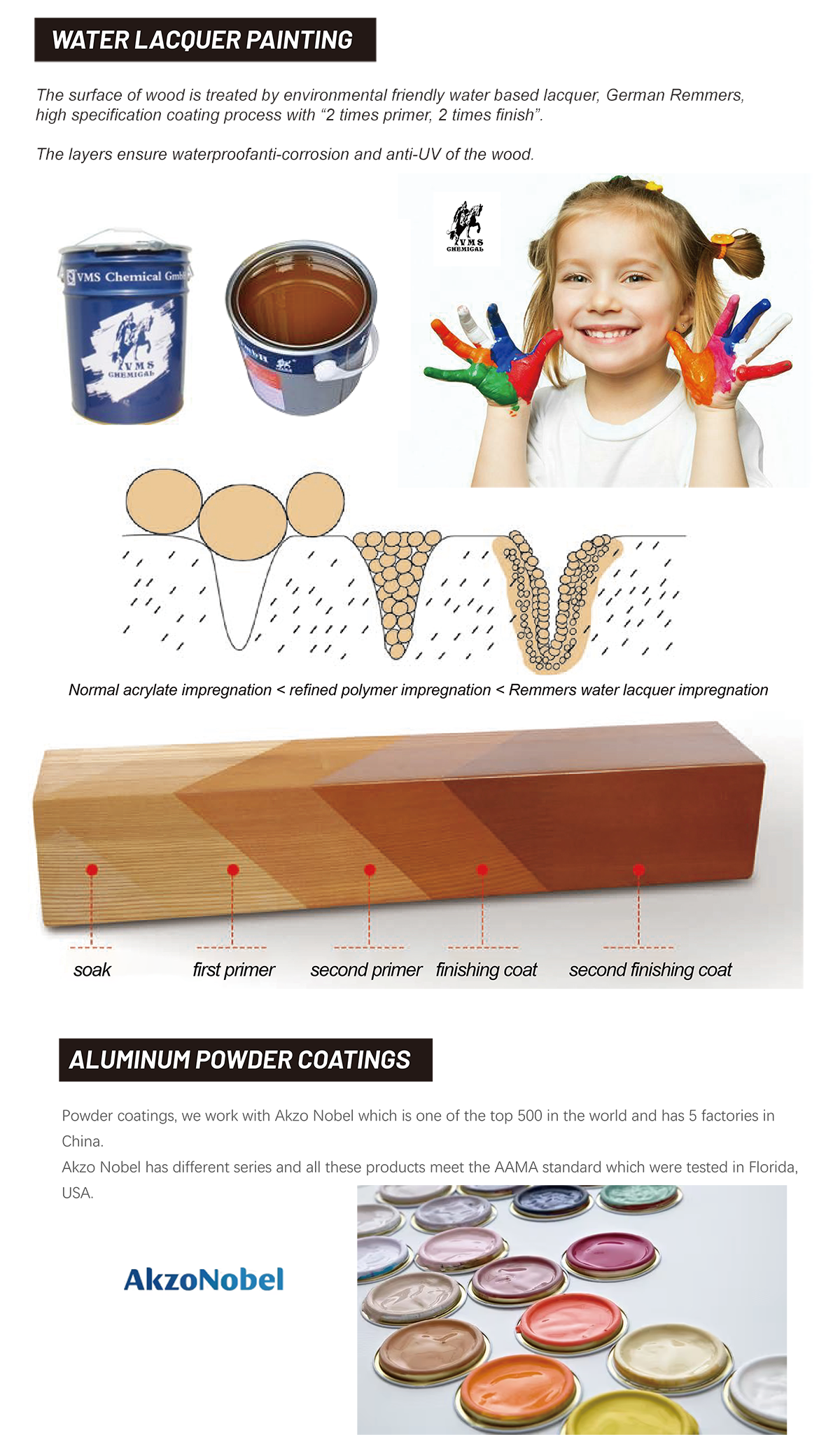

WATER LACQUER PAINTING
The surface of wood is treated by environmental friendly water based lacquer, German Remmers high specification coating process with "2 times primer, 2 times finish". The layers ensure waterproof, anti-corrosion and anti-UV of the wood.
ALUMINUM POWDER COATINGS
Powder coatings, we work with Akzo Nobel which is one of the top 500 in the world and has 5 factories in China. Akzo Nobel has different series and all these products meet the AAMA standard which were tested in Florida, USA.

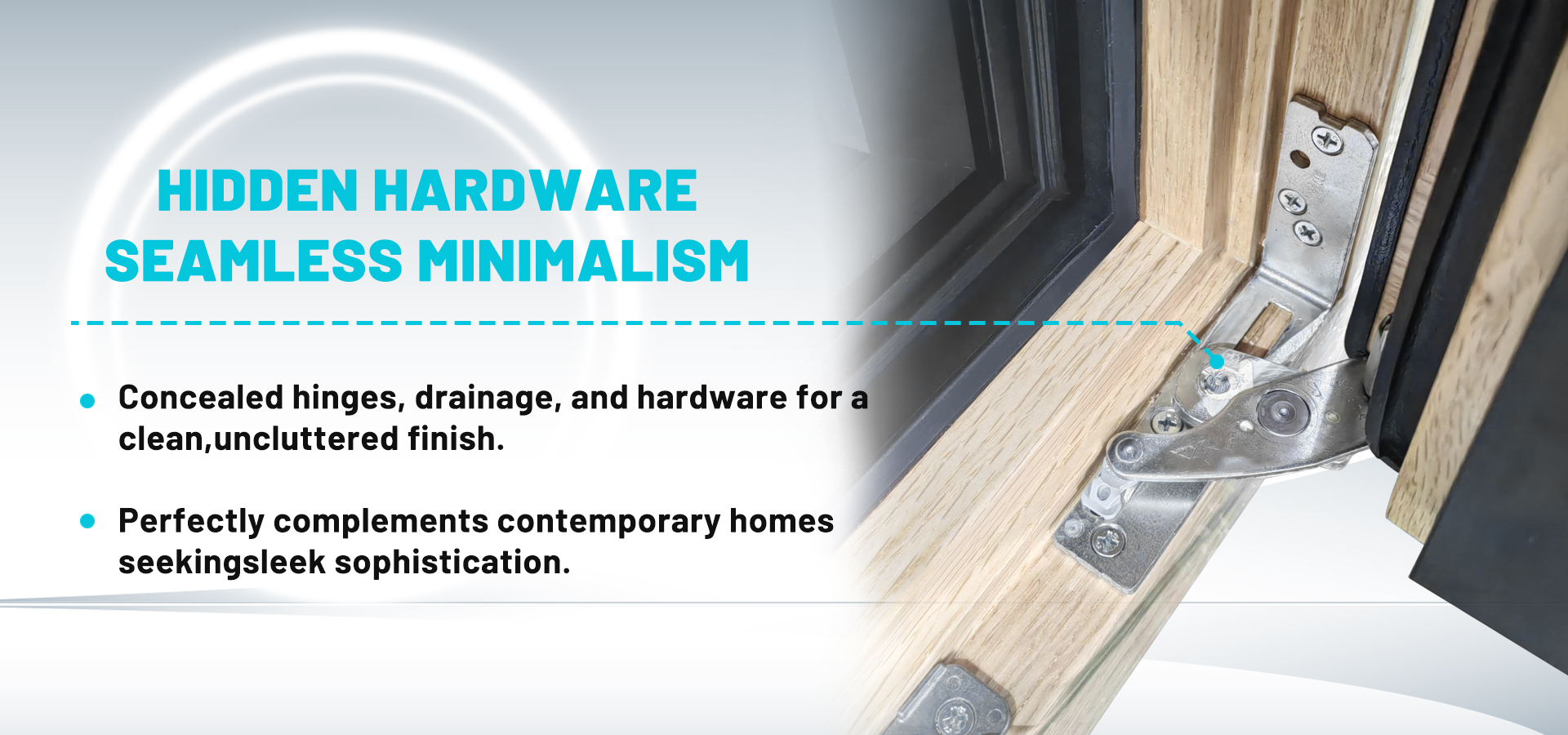

HIDDEN HARDWARE SEAMLESS MINIMALISM

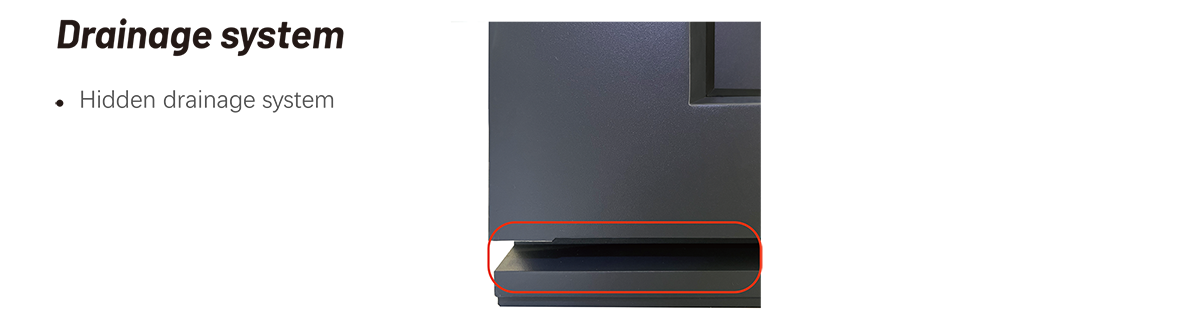

Concealed hinges, drainage, and hardware for a clean, uncluttered finish. Perfectly complements contemporary homes seeking sleek sophistication.
We utilize the German brand Noto and have established a strategic cooperative partnership with them. This collaboration ensures a ten-year warranty on our products, offering peace of mind regarding quality.

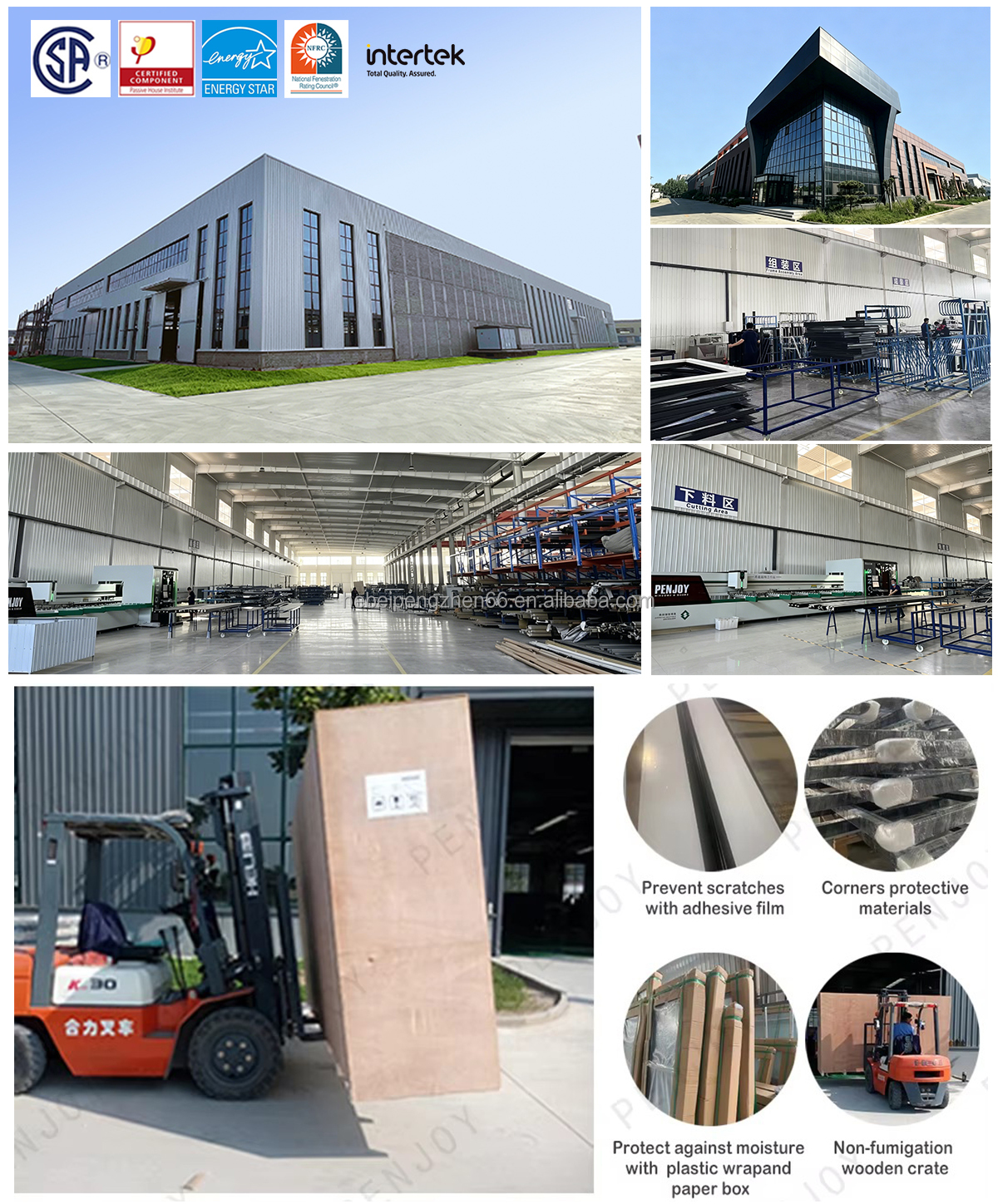

ABOUT HEBEI PENJOY
Hebei Penjoy Windows Doors Co.,Ltd is a professional windows and doors manufacturer. We are located in Dingxing County, Baoding city, Hebei province and 60 km far from Beijing Daxing Airport. The products include Thermal break aluminum windows doors, wood windows doors and passive house windows doors.
Our main market is America, Canada, Australia and New Zealand, and we have developed related products due to the local windows standard and installation methods. The created new models were all tested as per the four countries' standard and achieved very high level standard. We also welcome clients from Europe and other countries.
Passive house is a building standard that is truly energy efficient, comfortable, affordable and ecological at the same time. It's a construction concept that can be applied by anyone and that has stood the test of practice.
A Passive House window for example can reduce heat losses by more than 70 % compared to existing double glazed windows. Passive House buildings not only save money over the long term, but are surprisingly affordable to begin with. "Affordable Luxury" is guiding us to bring comfortable, quiet and luxury life to more and more families.
If you have any new ideas or concepts for the products, please contact us. We are glad to work together with you and finally bring you the satisfied products.
FREQUENTLY ASKED QUESTIONS
What is your delivery time for passive house windows?
It will take about 30 days after receipt of deposit and confirmation of drawings. Customized configurations for passive house windows require an extra 15 days.
What kind of test reports and certifications do you have?

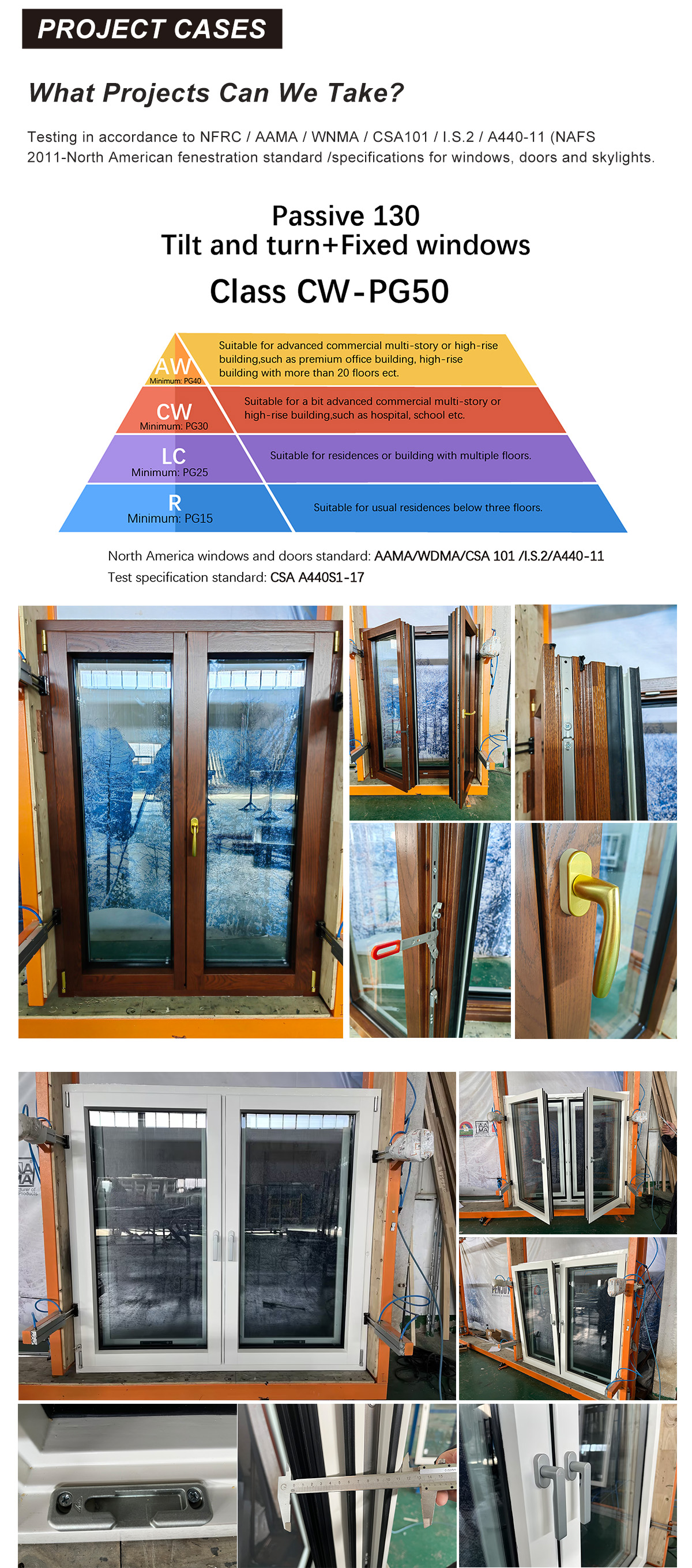

Penjoy has achieved multiple international certifications, including New Zealand standard NZS4211:2008, Australian standard AS2047:2014, and North American standard AAMA/WDMA/CSA/NAFS 2011, alongside PHI and NFRC certifications.
What are the standard sizes and design options available?
Our windows and doors are fully customized. The maximum height of operable windows can reach up to 2100 mm. We provide tailored designs and recommendations based on individual project requirements.
What payment methods are supported?
We accept T/T and Alibaba secure payments. Other payment terms are negotiable according to order specifications.
What is your product warranty policy?
We proudly provide an extensive 10-year quality warranty on our products, backed by strategic hardware partnerships such as Noto.
Can opening styles and frame finishes be customized?
Yes, we support fixed, tilt & turn, turn-only, tilt-only, and hinged door configurations, with aluminum powder coatings (Akzo Nobel) and German Remmers plant-based wood finishes available in extensive RAL palettes.
