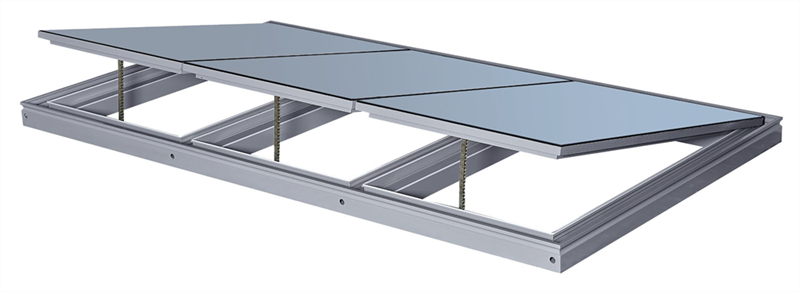

| Product Name | Thermal Insulated Modular Top-hung Skylight |
| Model | MS-188 |
| Screen Mesh | High-transparency, high-density anti-fall diamond mesh |
| Remote Control | Customized wall-mounted or handheld remote control |
| Sealing Gasket | EPDM (ethylene propylene diene monomer) rubber composite gasket |
| Thermal Break | High-quality PA66GF25 thermal break strip |
| Hardware | High-quality customized stainless steel hardware |
| Glass Configuration | 5+12A+5+0.76PVB+5 insulated laminated tempered glass |
| Optional Features |
- LED light strips - Remote Wi-Fi control connecting to smart home systems with voice control - Wind and rain sensors for automatic skylight closure under inclement weather - Fire linkage system connected to fire center and alarms for automatic fire emergency opening - Intelligent screens and built-in sunshades to effectively block insects, UV rays, and heat - Solar battery storage for power supply, enabling skylight operation during power outages |
| Product Advantages |
- Artistic appearance design with hidden motor, simple and elegant style - Seamless laser welding at four corners, achieving first-class waterproof performance - Excellent thermal insulation profiles, energy-saving and environmentally friendly - Safe and reliable aerospace-grade aluminum, customized laminated glass and diamond mesh |

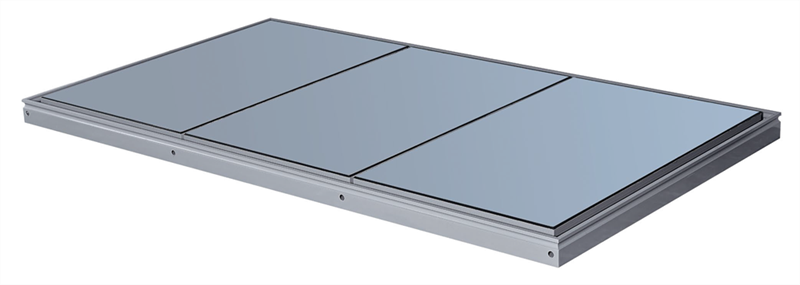

| Product Name | Large-Panel Insulated Modular Top-Hung Skylight |
| Model | MS-278 |
| Frame Dimensions | 100×180mm |
| Profile Wall Thickness | 3.0mm |
| Material Configuration | 6061-T6 Aircraft-Grade Aluminum Alloy |
| Surface Treatment | Electrostatic Powder Coating (Optional Fluorocarbon Coating, Electrophoresis Treatment) |
| Manufacturing Process | Automated Laser Seamless Welding |
| Travel Distance | 300mm |
| Maximum Area | 6㎡ |
| Maximum Width | 5000mm |
| Maximum Length | 3000mm |
| Standard Configuration |
Motor: Custom Hidden IP68 Silent Motor Security Mesh: High-Transparency, High-Density Anti-Fall Security Mesh Remote Control: Customized Wall-Mounted and Handheld Remote Controls Seals: EPDM Ethylene Propylene Diene Monomer (EPDM) Rubber Composite Seals Thermal Break: High-Quality PA66GF25 Thermal Breaks Hardware: Premium Custom Stainless Steel Hardware Glass Configuration: 8+12A+6+1.14PVB+8 Insulated Laminated Tempered Glass |
| Optional Equipment |
- LED Light Strip: Available - Remote Wi-Fi Control: Integration with Smart Home for Voice Control - Rain and Wind Sensor: Automatically Closes Skylight During Rain or Wind - Fire Linkage System: Connects with Fire Alarm Center to Auto-Open Windows in Case of Fire - Smart Insect Screen & Internal Sunshade: Effectively Blocks Insects, UV Rays, and Heat - Solar Battery: Maintains Power Supply During Outages to Ensure Skylight Operation |
| Product Advantages |
- Artistic Large-Size Design: Simple and Elegant Overall Appearance - Hidden Motor: Streamlined and Neat Appearance - Seamless Corner Welding: Grade 1 Waterproof Performance - Excellent Thermal Profiles: Energy Saving and Environmentally Friendly - Safety: Aircraft-Grade Aluminum, Customized Laminated Glass, Security Mesh Screens |

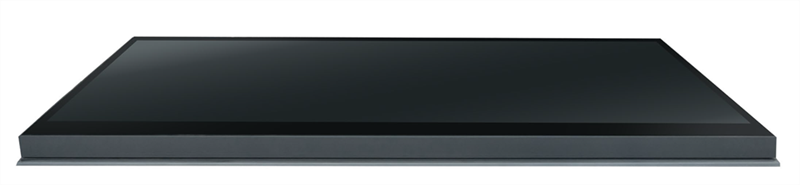

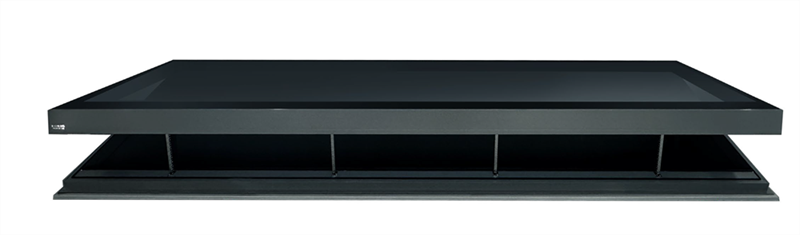

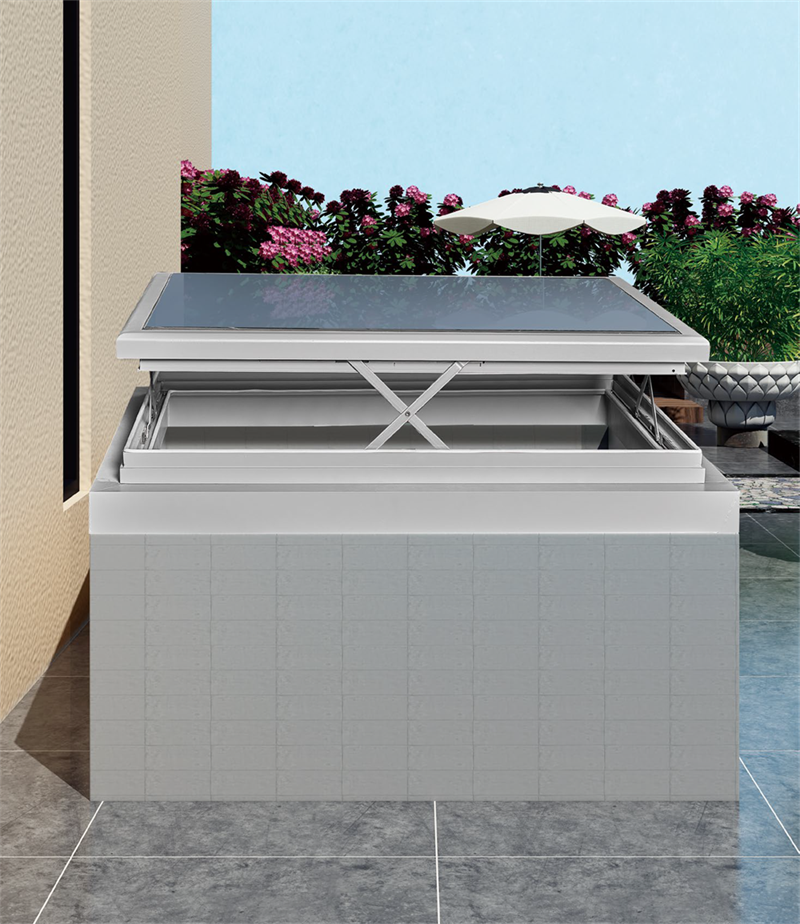

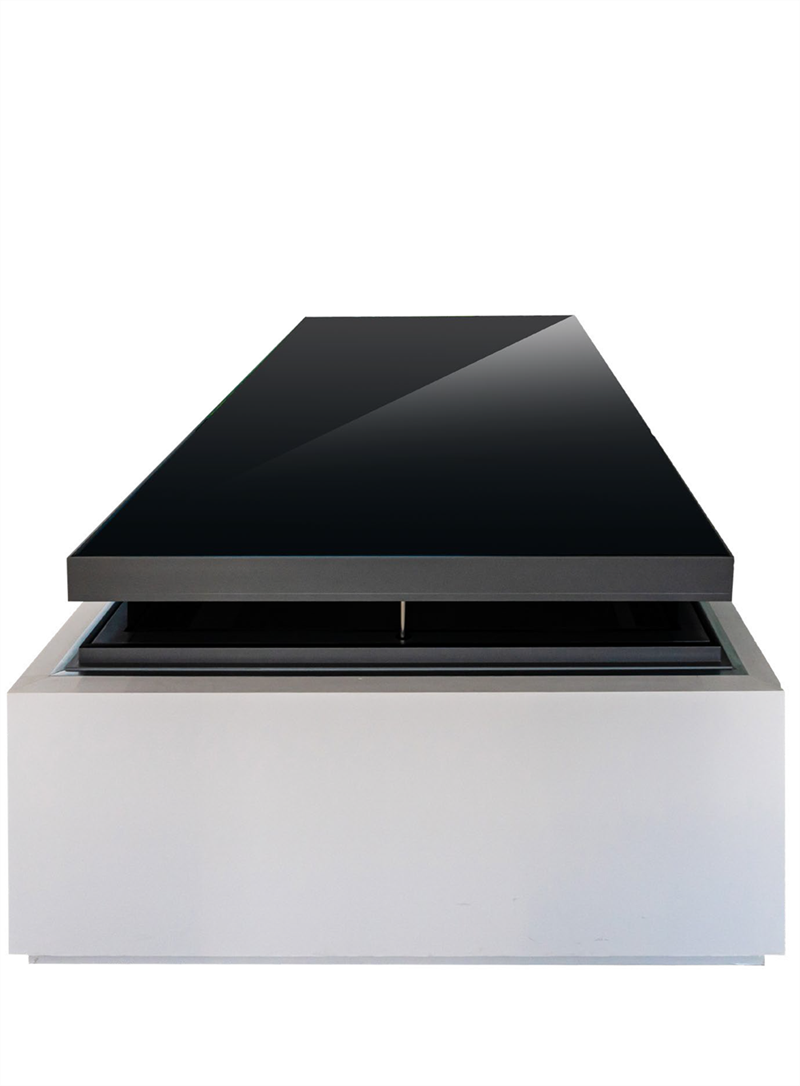

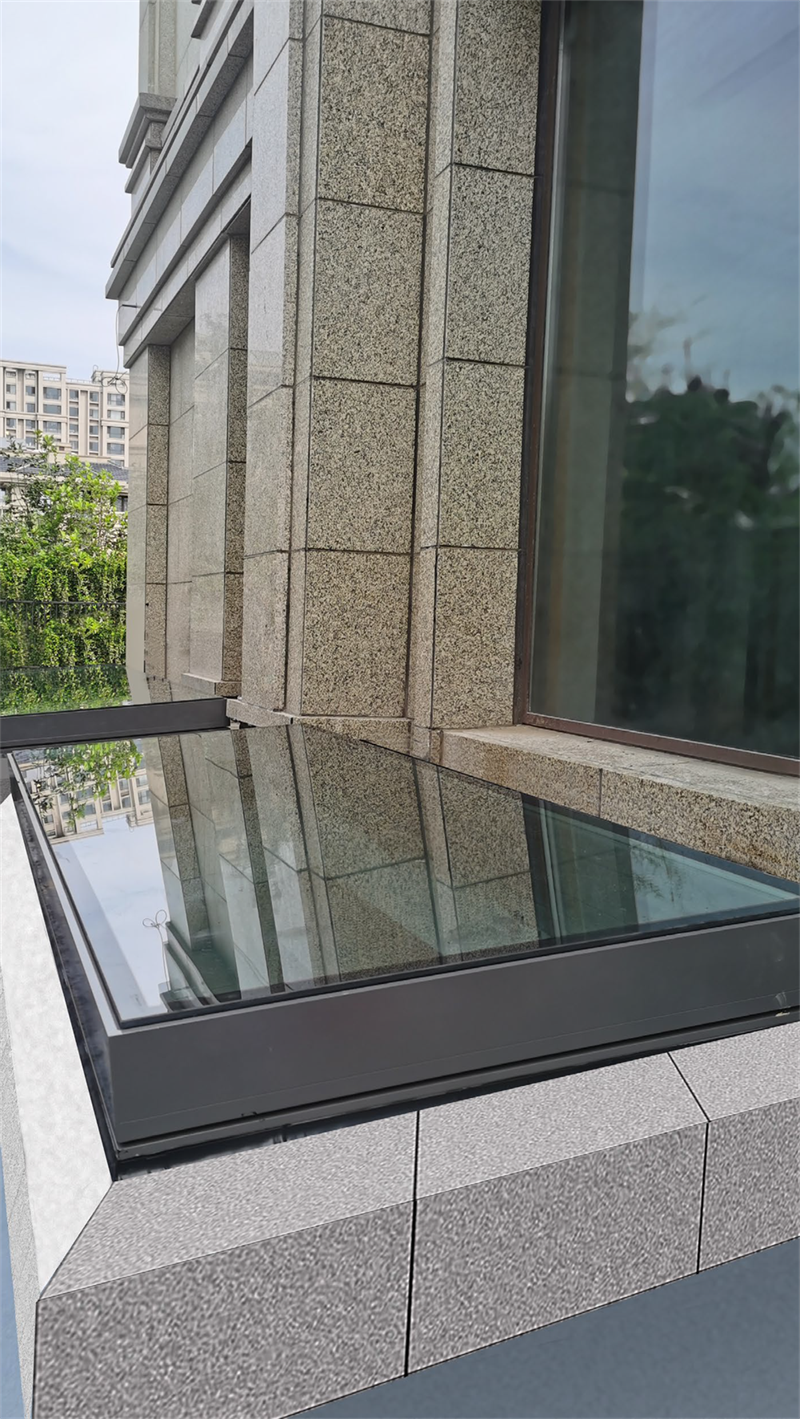

| Product Name | Insulated Modular Lift Skylight |
| Model | MS-298 |
| Application Scenarios | Roof, Courtyard Skylight |
| Frame Dimensions | 130x360mm |
| Profile Wall Thickness | 3.0mm |
| Material Configuration | 6061-T6 Aircraft-Grade Aluminum Alloy |
| Surface Treatment | Electrostatic Powder Coating (Optional Fluorocarbon Coating, Electrophoresis Treatment) |
| Manufacturing Process | Automated Laser Seamless Welding |
| Travel Distance | 200mm |
| Maximum Area | 6m² |
| Maximum Width | 5000mm |
| Maximum Length | 3000mm |
| Standard Configuration |
Motor: Custom Hidden IP68 Silent Motor Security Mesh: High-Transparency, High-Density Anti-Fall Security Mesh Remote Control: Customized Wall-Mounted and Handheld Remote Controls Glass Configuration: 5+12A+5+0.76PVB+5 Insulated Laminated Tempered Glass Seals: EPDM Ethylene Propylene Diene Monomer (EPDM) Rubber Composite Seals Thermal Break: High-Quality PA66GF25 Thermal Breaks Hardware: Premium Custom Stainless Steel Hardware |
| Optional Equipment |
- LED Light Strip: Available - Remote Wi-Fi Control: Integration with Smart Home for Voice Control - Rain and Wind Sensor: Automatically Closes Skylight During Rain or Wind - Fire Linkage System: Connects with Fire Alarm Center to Auto-Open Windows in Case of Fire - Smart Insect Screen & Internal Sunshade: Effectively Blocks Insects, UV Rays, and Heat - Solar Battery: Maintains Power Supply During Outages to Ensure Skylight Operation |
| Product Advantages |
- Artistic Large-Size Design: Simple and Elegant Overall Appearance - Hidden Motor: Streamlined and Neat Appearance - Seamless Corner Welding: Grade 1 Waterproof Performance - Excellent Thermal Profiles: Energy Saving and Environmentally Friendly - Safety: Aircraft-Grade Aluminum, Customized Laminated Glass, Security Mesh Screens |
